Performance Tests 2
E4416A/E4417A Power Meters Service Guide 45
7 Turn on the power reference:
Press
,
8 Switch to the power sensor's lower range:
Press .
Scroll through the Range values by pressing . Select a value of
LOWER.
A pop- up window is displayed.
Press .
9 Verify that the display reads 30 dBm ±1 dB. Record the reading in
Table 2- 6.
10 Switch to the power sensor's upper range:
Press .
Move to the Range parameter using the up/down arrow keys.
Scroll through the Range values by pressing . Select a value of
UPPER.
Press .
11 Verify that the display reads 30 dBm ± 1 dB. Record the reading in
Table 2- 6.
12 Turn on the power reference:
Press
,

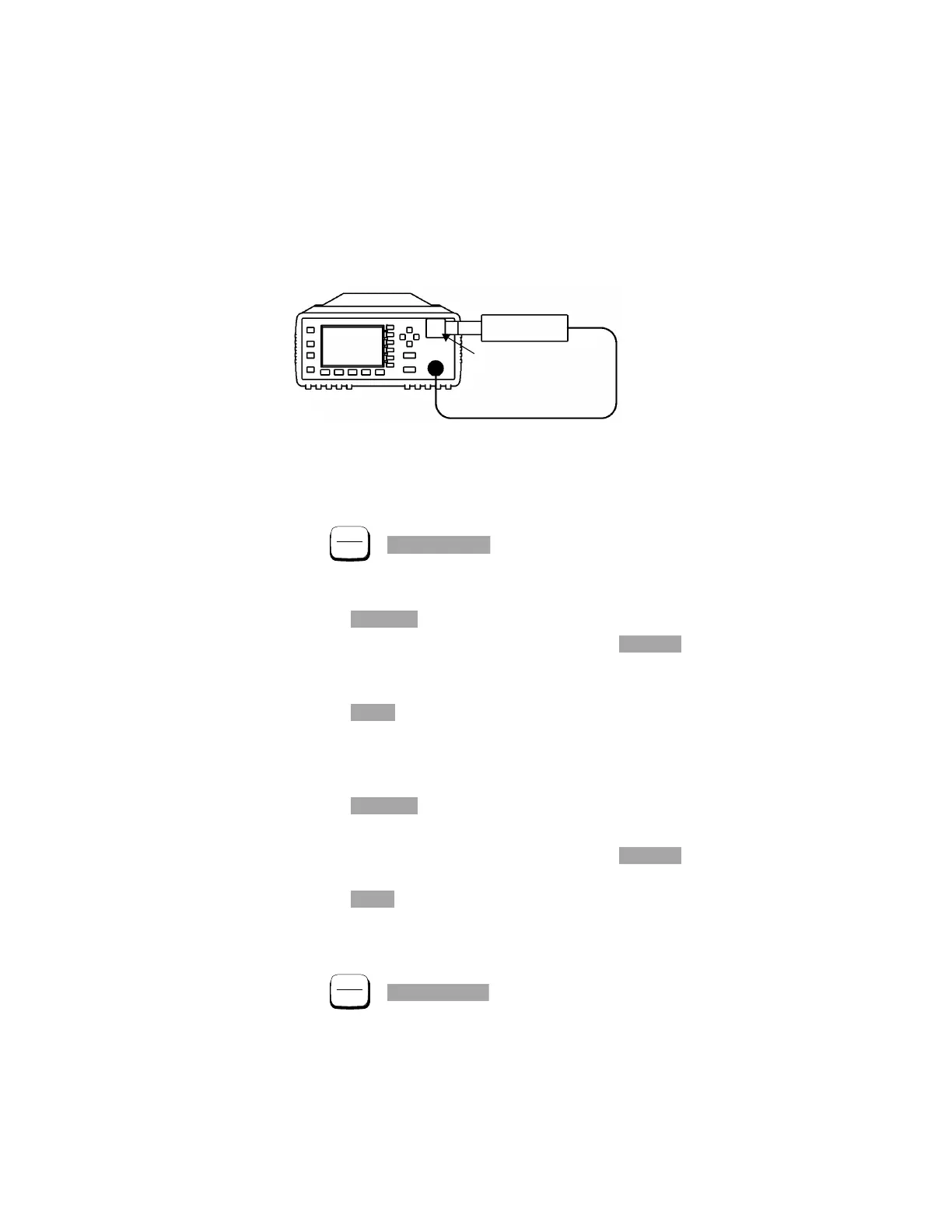

Figure 2-8 Sensor (Average Path) Functional Test Setup With Attenuator
Power Meter
CHANNEL A
Power Sensor
Power sensor cable
30 dB attenuator
Power Ref On
Channel
Change
Done
Channel
Change
Done
Power Ref Off
