88 Chapter 4
Replacement Procedure
Angle (Fan Assembly) Replacement
Angle (Fan Assembly) Replacement
Tools Required
• torque screwdriver, T15 and T20
• torque screwdriver, T10 (set to 9 in-lb)
• box torque wrench, 9/16 inch
Removal Procedure
Refer to Figure 4-18 for this procedure.
Step 1. Remove the Outer Cover as described in “Outer Cover Replacement” on page 54.
Step 2. Remove the Fan Assembly as described in “Fan Assembly Replacement” on page 86.
Step 3. Remove the two TORX T10 screws (item 1) fastening the Angle for Fan Assembly.
Step 4. Lift the Angle (item 2).
Replacement Procedure
Step 1. Reverse the order of the removal procedure.
NOTE Set a torque to 9 in-lb for torque driver when fasten the TORX T10 screws (item 1).

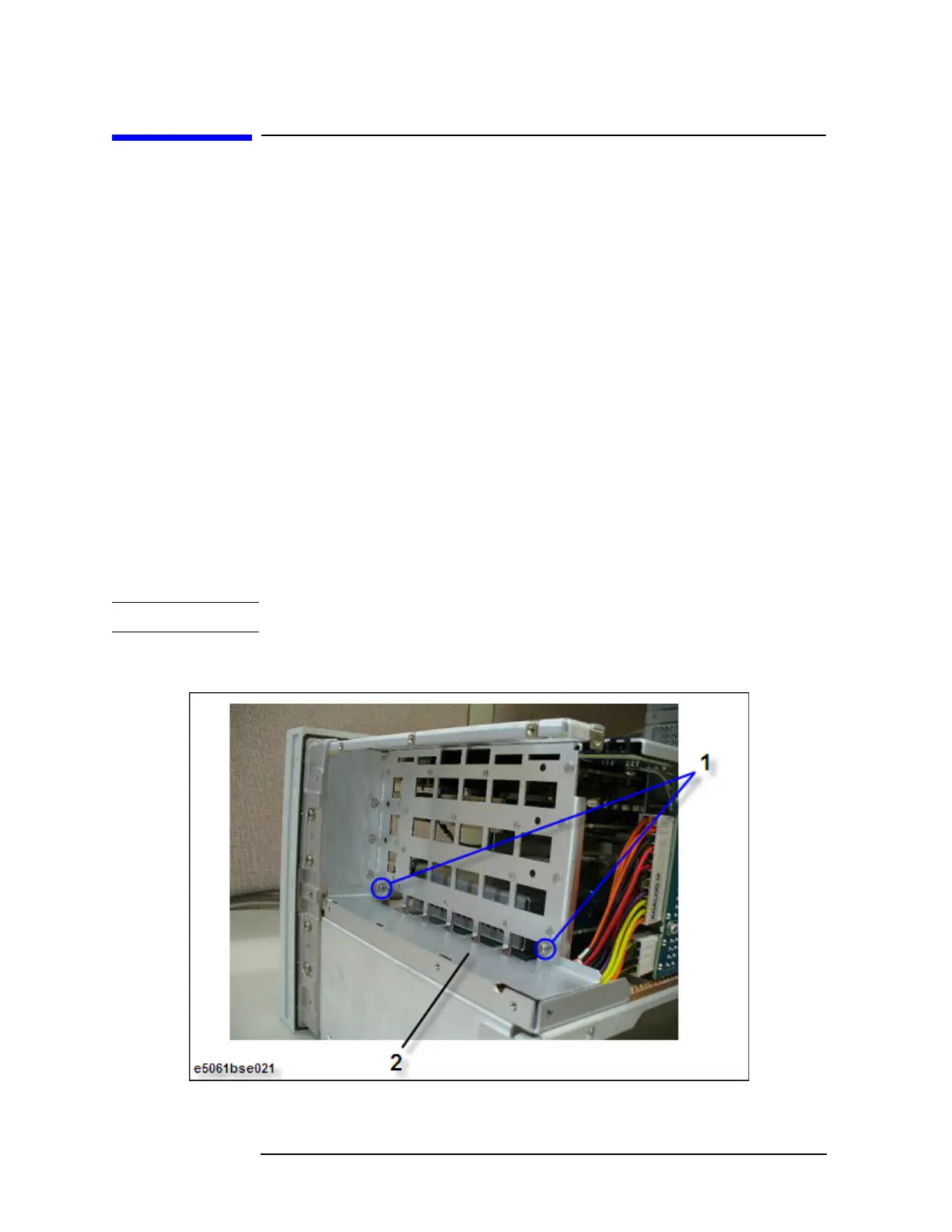

Figure 4-18 Angle (for Fan Assembly) Removal
