Chapter 3 43
Quick Start Guide
Names and Descriptions of E5061A/E5062A parts
3. Quick Start Guide
Names and Descriptions of E5061A/E5062A parts
This section describes the names and outlines of the E5061A/E5062A parts on the front
panel and display area. For more information, see Chapter 2 “Overview of Functions” in
theE5061A/E5062A User’s Guide. This section also describes three operation methods
using the keys, mouse, and touch panel (Option 016).
Front Panel
The names and short descriptions of the E5061A/E5062A parts on the front panel are as
shown as follows.

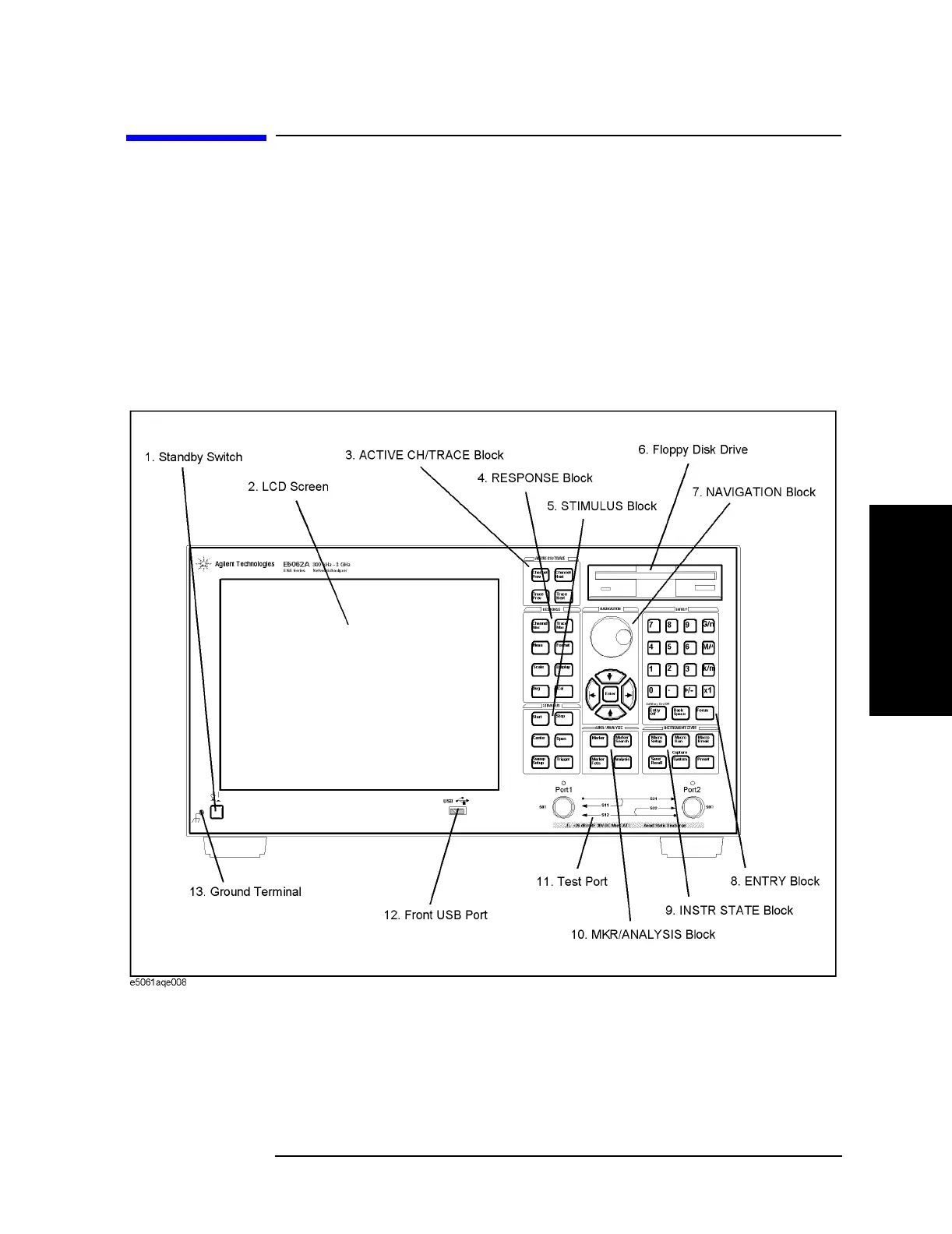

Figure 3-1 Front Panel
