Chapter 3 55
Quick Start Guide
Measurement Example of a Bandpass Filter
3. Quick Start Guide
STEP 3. Connecting the Device Under Test(DUT)
Step 1. Connect t the DUT to the E5061A/E5062A. (See Figure 3-15.)

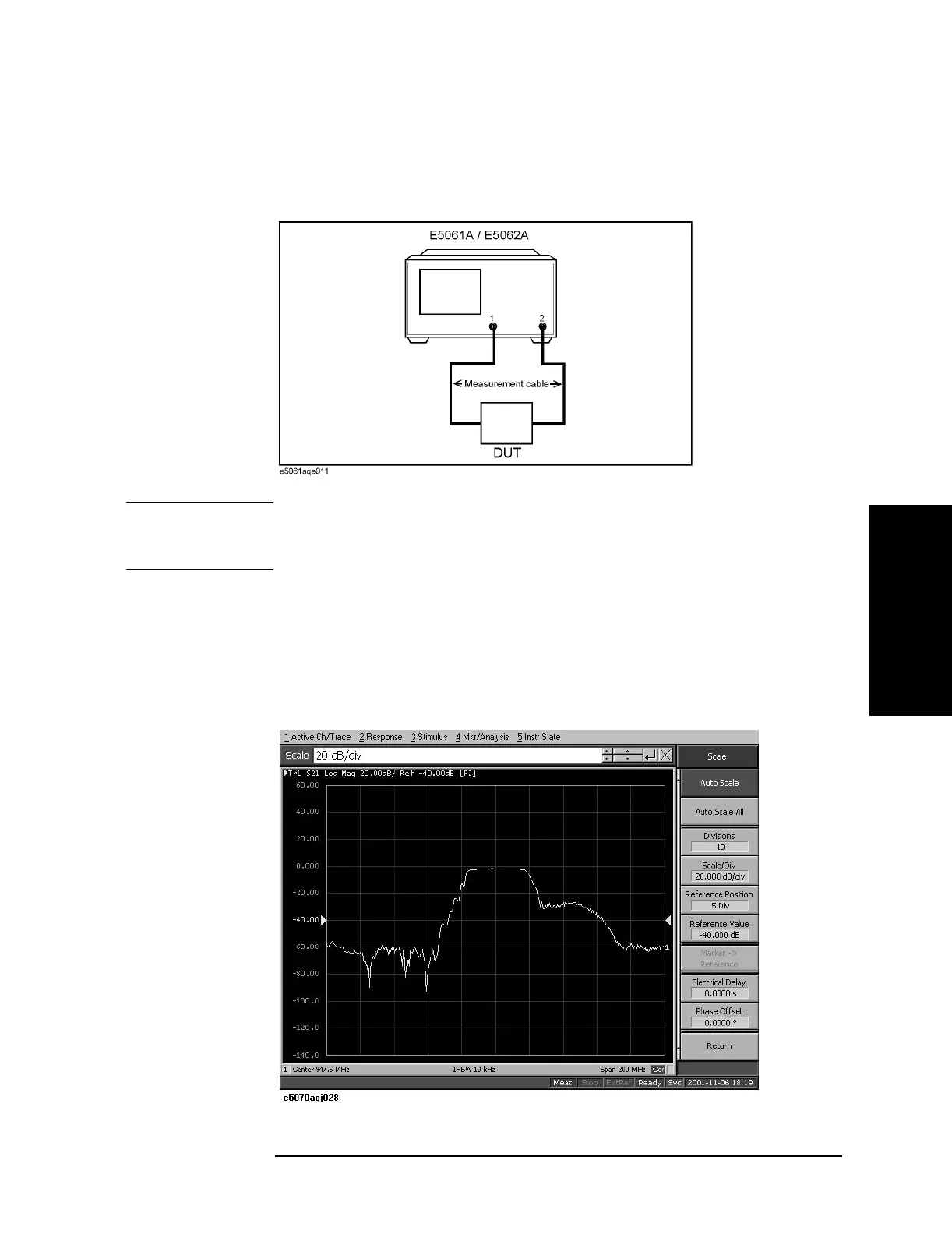

Figure 3-15 Connecting the DUT
NOTE Applying the setting value for the power level (-5 dBm) may destroy some DUTs. Should
this occur, first select the proper power level and then connect the DUT to the
E5061A/E5062A.
Step 2. Set the appropriate scale by executing the auto scale. (See Figure 3-16.)
•
[Scale] - Auto Scale
You can also adjust the scale by entering arbitrary values in the Scale/Div button,
Reference Position button, and Reference Value.
Figure 3-16 S21 trace after executing the auto scale
