Chapter 3 53
Quick Start Guide
Measurement Example of a Bandpass Filter
3. Quick Start Guide
STEP 2. Calibration
To turn the error correction ON, set the calibration type to the full 2-port calibration and
measure the calibration data.
For details about calibration, see Chapter “Calibration” in the E5061A/E5062A User’s
Guide. This example is based on the analyzer with a 50 Ω S-parameter test set (Option
250).
Step 1. Select the calibration kit suitable for the measurement cable. In this measurement example,
Calibration Kit 85032F is selected.
•
[Cal] - Cal Kit - 85032F
Step 2. Set the calibration type to the full 2-port calibration.
•
[Cal] - Calibration - 2-Port Cal
Step 3. Connect the OPEN standard (included in the calibration kit) to the other end of the
measurement cable that is connected to the test port 1 as shown in Figure 3-13, and
measure the open calibration data at the test port 1. After measuring the open calibration
data, symbol √ is displayed to the left of the
Port 1 Open button.
• [Cal] - Calibration - 2-Port Cal - Reflection - Port1 Open
In the same way, measure the calibration data for the SHORT/LOAD standards at the test
port 1.

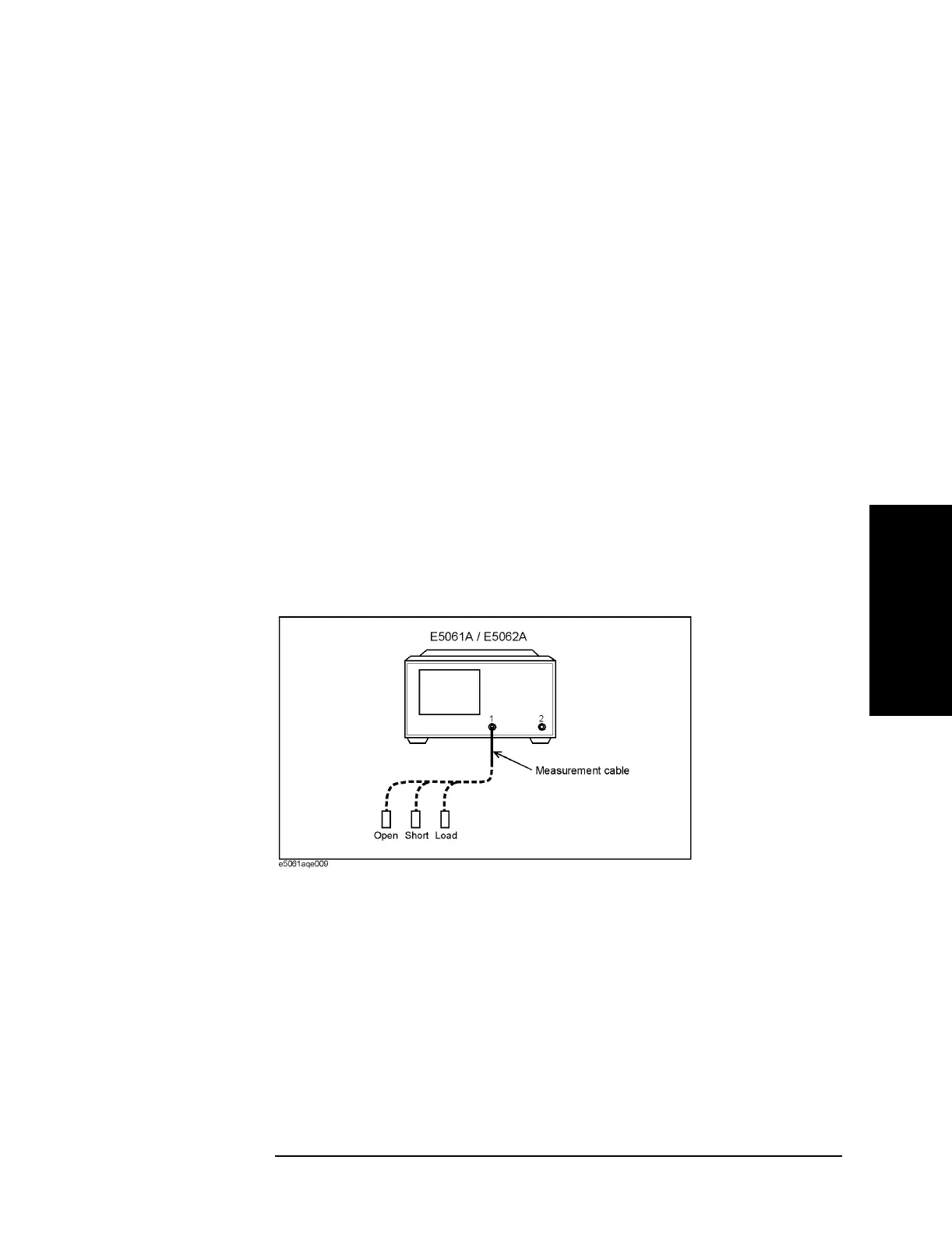

Figure 3-13 Connecting the OPEN/SHORT/LOAD standards
Step 4. In the same way as described above, measure the calibration data for the
OPEN/SHORT/LOAD standards at the test port 2.
