Agilent Technologies G4204A User Manual

1290 Infinity Quaternary Pump User Manual 169
Maintenance
9

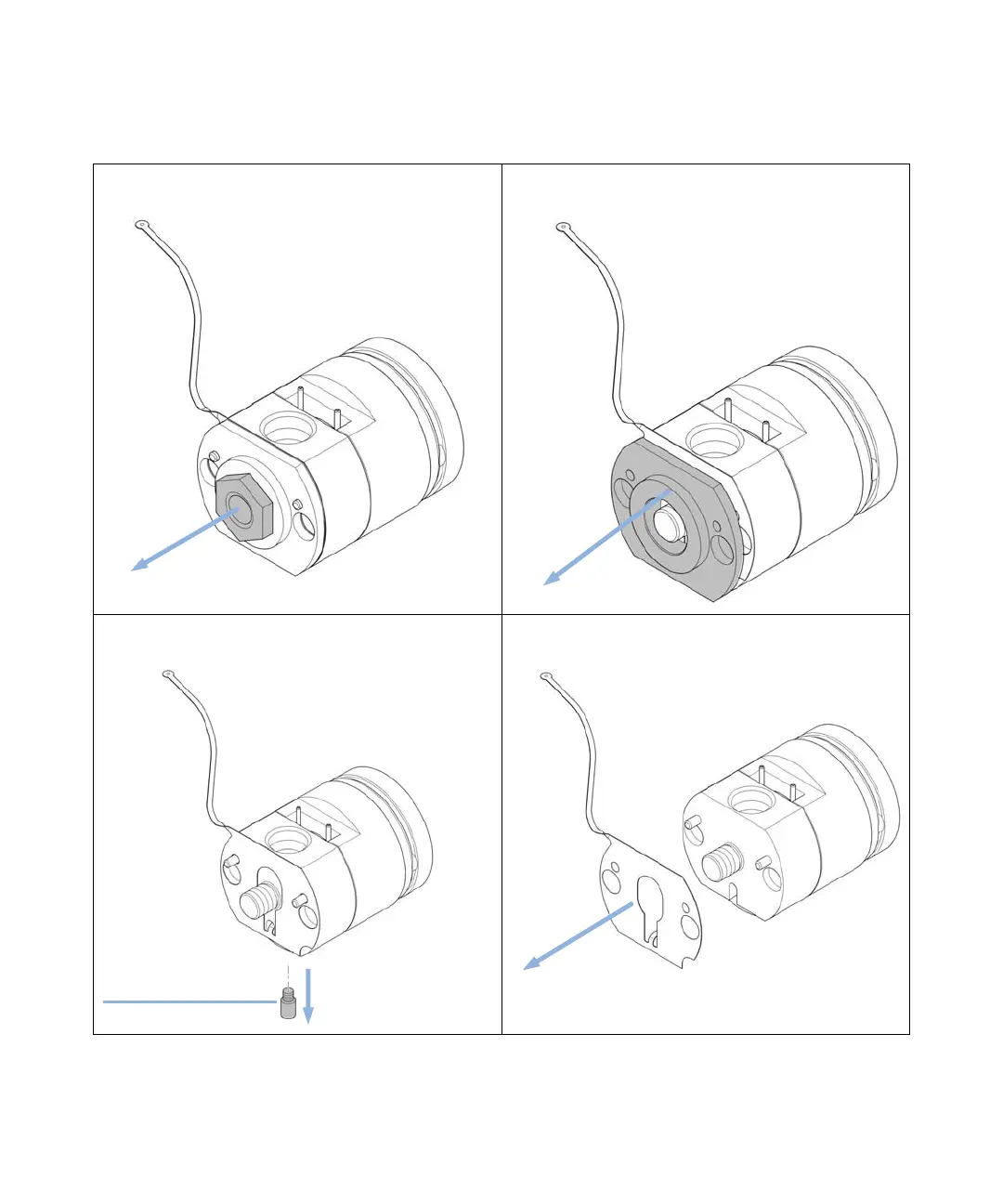

Replacing the Heat Exchanger
1
Remove the 19 mm screw at the front of the secondary
pump head.
2 Remove the front plate.
3 Remove the screw at the bottom of the pump head. Do
not drop the golden spacer fitting.
4 Lift out the heat exchanger.
HXgZl

Agilent Technologies G4204A Specifications

General

Brand	Agilent Technologies
Model	G4204A
Category	Laboratory Equipment
Language	English
