7 General Maintenanceď€
To Assemble an EI SS or Inert Source
210 5977B Series MSD Operating Manual
Do not overtighten the interface socket. Overtightening could strip the threads.

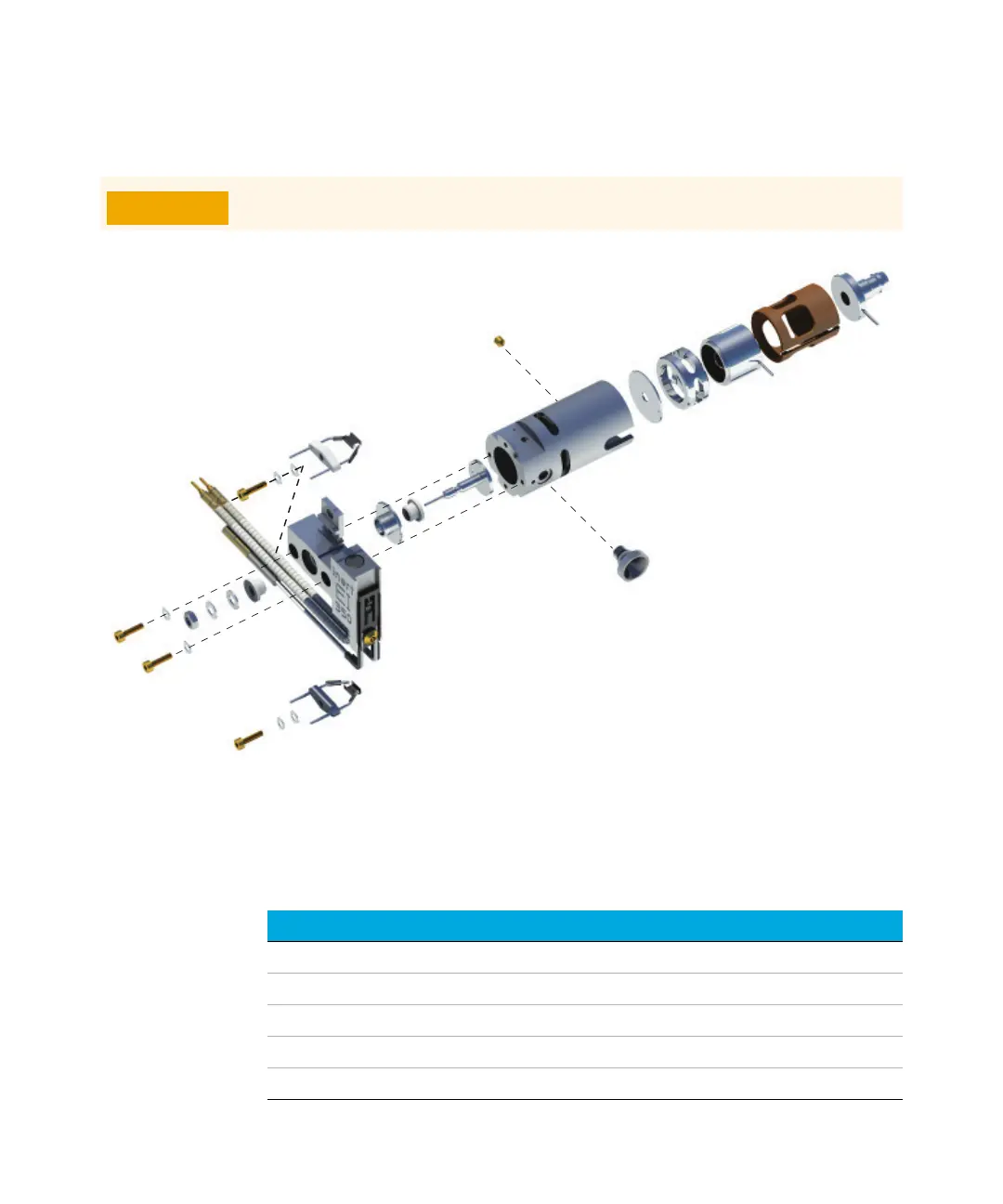

Figure 67. Assembling the EI standard or EI Inert source
1
2
8*
15
151515
14
1414
2*
2*
16
1616
8*
12*
12*12*
10
2*
8*
8*
7*
17
18
3
8
8
7
12
13
4
6
5
11
9
Table 22 Parts list for the EI standard or EI Inert source (Figure 67)
Item number Item description Part number (SSL) Part number (Inert)
1 Gold plated set screw G1999-20022 G1999-20022
2 Gold plated screw G3870-20021 G3870-20021
3 Interface socket G1099-20136 G1099-20136
4 Source body G1099-20130 G2589-20043
5 Drawout cylinder G1072-20008 G1072-20008
