1260 Infinity II Flexible Pump User Manual 165
8Maintenance
Remove the Jet Weaver
Remove the Jet Weaver
Tools required p/n Description
8710-0510 Open-end wrench 1/4 — 5/16 inch
8710-0899 Screwdriver Pozidrive Shaft
5023-2502 Hex driver SW-6.35, slitted
Parts required p/n Description
0100-1259 Plastic fittings
G4204-04002 Cover RFID Tag
Metal lid for Jet Weaver
Preparations
• Select Do not use mixer in ChemStation.
• Switch off the pump at the main power switch.

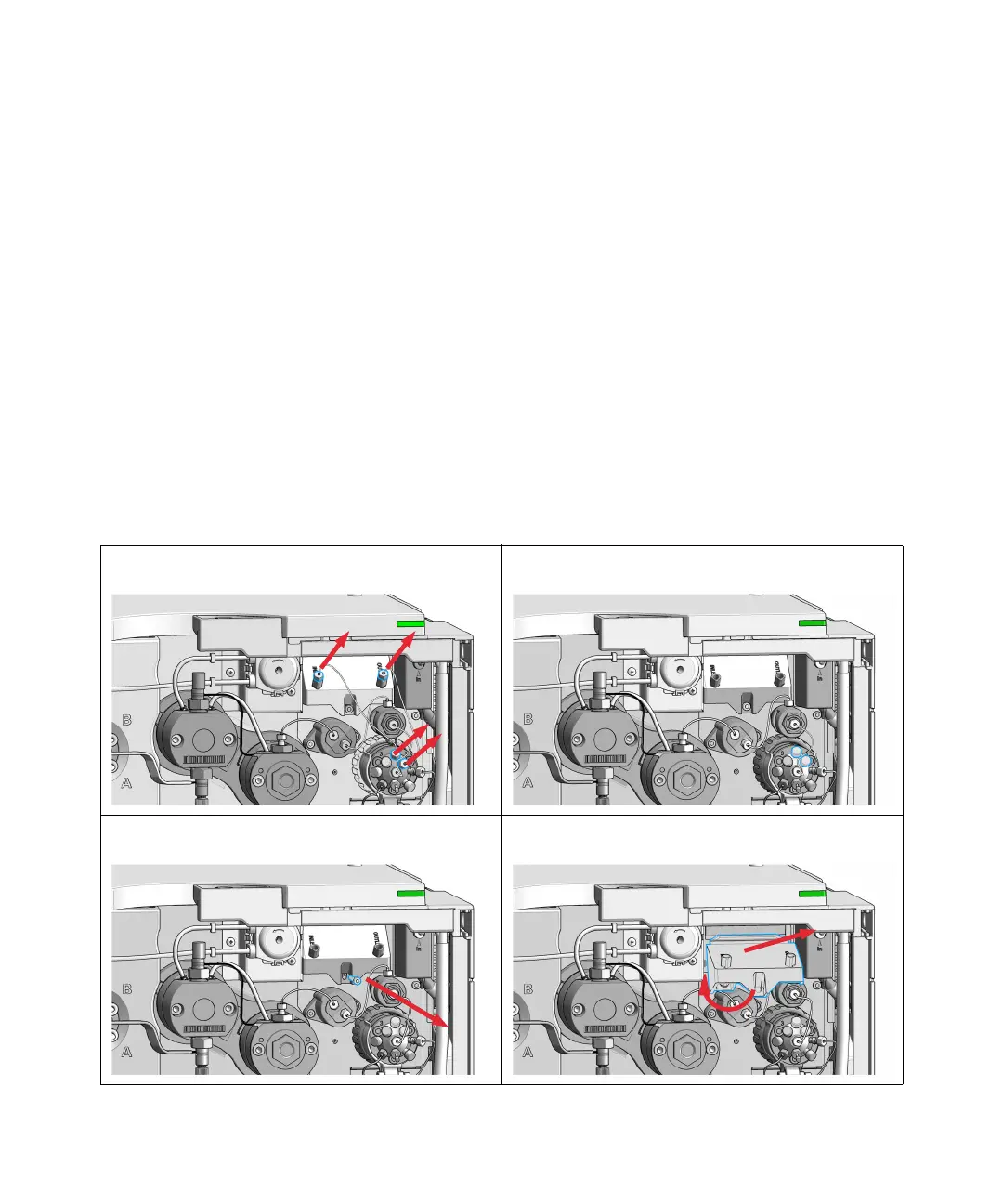

1 Remove capillary connections from the Jet Weaver to
the Multipurpose Valve.
2 Plug the valve ports 1 and 2 with two plastic fittings.
3 Open the screw which fixes the Jet Weaver to the front
panel.
4 Lift up the Jet Weaver (1) and pull it out of the front
panel (2).
To Next Page
