12 LAN Configuration
What You Have To Do First
1260 Infinity II Flexible Pump User Manual 282
What You Have To Do First
The module has an on-board LAN communication interface.
1 Note the MAC (Media Access Control) address for further reference. The MAC
or hardware address of the LAN interfaces is a world wide unique identifier.
No other network device will have the same hardware address. The MAC
address can be found on a label at the rear of the module underneath the
configuration switch (see Figure 29 on page 282).
Figure 28 MAC label
2 Connect the instrument's LAN interface (see Figure 29 on page 282) to
• the PC network card using a crossover network cable (point-to-point) or
• a hub or switch using a standard LAN cable.

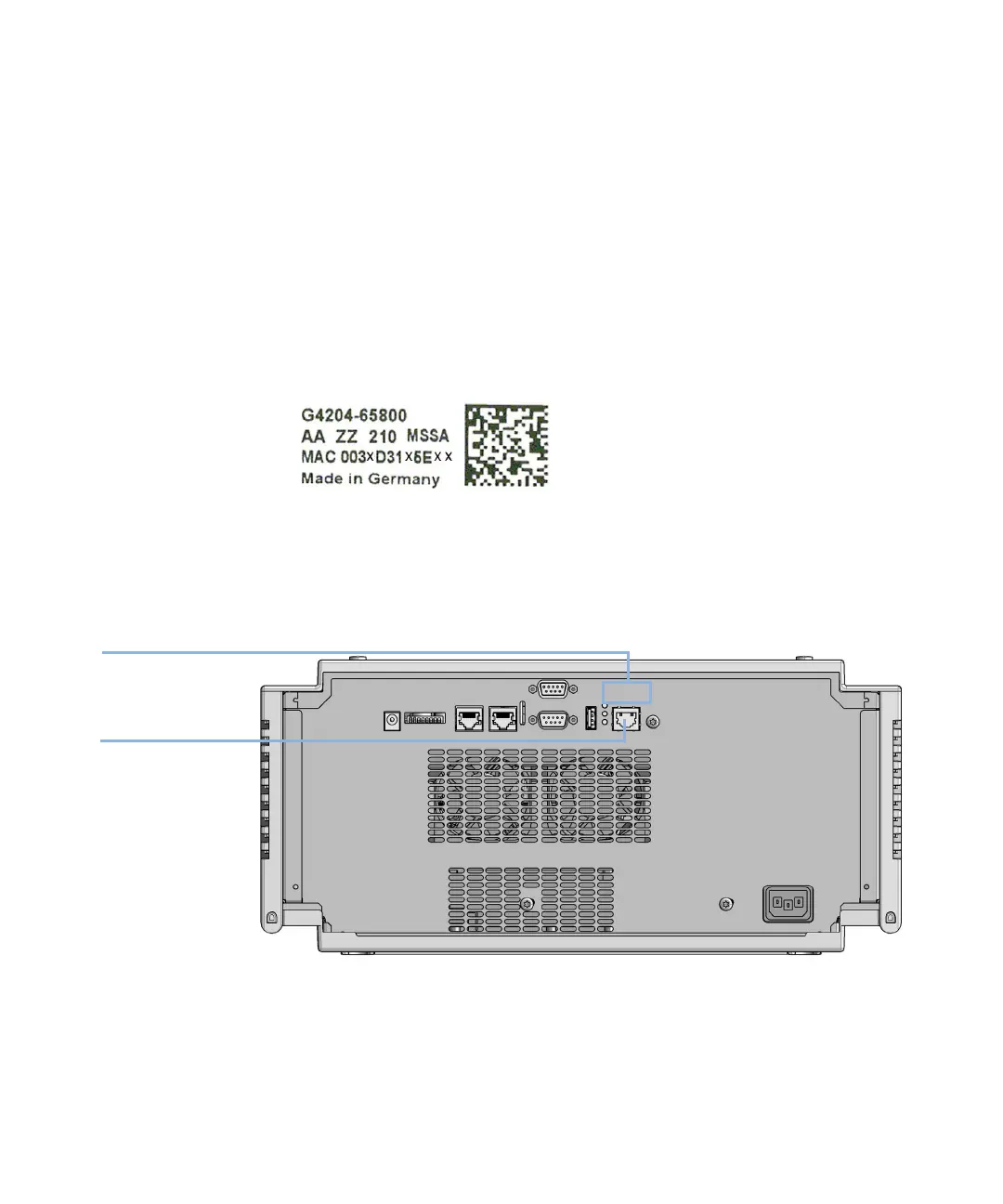

Figure 29 Location of LAN interfaces and MAC label
Part number of the pump main board
Revision code, vendor, year and week of assembly
MAC address
Country of origin
