1260 Infinity II Flexible Pump User Manual 73
3Using the Module
Setting up the Pump with the Instrument Control Interface
The Pump User Interface (Dashboard Panel)
Module Graphic

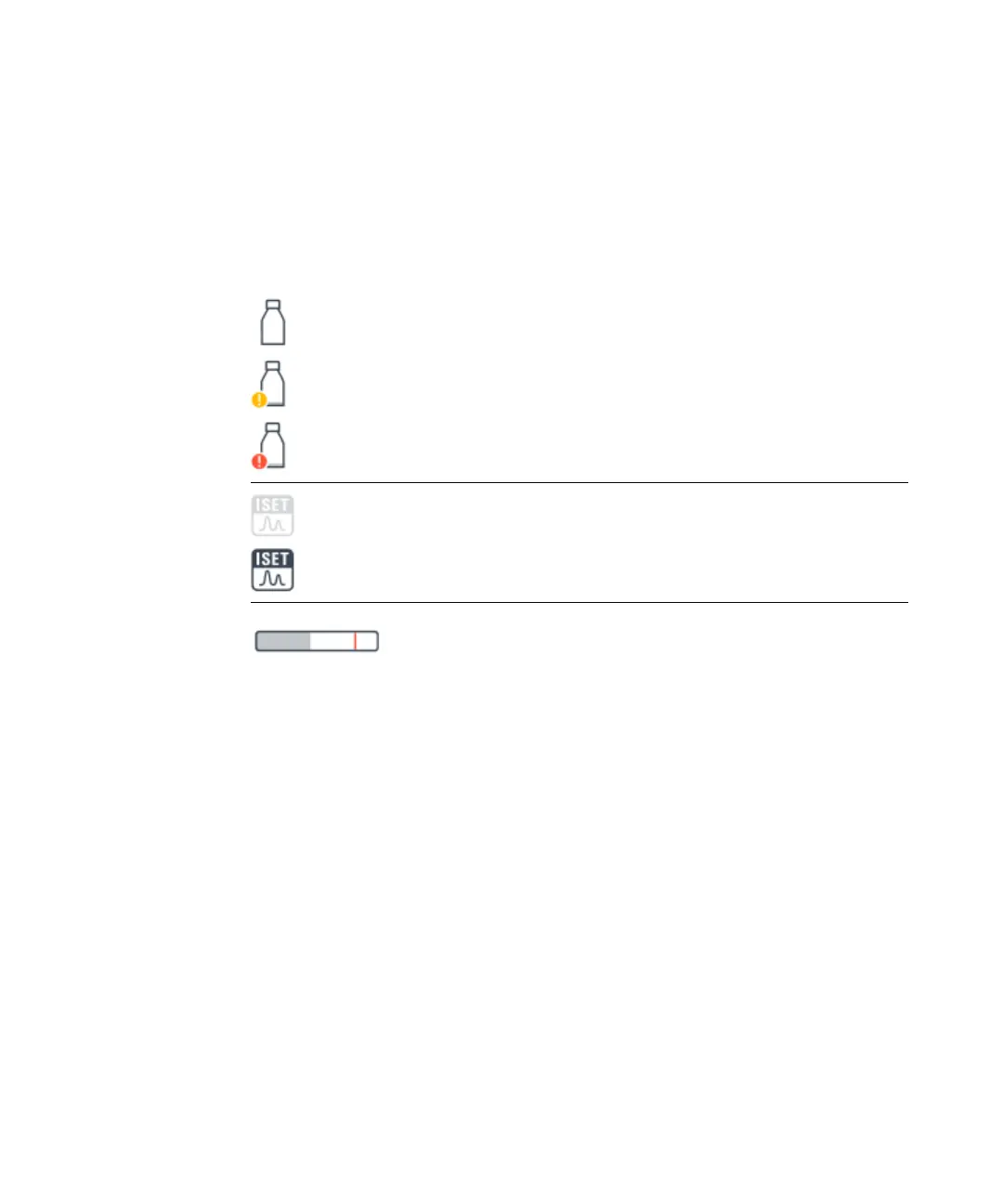

The items in the pump graphic have the following meaning and function:
The current solvent flow rate (in mL/min) is displayed above the pressure display.
The level of solvent in the bottle is denoted by the gray area;
when the solvent level falls below the specified volume, the area
turns yellow; when the bottle is empty, the area turns red.
Clicking on the solvent bottle displays the Bottle Fillings dialog
box. The tooltip for the bottle shows the solvent name.
Indicates that the ISET option is installed but with no active
method (light gray) or installed and active (dark gray).
The pressure setpoints. The red line shows the current
maximum pressure limit; the gray area shows the current
pressure (also shown as text).
