1260 Infinity II Flexible Pump User Manual 169
8Maintenance
Replace the Seal Wash Pump Cartridge
Replace the Seal Wash Pump Cartridge
When
In case of seal wash pump wear
Parts required p/n Description
5065-4445 Peristaltic pump with PharMed tubing
5065-9978 Tubing, 1 mm i.d., 3 mm o.d., silicone, 5 m
Preparations
Remove the flow connections from and to the seal wash pump.

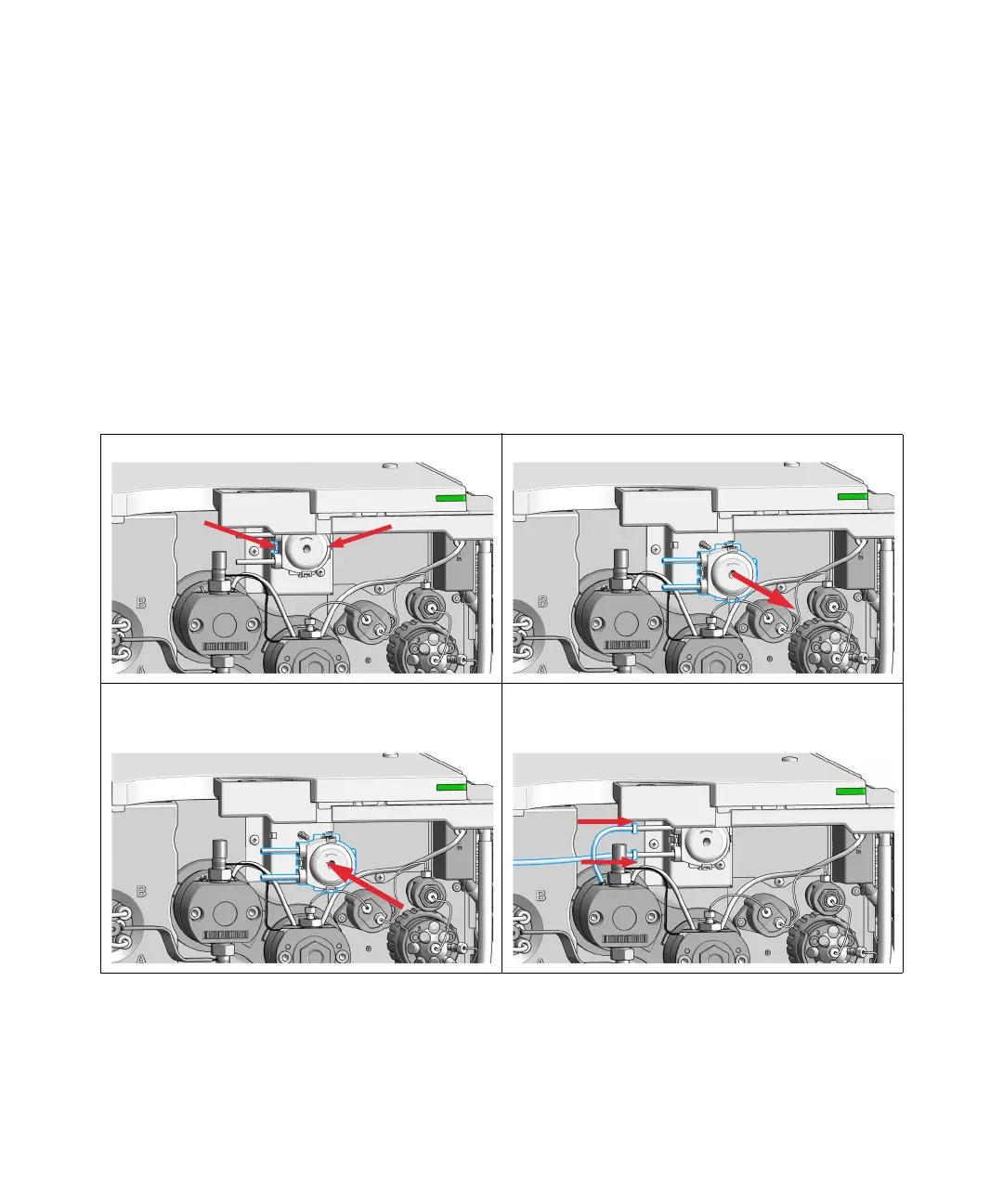

1 Press the clips. 2 Pull the pump to the front.
3 Insert the pump clips to the holes in the module
housing.
4 Fix the seal wash tubings to the peristaltic pump inlet
(1) and from the peristaltic pump outlet to the primary
pump head inlet (2).
