Agilent Technologies G7104A User Manual

8Maintenance

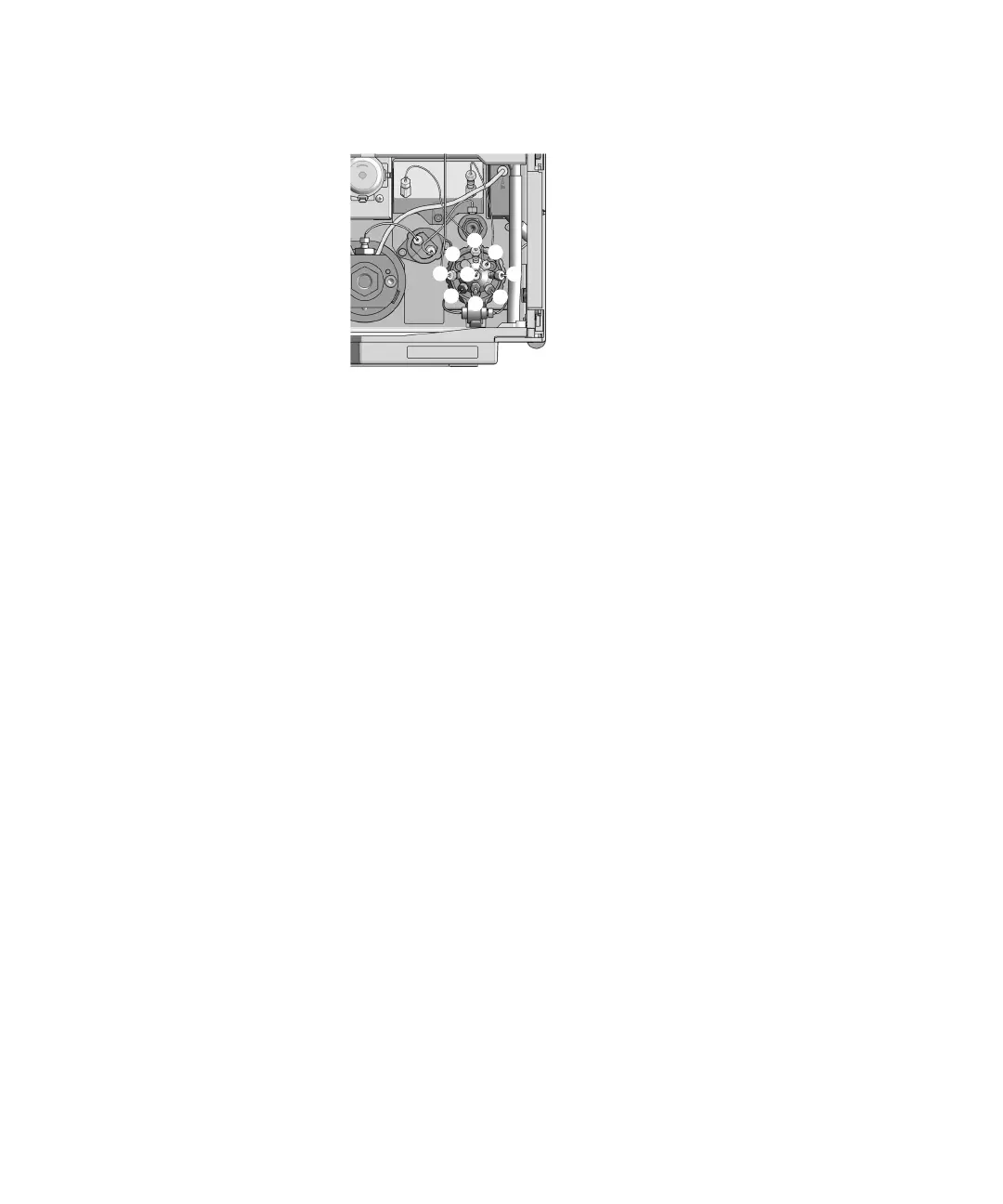

Replace the Multipurpose Valve
1260 Infinity II Flexible Pump User Manual 216
The central (C) port is connected to the outlet of the filter outlet.
• Port 1 is connected to the outlet of the optional Jet Weaver
• Port 2 is connected to the inlet of the optional Jet Weaver
• Port 3 is blocked by a blank nut (plastic)
• Port 4 is connected to the system (typically multisampler)
• Port 5 is connected to the outlet of the optional inline filter
• Port 6 is blocked by a blank nut (SST/Bio-Compatible)
• Port 7 is connected to the waste capillary
• Port 8 is connected to the inlet of the optional inline filter
Block unused ports with blank nuts.
If the optional inline filter is not installed, connect ports 5 and 8 with a capillary
(Capillary ST 0.17 x 120 mm, SLV/SV (5067-5416) or Capillary MP35N 0.17 x
120 mm SI/SX (5500-1284)).
If the optional Jet Weaver is not installed, connect ports 1 and 2 with a capillary
(Capillary ST 0.17 mm x 130 mm SX/S (5500-1253) or Capillary MP35N 0.17 mm
x 130 mm SI/SX (5004-0041)).
1
2
3
4
5
6
7
8
C
