Agilent InfinityLab LC Series Diode Array Detectors User Manual 47
3 Using the Module
Detector Control Settings
Detector Control Settings

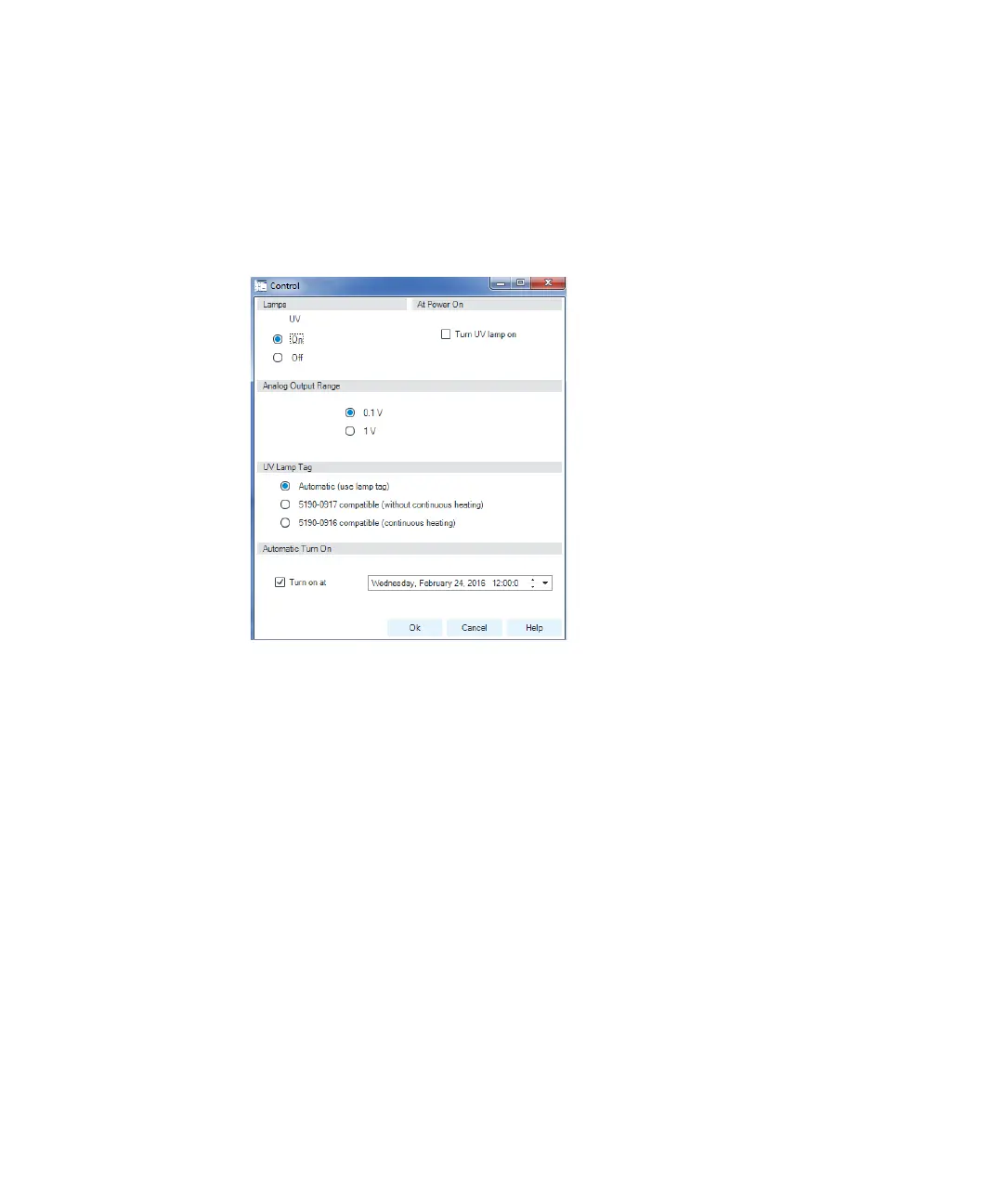

The figure shows the default settings.
• Lamps: can be turned ON/OFF.
• Analog Output Range: can be set to either
100 mV or 1 Vfull scale, for additional settings
see Analog Output (under “Method Parameter
Settings” on page 48).
• UV Lamp Tag
• Automatic detects a lamp with RFID tag. If
no RFID tag lamp is used, “UV lamp not
ready” is displayed and it cannot be
ignited. A compatible mode has to be
selected based on the used lamp; see
Non-RFID-tag lamp information below.
• Manual (by PN) uses the selected “heat-
ing” mode. This mode can also be used
when the RFID tag of the standard lamp
(Long-life Deuterium lamp (8-pin) with
RFID tag (5190-0917)) is not recognized
(defect RFID tag or reader).
• Non-RFID-tag lamp: In case a
non-RFID-tag lamp is used, the user inter-
face will show this when selecting a com-
patible mode. You may operate the
detector outside of the guaranteed speci-
fication. The correct selection is import-
ant for optimal performance and lifetime.
• At Power On: automatic lamp-on at power on.
• Automatic Turn On: automatic detector power
on.
