Installation

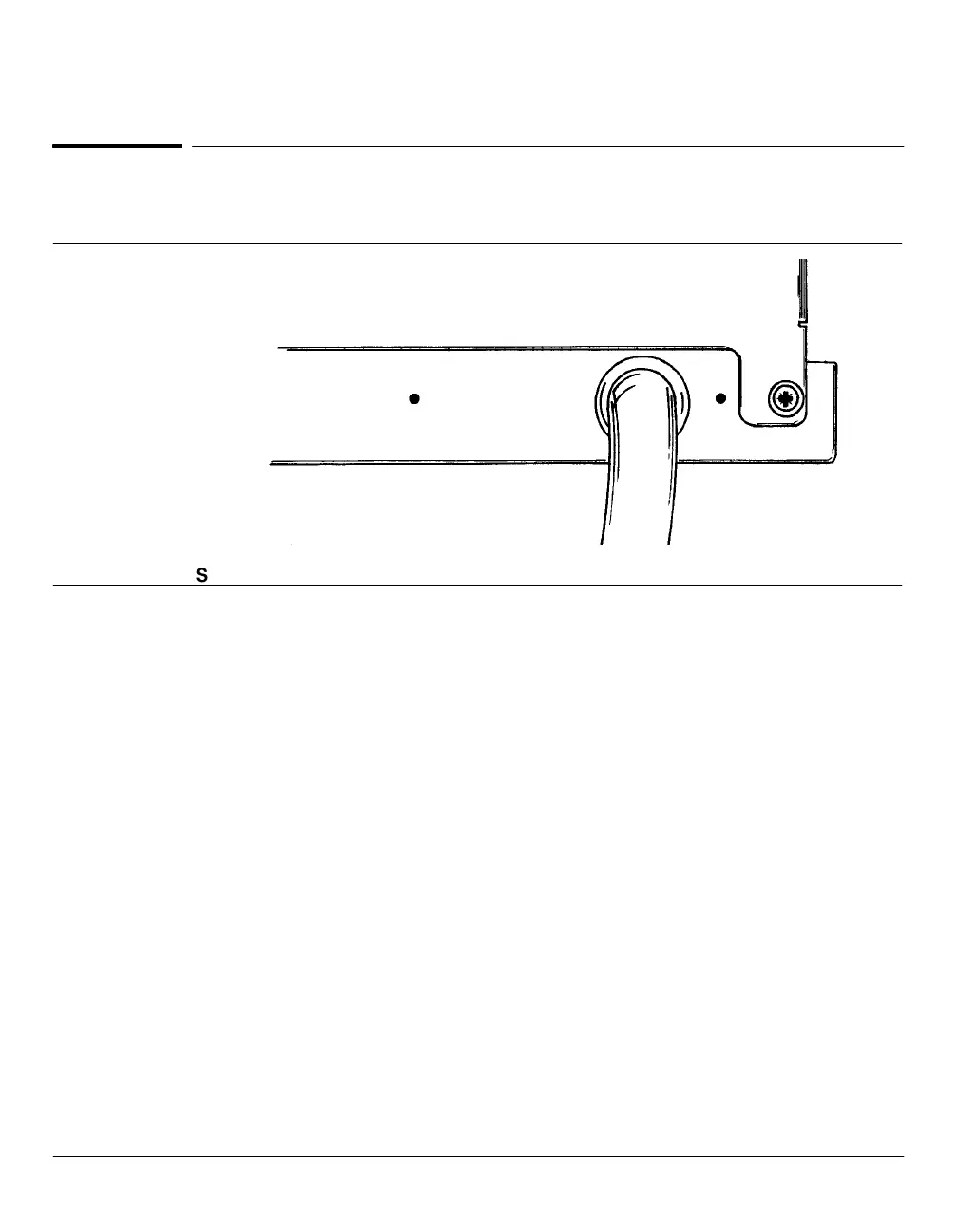

Connecting power line cord
35
Connecting power line cord
INTERNAL
FUSE
2200
VA MAX
120V
+5% -10% 47.5-63Hz
LINE TO NEUTRAL
!
LINE
Source Line Voltage Label (Typical)
Voltage and grounding
The source voltage and load rating to be supplied is marked on a label
attached at the rear of the instrument. Operating voltage is configured
according to the original power option ordered.
To protect personnel, instrument panels and cabinet are grounded
through the three•conductorpower line cord, in accordance with
International Electrotechnical Commission (IEC) requirements.
The instrument must be operated from a receptacle having its ground
contact connected to a suitable earth ground. Proper receptacle grounding
should be verified before connecting the power line cord.
