Installation
Connecting signal output cables
44
Part No. Use Length
03394-60560 HP 3394/96A Integrator/Controller 2 m
05890-61060 HP 3392A Integrator/Controller 2 m
05890-61050 HP 3390A Integrator 2 m
05890-61070 HP 3350 Series LAS 2 m
05890-61080 General Purpose 2 m
Available Remote Start/HP 5890 Ready Cables
Remote receptacle

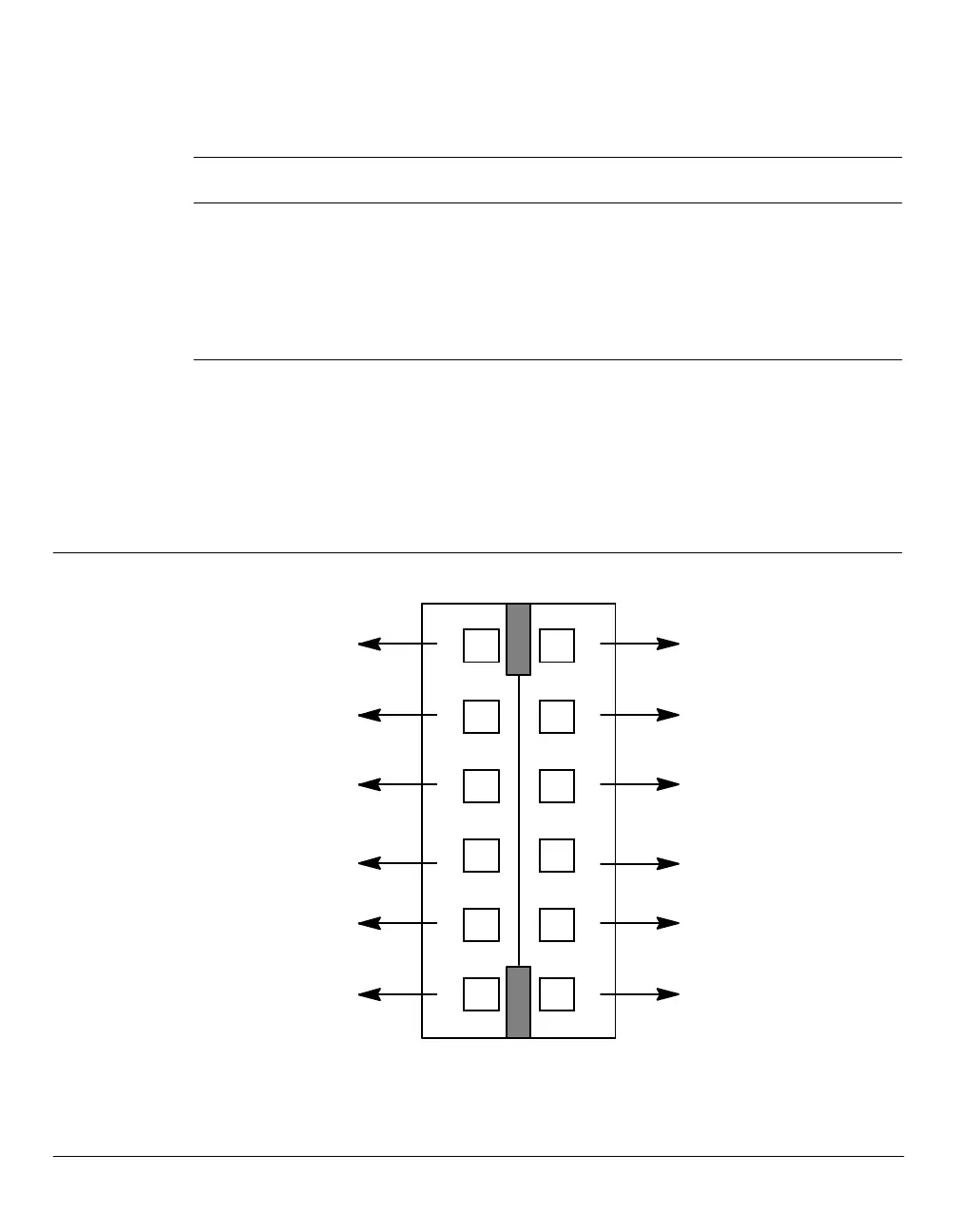

The 12•pin REMOTE receptacle provides a variety of functions, depending
upon connections made via the cable. The figure below and the table
following identify the function at each pin.
Remote Ready Input Ground
Same as 8 Ready Output: Con-
nects
with 5 upon ready
Start Output Start Output
Ready Output: Disconnects Ready Output: Com-
mon
from 5 upon ready for 6 and 9
Ground Remote Configuration
Input
Ground Remote Start Input
View from the top and
front of the HP 5890
12 11
10 9
7
5
3
12
4
6
8
Available Functions, Remote Receptacle J2
