Agilent Technologies PSA Series Installation Note

12 Installation Note E4440-90613
Installation Procedure

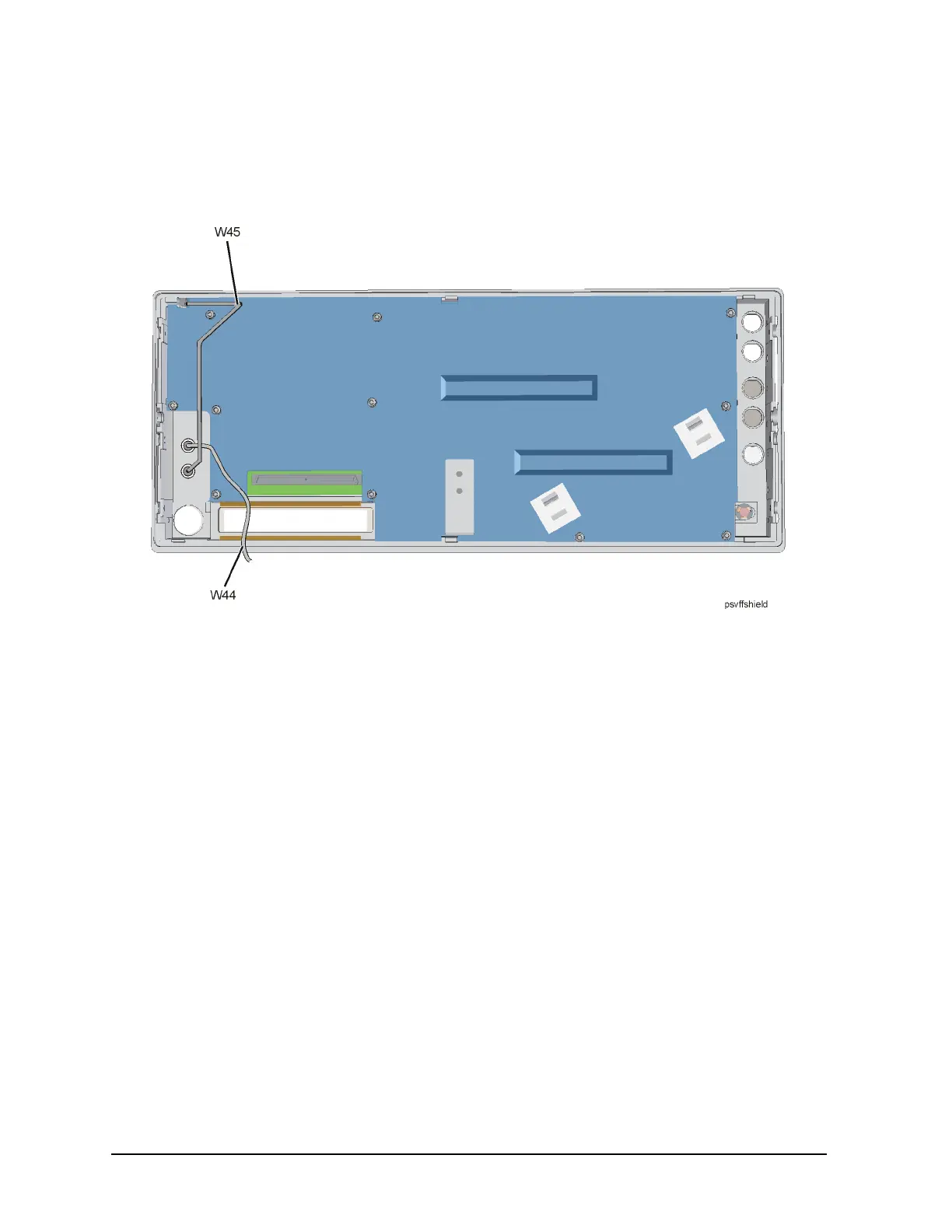

Figure 4 W45 Cable Location at Front Panel
4. Locate and remove cable W44 (IF Input on the front panel to J3 on the 3rd Converter
Assembly). Discard this cable.
5. Locate the two SMA Hole Plugs (6960-0076) from the kit.
6. Remove the 1st LO Out and IF Input Front Panel SMA Connectors with a ¼ inch
deep socket. Ensure you do not scratch the front panel. Discard the SMA connectors
and replace them with the SMA Hole Plugs.
