Agilent Technologies PSA Series Installation Note

Installation Note E4440-90613 11
Installation Procedure
Uninstalling Option AYZ
1. Refer to Figure 3. Locate and disconnect semi-rigid cable W45 from W46. Remove
W46 from the FELOMA and discard W46 since it is no longer needed.

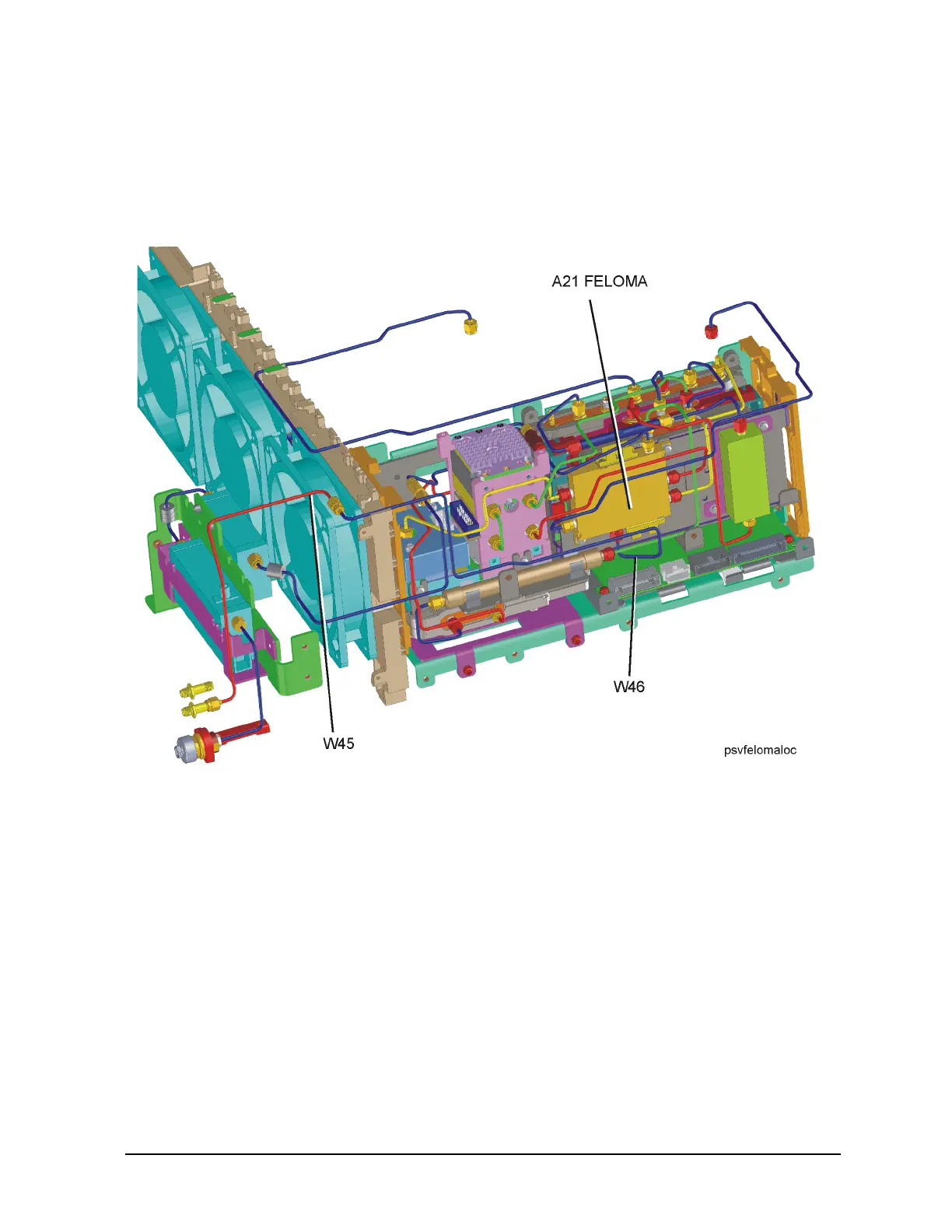

Figure 3 W46 Cable Location
2. Remove the front frame as described in the instructions in this installation note
under the section called “Drop the Front Frame”.
3. Refer to Figure 4. Remove cable W45 from the front panel 1st LO Out. Discard this
cable.
