14 Installation Note E4440-90613
Installation Procedure
Installing Option 123 with Option 110
1. Locate the Coaxial Switch SW3 (N1810-60052) from the kit.
2. Locate the E4446-60373 gray flexible cable from the kit. This cable is reference
designator W94. Connect cable W94 to Coaxial Switch SW3 Port C. Torque to
10 in-lbs.
3. Locate the E4446-60298 gray flexible cable from the kit. This cable is reference
designator W93. Connect cable W93 to Coaxial Switch SW3 Port 2. Torque to
10 in-lbs.
4. Locate the E4446-60373 gray flexible cable from the kit. This cable is reference
designator W89. Connect cable W89 to Coaxial Switch SW3 Port 1. Torque to
10 in-lbs.
5. Locate the Coaxial Switch Bracket (E4440-00076) from the kit. Refer to Figure 6.
Install Coaxial Switch SW3 to the Bracket with two screws (0515-0666). Torque to
9in-lbs.

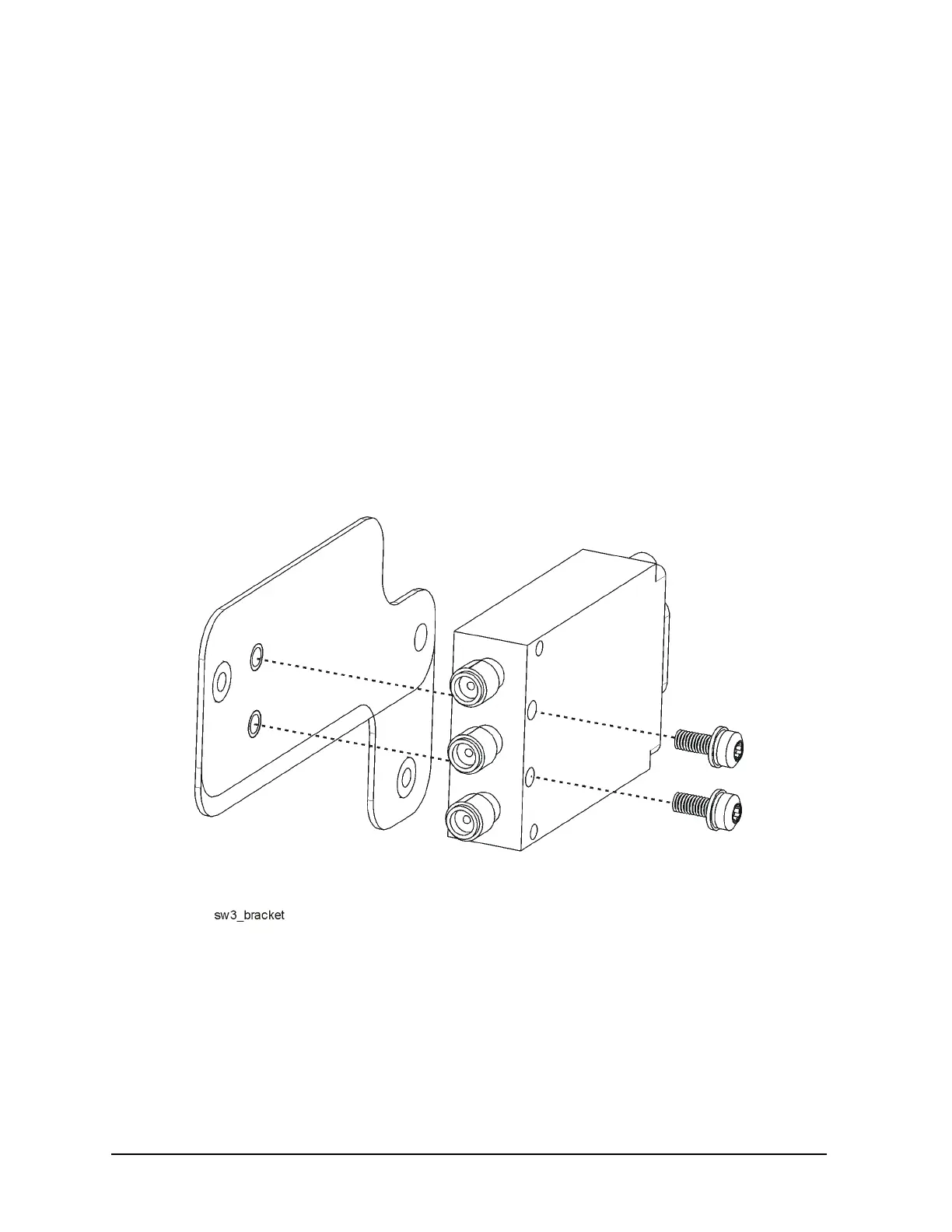

Figure 6 SW3 and Bracket
6. Locate the E4446-60427 Ribbon Cable from the kit. This cable is reference designator
W96. Connect cable W96 to Coaxial Switch SW3.
7. Refer to Figure 7. Install the Coaxial Switch Assembly (1) to the chassis with two
screws (0515-0430) (2) as shown. Torque to 9 in-lbs.
