Two-wheel tractor agria 3600 27

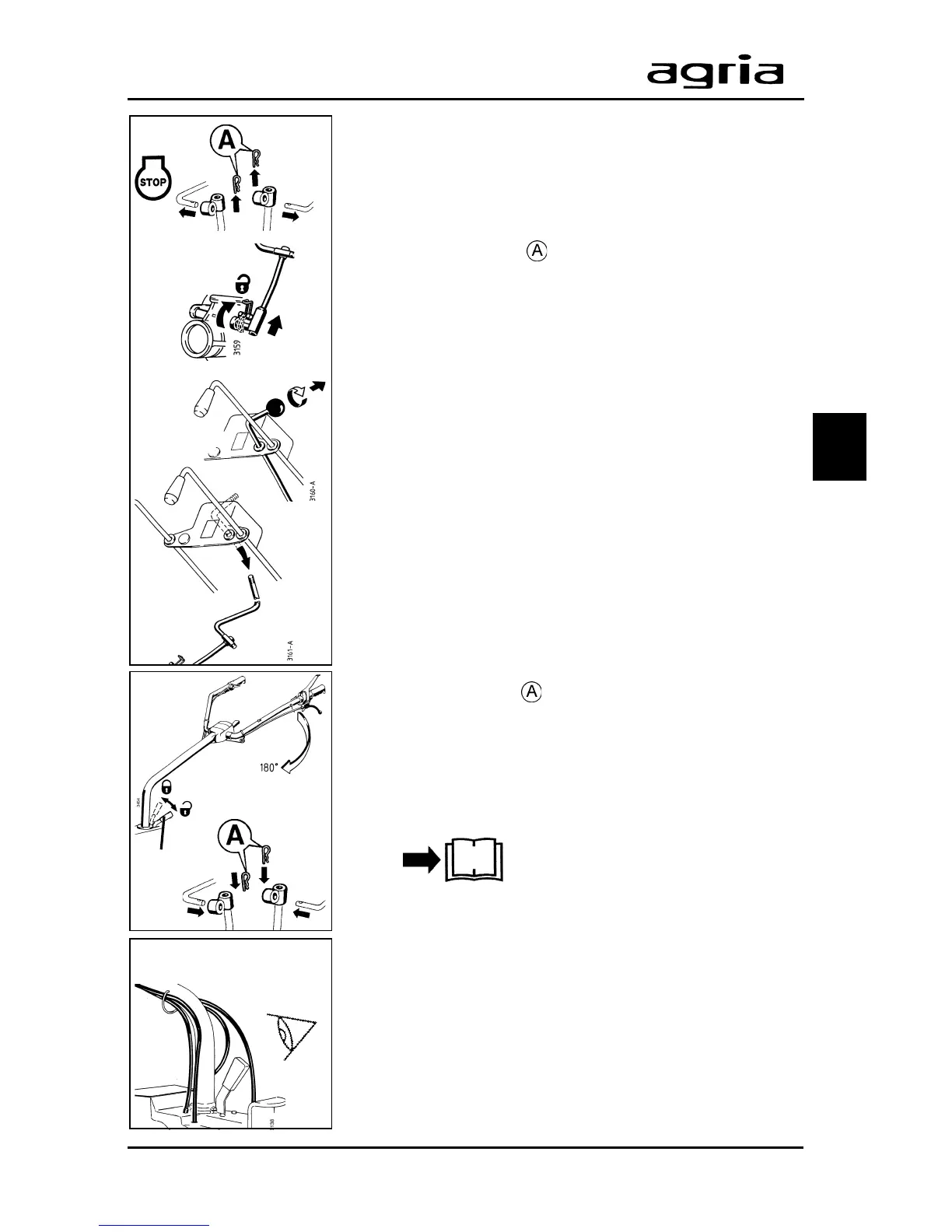

Swivel Steering Handle – 180°
For mounting front attachment:
W
Only swivel steering handle when the engine
is turned off.
ŒRemove W-clips (
) from shifters.
l
Remove shifters from joints.
•dismount fast speed shifter:
(only for version 3F2R)
1. Open spring band on shifter.
2. Remove shifter by pulling it upwards.
3. Screw off ball handle from shifter.
4. Pull out shifter from shift gate and store.
ŽPush swivel control lever (B/13 and C/13) backward.
At the same time swivel steering handle 180° clock-
wise.
•Push swivel control lever forward and lock into ap-
propriate notch on steering handle.
•Reconnect both shifters with outer shift levers and
secure with W-clips
.
Note: Make sure Bowden cables are not twisted when
you swivel the steering handle.
Note: The gear shifter is now located on the left side
and the PTO shifter on the right side of the handlebar.
Also, PTO shifting and single-wheel braking is vice
versa
Steering handle side adjustment (approx. 30°) is also
possible when the steering handle is swivelled 180°.
Swivel Steering Handle Back to Original
Position
Proceed in same order, but swivel anti-clockwise. For
version 3F2R mount fast speed shifter.
3. Devices and Operating Elements
3
2.
3.
1.
4.
L
B/13;
C/13
•
Ž
•
•
3V2R
Œ
Arrangement of Bowden
cables with steering
handle swivelled
32
