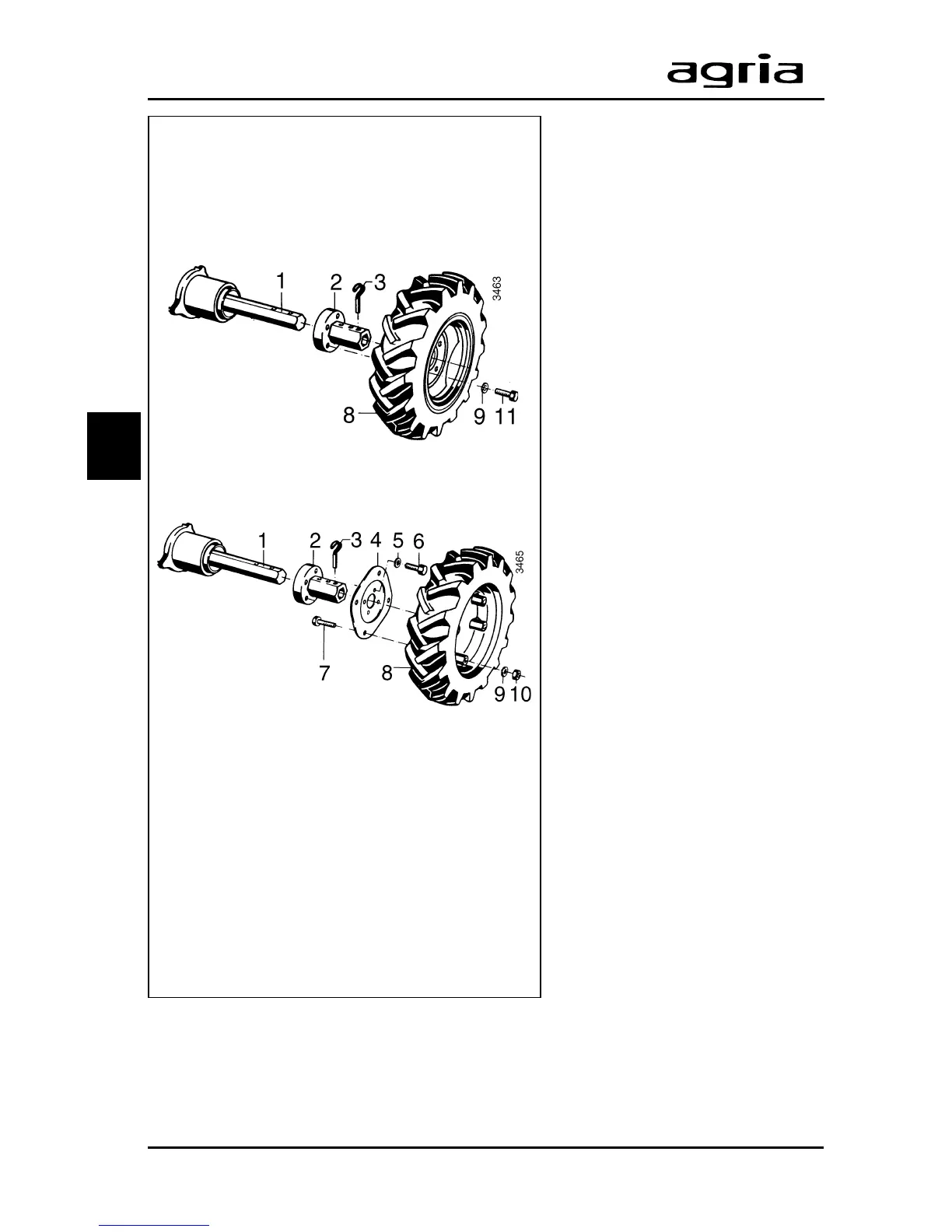

28 Two-wheel tractor agria 3600
2F2R with drive-wheels 4.00 - 8
2F2R with drive-wheels 4.00 - 10
1 Hexagonal wheel shaft
2 Hexagonal wheel flange
3 Linch pin
4 Wheel adapter flange
5 Washer
6 Wheel screw
7 Hexagonal screw
8 Drive-wheel
9 Washer
10 Wheel nut
11 Wheel screw
Drive-Wheels
Version 2F2R = Hexagonal
Wheel Shaft
The wheel flanges (2) are fitted
on the hexagonal wheel shafts
(1) and are held by linch pins (3)
which are inserted into the ap-
propriate hub and wheel shaft
holes.
Use wheel screws (6) and wash-
ers (5) to mount the appropriate
drive-wheels (8) onto wheel
flanges.
For fastening the wheel on the
shaft, there are two holes on
each end of the wheel shaft and
3 holes (for linch pin) on the
wheel flange. To mount the wheel
at the required track width slide
it on the wheel shaft to the ap-
propriate position.
W
Fit spring band of linch
pin backwards in travel
direction, turn it around the
axle and lock into place.
For variable track width from
352mm to 632mm, the wheels
can be mounted either on their
inner or outer sides.
For full tractive power, mount
wheels with pointed parts of
lugs showing in driving direction
(wheels seen from above). This
applies also when the steering
handle is swivelled 180° for front
attachments.
