Two-wheel tractor agria 3600 29
Drive-Wheels Usage
Tyre Profile Usage Item no.
4.00-8 Field tyre Tilling, ridging 3690 011
mowing, sweeping
winter service operation
4.00-10 Field tyre Ploughing, tilling 3690 021
3F2R with drive-wheels 4.00 - 8
3F2R with drive-wheels 4.00 - 10

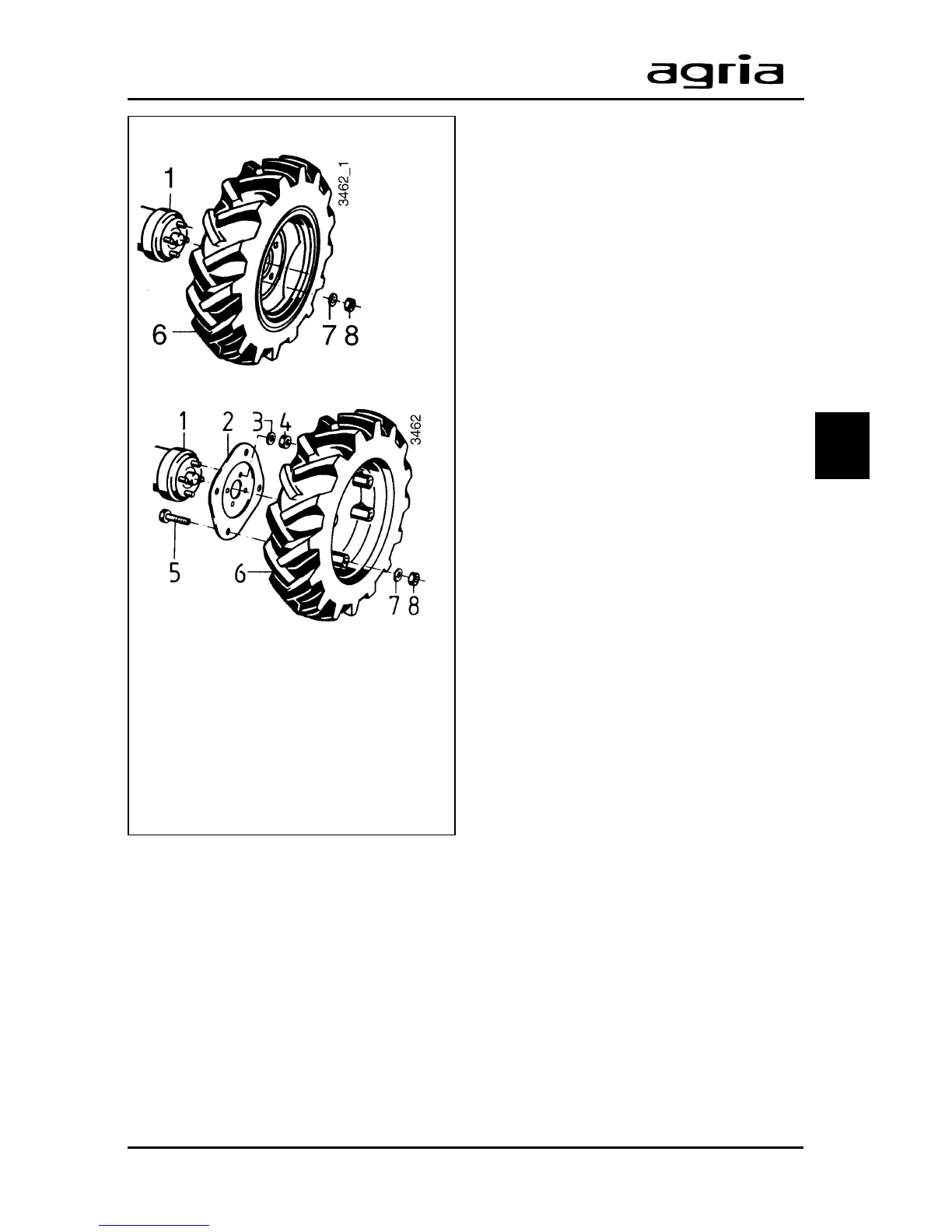

1 Wheel flange
2 Wheel adapter flange
3 Washer
4 Wheel nut
5 Hexagonal screw
6 Drive-wheel
7 Washer
8 Wheel nut
3. Devices and Operating Elements
Version 3F2R = brake drum/wheel
flange with double end studs
Use wheel nuts (8) to mount the appro-
priate drive-wheels (6) on the wheel
flanges (1).
For drive-wheels 4.00 - 10, first mount
wheel adapter flanges (2) onto drive-
wheels.
Track width is adjustable to fit require-
ments (see track width plan p16). Ac-
cordingly, mount drive-wheels onto
wheel flanges or drive-wheels onto
wheel adapter flanges (flanges or
wheels turned inward or outward and
mounted on their inner or outer sides
onto wheel adapter flanges).
For full tractive power, mount wheels
with pointed parts of lugs showing in
driving direction (wheels seen from
above). This applies also when steer-
ing handle is swivelled 180° for front at-
tachments.
Wheel Fastening Screws
Version 2F2R: Wheel screws with
washers
Version 3F2R: Double end studs with
washers and wheel nuts
After the first 2 operating hours re-
tighten wheel screws or wheel nuts at
50 Nm. This applies for commissioning
new machines and after a wheel
change. Otherwise, re-tighten wheel
screws and wheel nuts each time you
do maintenance work.
Snow Chains
When working with snow chains fitted
to wheels, observe manufacturer’s in-
structions, make sure there is sufficient
clearance between chains and machine
parts.
