Agria 3600 - Assembly Instructions; Steering Handle Assembly

6 Two-wheel tractor agria 3600
ΠUnpack the two-wheel tractor,
fit the steering handle into the
steering column:
•Screw out set screw and hex-
agonal nut (lock nut) until steer-
ing handle can fit into steering
column.
ŽFit steering handle into steer-
ing column – lever (A/6) must lock
into toothed ring of steering han-
dle.
•Screw in set screw until you
feel slight resistance – then
loosen set screw a quarter turn
and lock with hexagonal nut.
•Place Bowden cables (hoeing/
tilling attachment) on the left side
(in travel direction) of steering
handle and as depicted on pages
7 and 8.
l Steering handle must swivel
easily.
‘Assemble shifters. For this pur-
pose, insert shifters for PTO and
gear shifters into joints of shift le-
vers on gearbox and secure with
W-clips
.

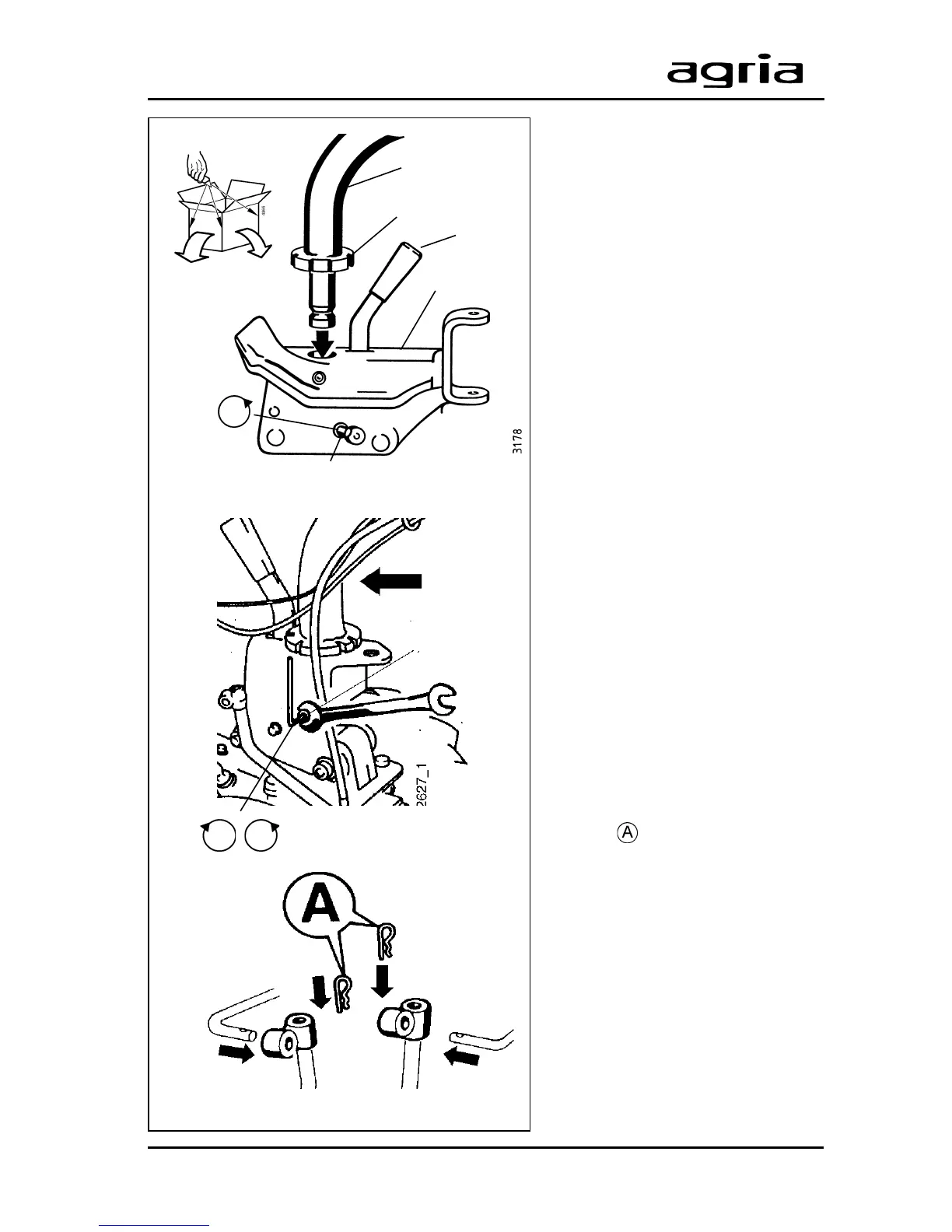

Assembly Instructions
Set screw and hexagonal nut
Assembly of shifters
Steering
handle
Steering
column
Tighten with
lock nut
Œ
•
‘
1/4
•
•
Ž
Toothed ring
A/6
