26 Two-wheel tractor agria 3600

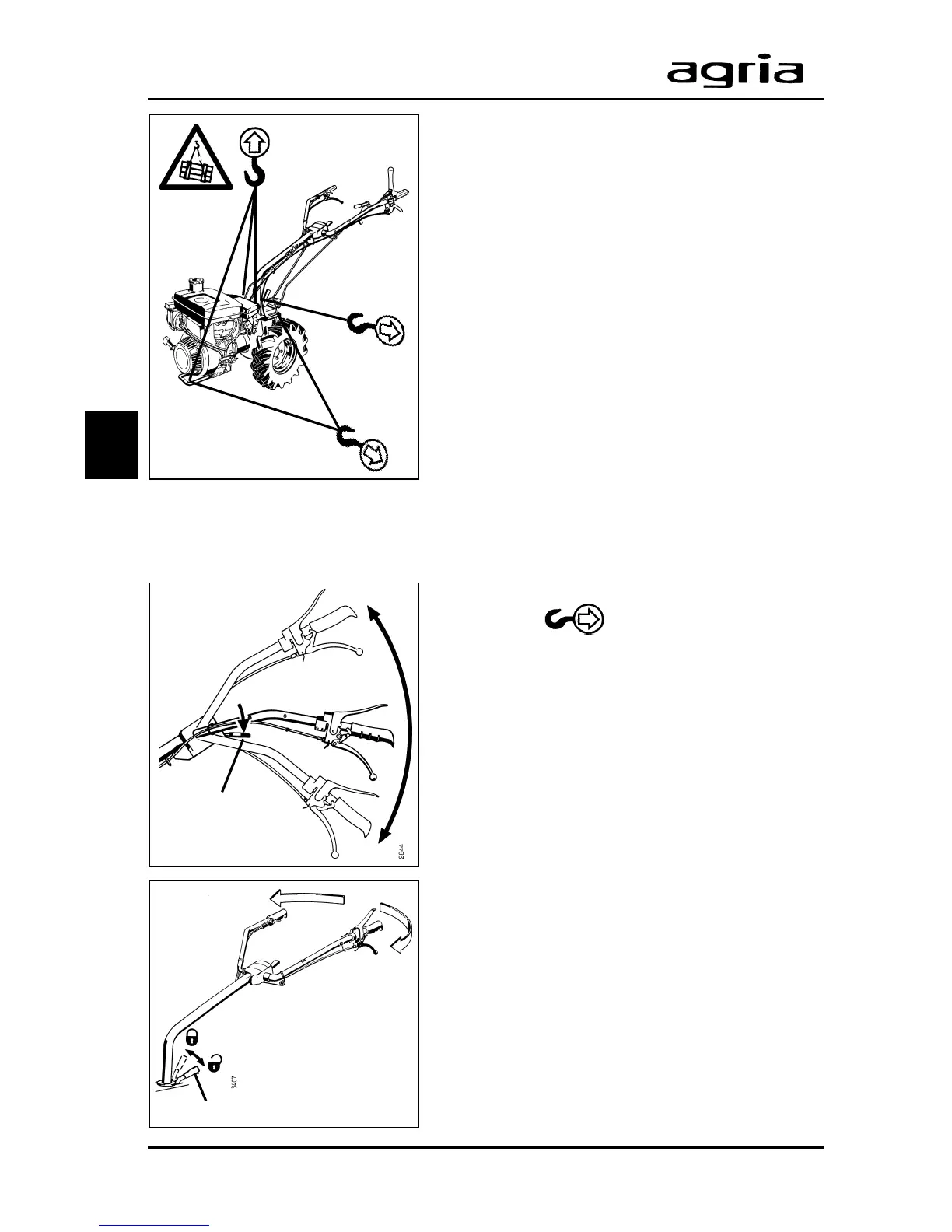

Loading Belt
ΠA loading belt must be placed around the
gearbox housing behind the engine when trans-
porting the machine.
• A loading belt must be placed around the
sterring tower for attaching the safety rope when
working on slopes.
Check loading belt for damage; replace it, if
necessary.
Do not use any loading devices with sharp
edges (e.g. sharp-edged hooks, lugs etc.) .
Never walk or remain under moving loads.
Danger!
Fixing Points
Ž For towing away, recovering and tying down
and to ensure a safe transport, use the
fixing points
on the towing hitch and on
the counterweight.
Steering Handle
Steering Handle Height Adjustment
l
Press down locking lever (B/3 and C/3), until
notches are free.
l
Adjust handlebar to desired height.
l
Release locking lever and fit handlebar into
proper notch, so that locking lever swivels back
into its original position.
Steering Handle Side Adjustment
You can swivel the steering handle from its
normal position (centre position) approx. 30°
to the left or right.
l
Push swivel control lever (B/13 and C/13)
backwards and swivel steering handle to the
left or right into desired position (fig. F).
l
Push swivel control lever forwards and lock
into appropriate notch on steering handle.
3. Devices and Operating Elements
3
B/3; C/3
B/13; C/13
Œ
•
Ž
