8 Two-wheel tractor agria 3600
Assembly Instructions
Version 3F2R,
differential, steering brake
Set screw and
hexagonal nut
l

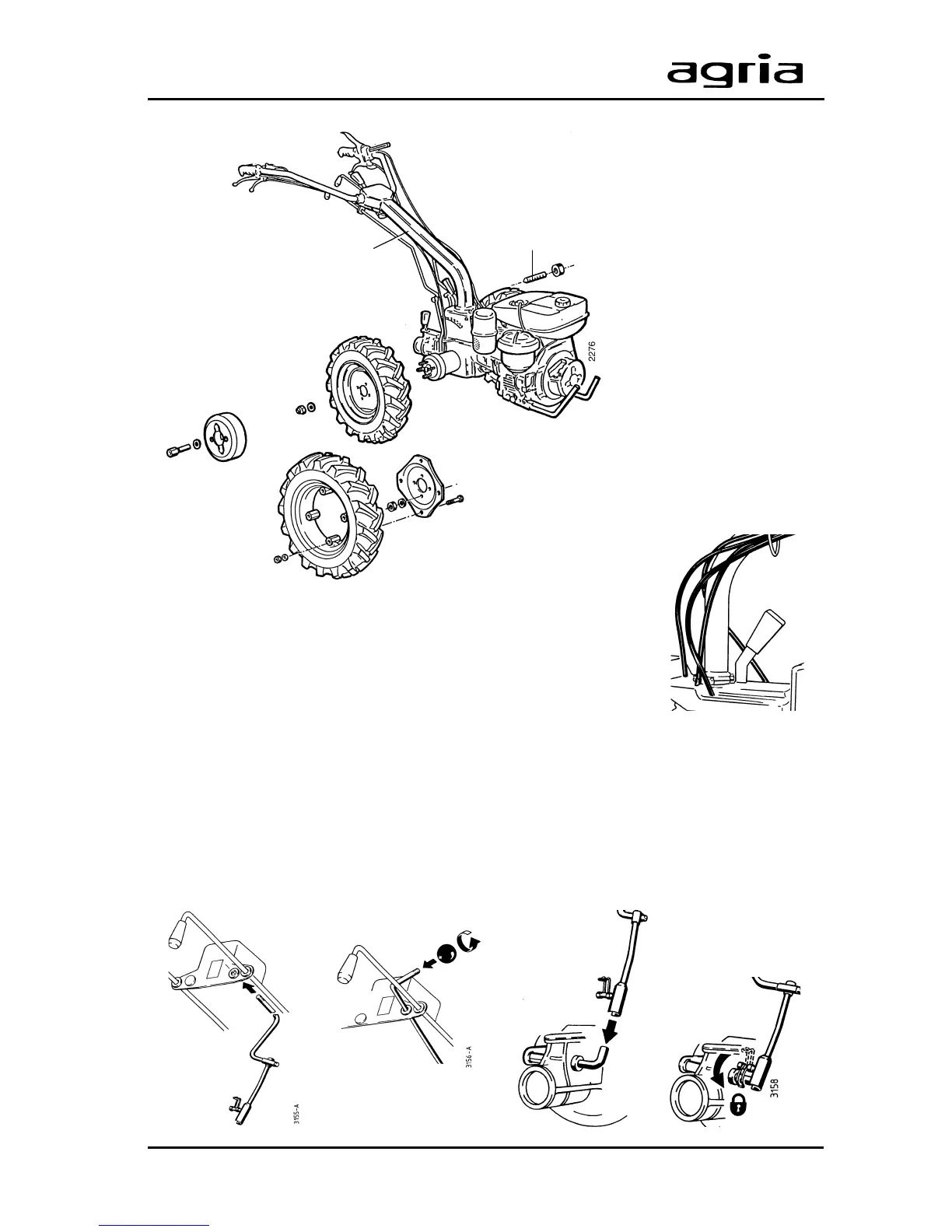

Mounting drive-wheels:
– 4.00-8: Mount drive-wheels on wheel flanges us-
ing wheel screws and washers. Mount in such a way
that the arrow tread profile points in travel direction.
Drive-wheel 4.00-8
Wheel weights
– 4.00-10: Screw wheel adapter flanges onto drive-wheels. Then mount drive-
wheels onto wheel flanges using wheel screws and washers in such a way
that the arrow tread profile points in travel direction.
l
Assembly of fast speed shifter:
Push shifter upwards through shifter guide ring (I), screw on ball handle (II),
stick shifter onto gearbox shift lever (III) and secure with spring band (IV).
Steering handle
Drive-wheels 4.00-10
with wheel adapter flange
Arrangement of
Bowden cables
I II III IV
