Chapter 2. Hardware SetupLynx User Manual
22a

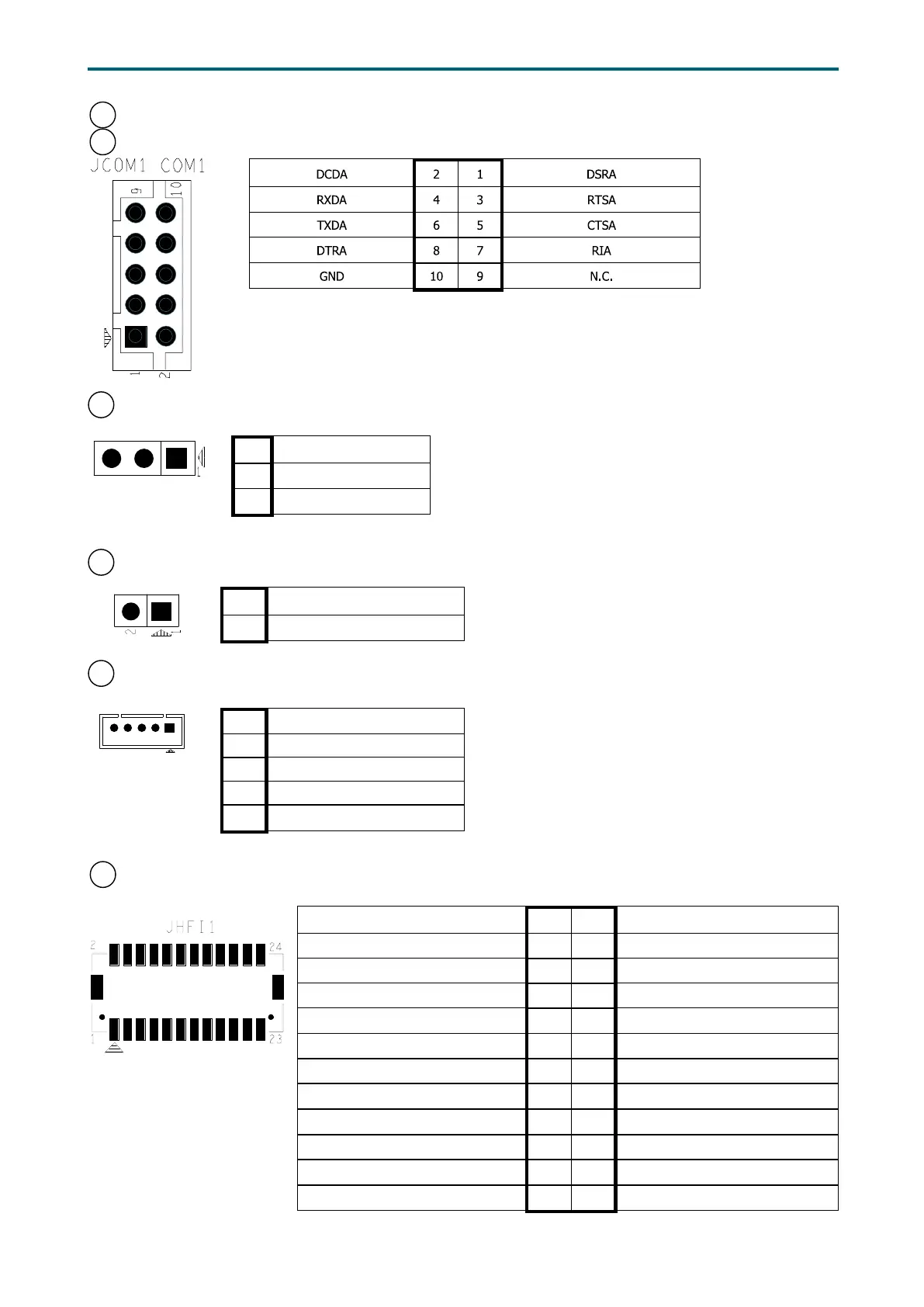

COM Port (JCOM1)
22b
COM Port (JCOM4)
23 BMC Debug Port Header (JBMC_DP)
24 Buzzer Header (JBUZZER)
25 LCM Header (JLCM)
31a
HFI Header (JHFI1/JHFI2)
1 BMC_UART_TXD5
2 BMC_UART_RXD5
3 GND
1 +5V
2 BMC_BUZZER-
1 SW_PWR_BTN#
2 SW_RST_BTN#
3 TXDC
4 RXDC
5 GND
GND 1 2 SMB_HFI0CPU0_LVC2_SCL
FM_MODPRST_HFI0_CPU0_LVT2_N 3 4 SMB_HFI0CPU0_LVC2_SDA
LED_HFI0_CPU0_N 5 6 RST_HFI0_CPU0_LVT2_N
GND 7 8 IRQ_HFI0_CPU0_LVT2_N
GND 9 10 SMB_HFI1CPU0_LVC2_SCL
FM_MODPRST_HFI1_CPU0_LVT2_N 11 12 SMB_HFI1CPU0_LVC2_SDA
LED_HFI1_CPU0_N 13 14 RST_HFI1_CPU0_LVT2_N
GND 15 16 IRQ_HFI1_CPU0_LVT2_N
+12V 17 18 +3.3V
PVPP_ABC_GD 19 20 +3.3V
PVPP_ABC 21 22 SMB_3V3SB_CLK
GND 23 24 SMB_3V3SB_DAT
