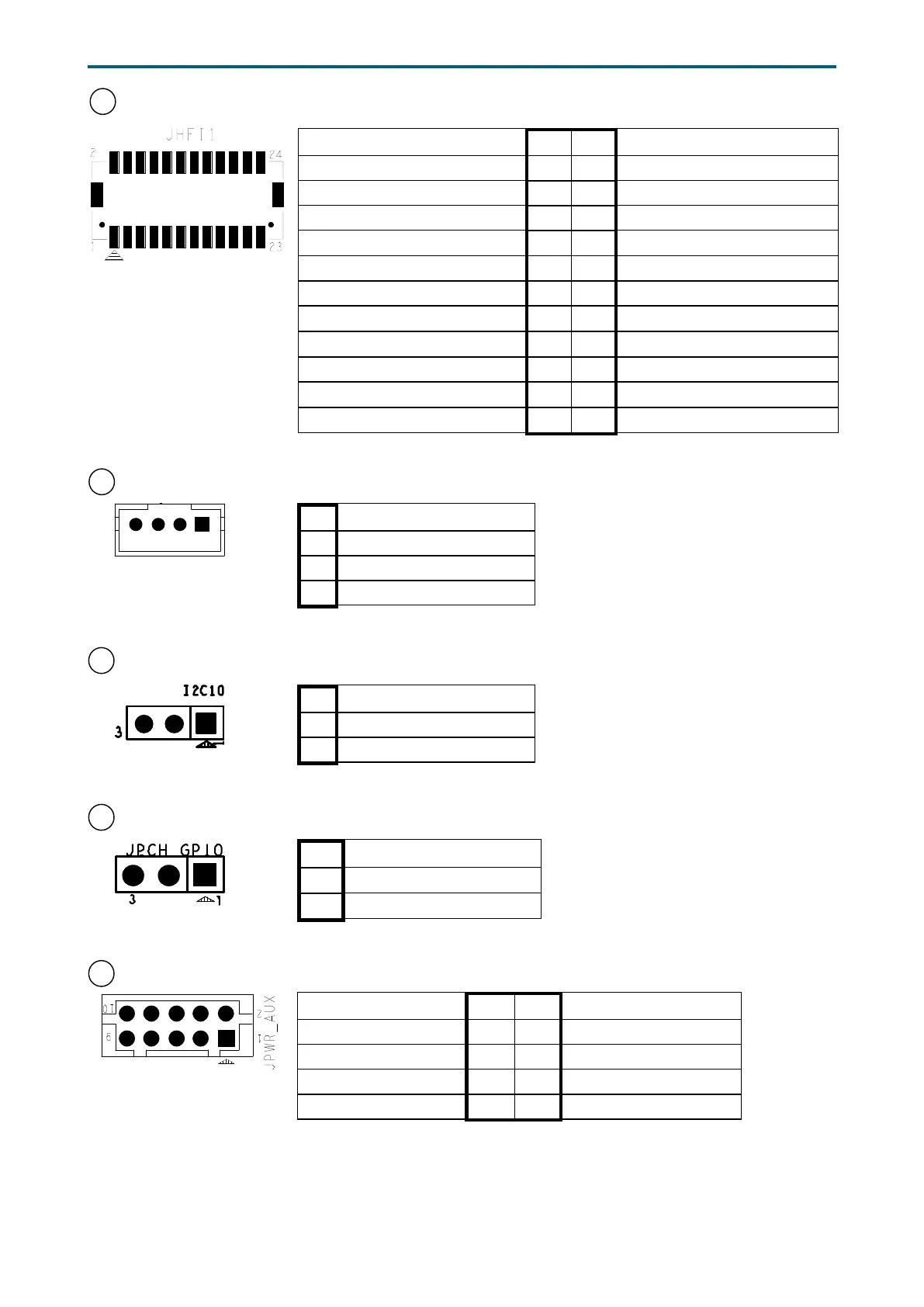

HFI Header (JHFI2)
33 IPMB Header (JBMC_I2C1)
39 BMC I2C10 Header (JBMC_I2C10)
40 PCH GPIO Header (JPCH_GPIO)
44 AUX Power Header (JPWR_AUX)
GND 1 2 SMB_HFI0CPU1_LVC2_SCL
FM_MODPRST_HFI0_CPU1_LVT2_N 3 4 SMB_HFI0CPU1_LVC2_SDA
LED_HFI0_CPU1_N 5 6 RST_HFI0_CPU1_LVT2_N
GND 7 8 IRQ_HFI0_CPU1_LVT2_N
GND 9 10 SMB_HFI1CPU1_LVC2_SCL
FM_MODPRST_HFI1_CPU1_LVT2_N 11 12 SMB_HFI1CPU1_LVC2_SDA
LED_HFI1_CPU1_N 13 14 RST_HFI1_CPU1_LVT2_N
GND 15 16 IRQ_HFI1_CPU1_LVT2_N
+12V 17 18 +3.3V
PVPP_GHI_GD 19 20 +3.3V
PVPP_GHI 21 22 SMB_3V3SB_CLK
GND 23 24 SMB_3V3SB_DAT
1 I2C1SDA
2 GND
3 I2C1SCL
4 N.C.
1 I2C10SCL
2 I2C10SDA
3 GND
1 PCH_GPP_C16
2 PCH_GPP_C17
3 GND
+12V 2 1 +12V
+3.3V 4 3 +3.3V
+3.3V_DUAL 6 5 +3.3V_DUAL
GND 8 7 GND
GND 10 9 GND
