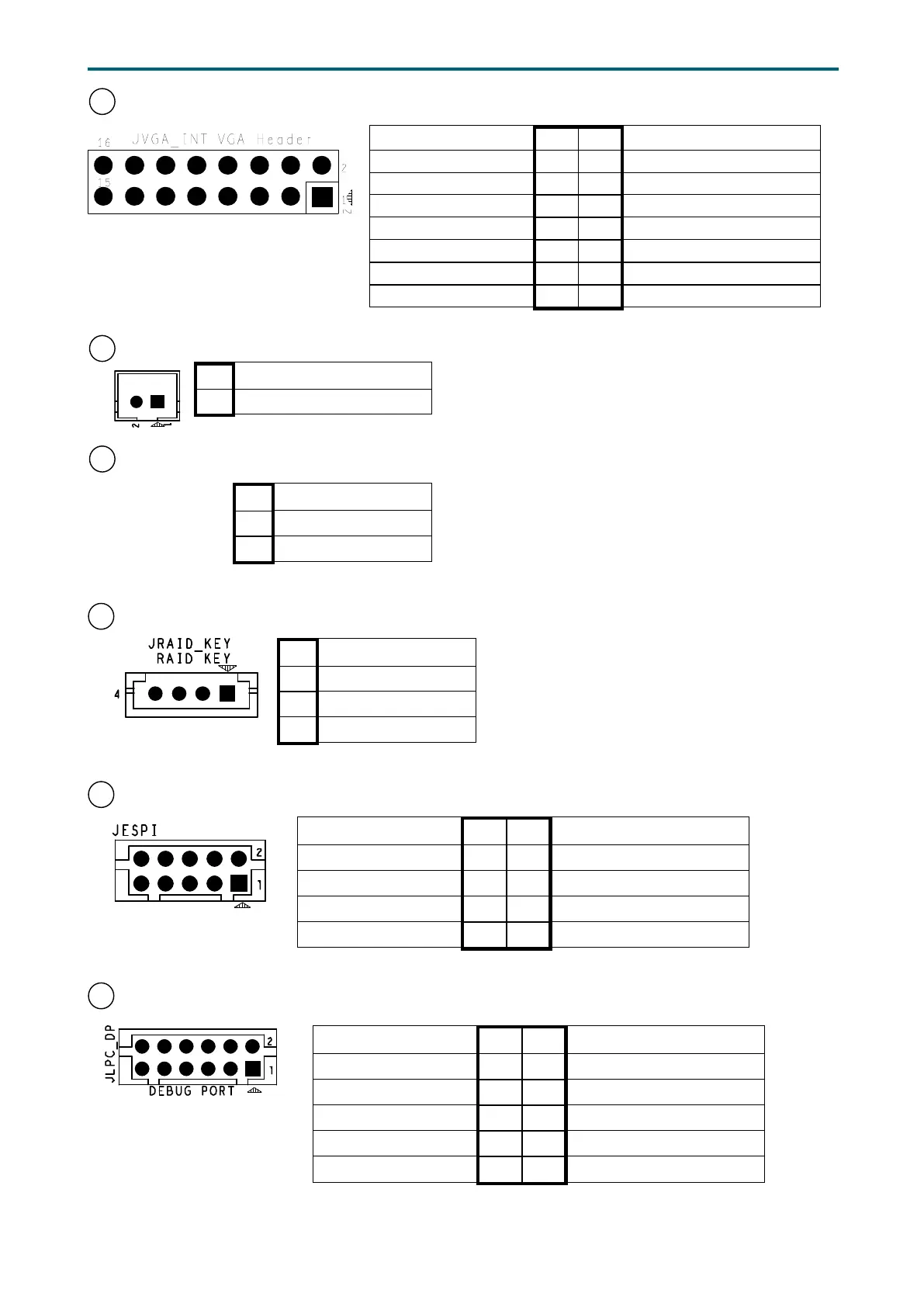

Chapter 2. Hardware SetupLynx User Manual
45 VGA Header (JVGA_INT)
46 SATA DOM Power Header (JDOM_PWR)
47 VRM SMB Header (JSMB_VR)
51 VROC KEY BOX Header (JRAID_KEY)
54 Debug Port Header (JESPI)
56 Debug port header (JLPC_DP)
DACROA 2 1 GND
N.C. 4 3 DACGOA
GND 6 5 DDC_DATAO
DACBOA 8 7 GND
AHSYNCO 10 9 N.C.
DVO_5V 12 11 AVSYNCO
GND 14 13 GND
DDC_CLKO 16 15 GND
1 +12V
2 GND
1 SMB_VR_DAT
2 GND
3 SMB_VR_CLK
1 GND
2 +3.3V_DUAL
3 GND
4 PCH_GPP_C10
PGPPA_PCH 2 1 +5V_AUX
SMB_HOST_3V3_DAT 4 3 PCH_SMI_N
SMB_HOST_3V3_CLK 6 5 PCH_LPC_CLKRUN_N
PCH_ESPI_RST_N 8 7 PCH_PME_N
PCH_ESPI_ALENT1_N 10 9 GND
CLK_24M_DP80 2 1 GND
PCH_LFRAME_N 4 3 PCH_LDRQ0_N
RST_PLTRST_N 6 5 AST_SERIRQ
PCH_LPC_LAD3 8 7 PCH_LPC_LAD2
+3.3V 10 9 PCH_LPC_LAD1
PCH_LPC_LAD0 12 11 GND
1
10
9
10
9
