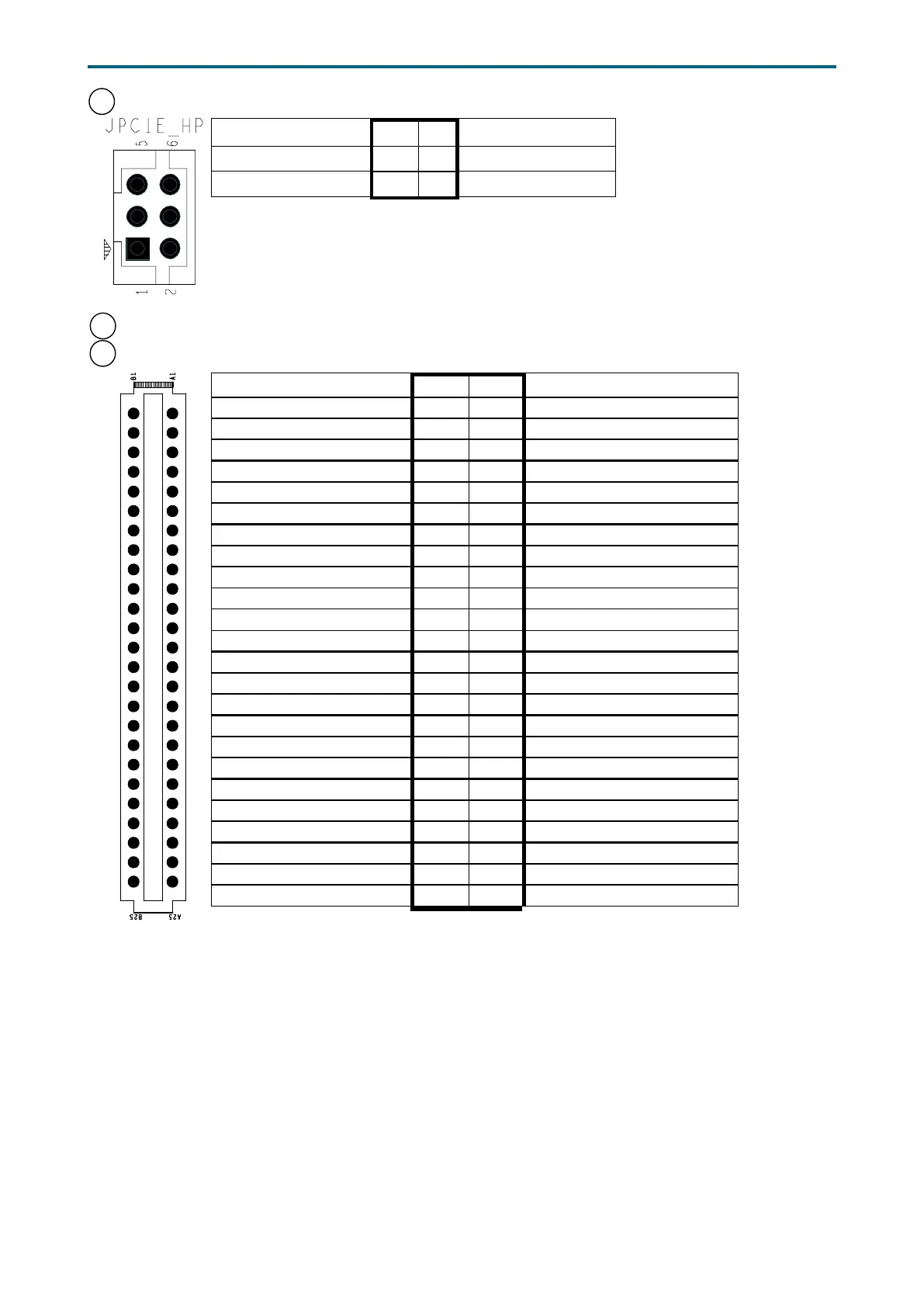

58 PCIE Hot-Plug SMB Header (JPCIE_HP)
59a
Power Supply Connector (J9)
59b
Power Supply Connector (J10)
CPU1_HP_I2C_CLK 2 1 CPU0_HP_I2C_CLK
CPU1_HP_I2C_DAT 4 3 CPU10_HP_I2C_DAT
GND 6 5 +3.3V
GND A1 B1 GND
GND A2 B2 GND
GND A3 B3 GND
GND A4 B4 GND
GND A5 B5 GND
GND A6 B6 GND
GND A7 B7 GND
GND A8 B8 GND
GND A9 B9 GND
+12V A10 B10 +12V
+12V A11 B11 +12V
+12V A12 B12 +12V
+12V A13 B13 +12V
+12V A14 B14 +12V
+12V A15 B15 +12V
+12V A16 B16 +12V
+12V A17 B17 +12V
+12V A18 B18 +12V
PMBUS_SDA A19 B19 PMBUS_A0
PMBUS_SCL A20 B20 PMBUS_A1
PS_ON A21 B21 +12V_AUX
ALERT A22 B22 CR_BUS_N
SENSE- A23 B23 12LS
SENSE+ A24 B24 PSKILL
PW_OK A25 B25 COM_BUS
