34 BMC Disable Jumper (JBMC_DIS)
35 BMC Reset Jumper (JBMC_RST)
41 No Reboot (Watch dog) Jumper (J5)
42 BIOS Recovery Mode Jumper (J7)
48 Flash Descriptor Security override Jumper (J3)
50 CMOS Jumper (JCMOS)
52 ME Force Recovery Mode Jumper (J6)

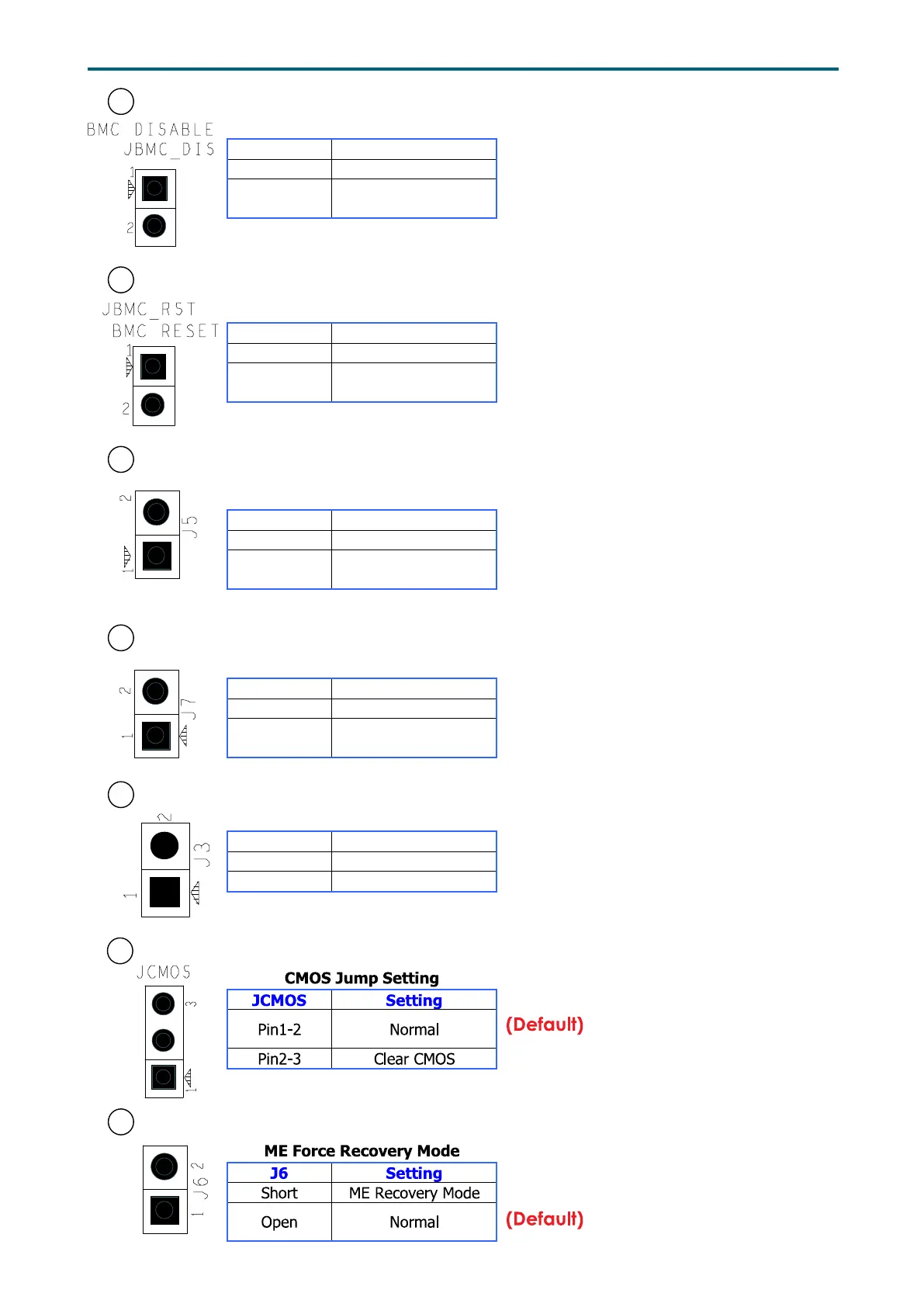

BMC Disable Jump Setting
JBMC_DIS Setting
Short Disable
Open Normal
(Defaul
t)
BMC Reset Jump Setting
JBMC_RST Setting
Short Reset BMC
Open Normal
(Defaul
t)
No Reboot(Watch Dog)
J5 Setting
Short Enable
Open Disable
(Defaul
t)
BIOS Recovery Mode
J7 Setting
Short BIOS Recovery Mode
Open Normal
(Defaul
t)
J3 Setting
Short Flash Security override
Open Normal (Defaul
t)
