Directly display when receiving message, press the keyboard to input the information, and click TX to transmit the
information.

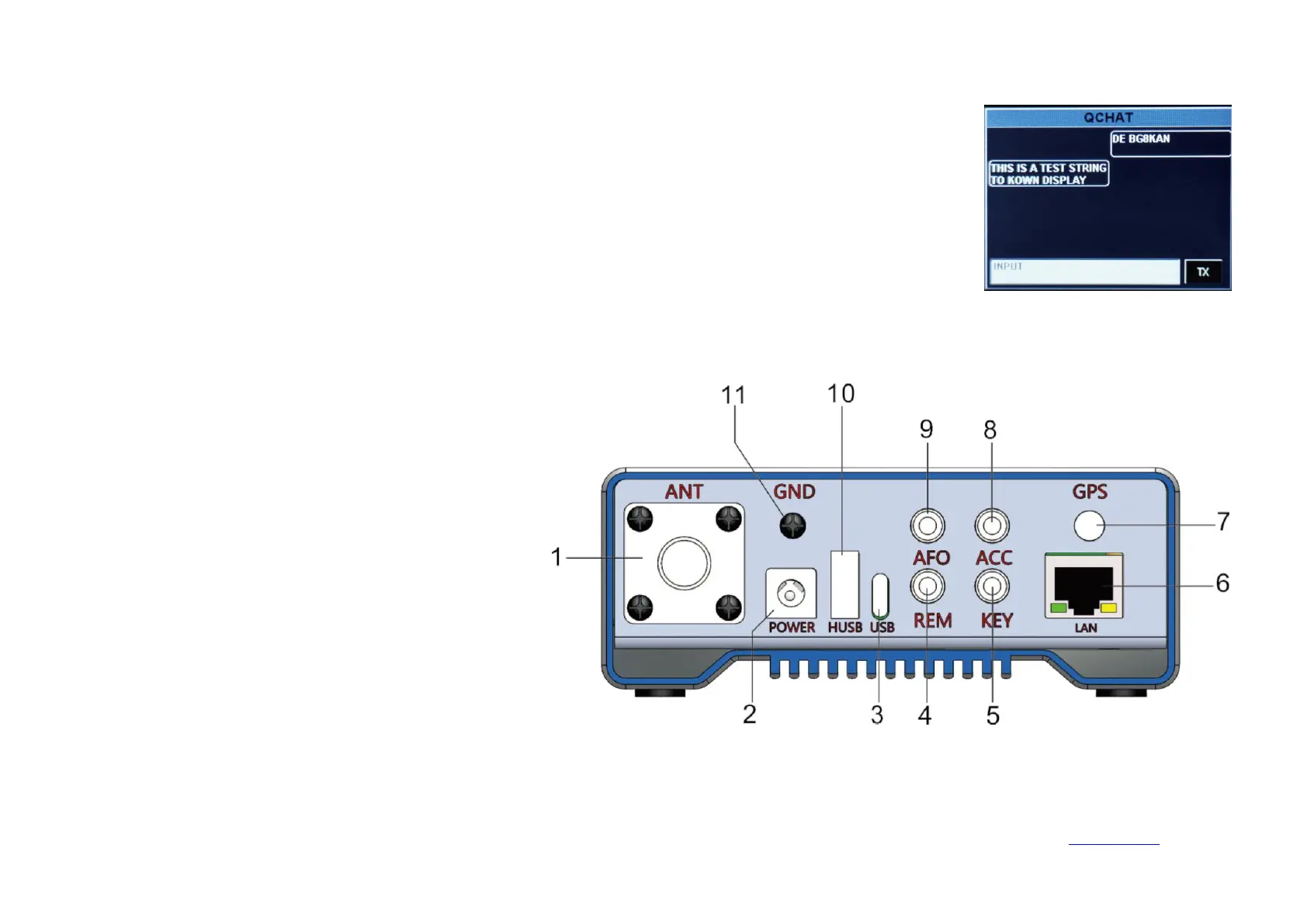

①Antenna interface
HF/50MHz/144MHz/430MHz antenna port (M type), the
output impedance is 50Ω.
②DC power interface .
Radio power interface, the specification is 5.5*2.5. Use
the standard DC power cord to connect to a regulated
power supply or battery. The power supply must be able
to provide a current of 6A@(12~16.8)V to ensure the full
power output of the radio.
③Sleeve USB interface
It is used to connect the USB cable to the computer and
can output audio, digital and IQ signals.
