30

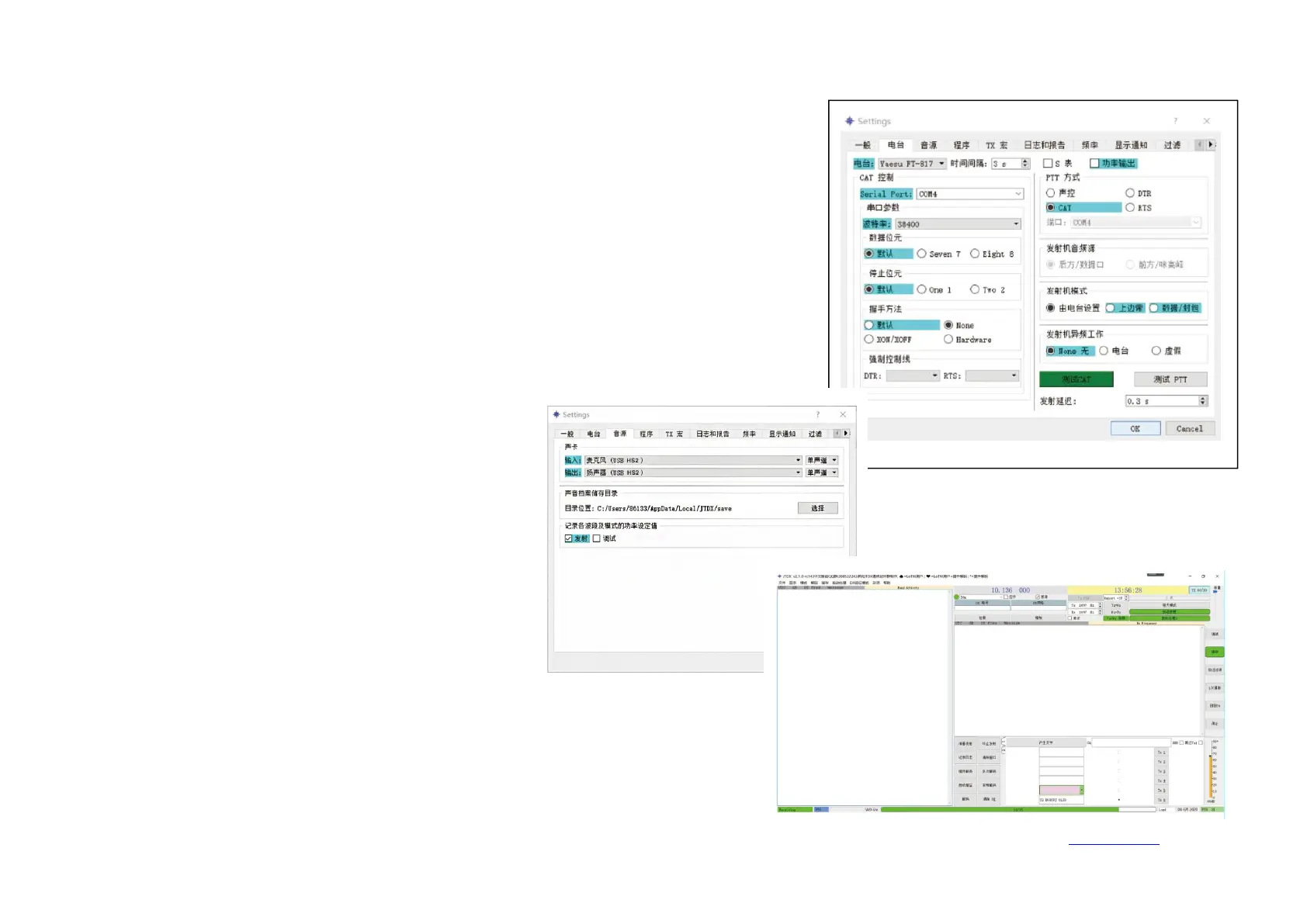

1-3. Open the FT8 software JTDX setting interface
The radio station chooses FT-817, the port number chooses the COM4 that the computer checks
before, the PTT way chooses CAT control, just ignore the rest, click test CAT, when connecting
successfully it will display green.
1-4, The sound source settings are as follows
1-5. Software working interface after it has been set.
