16
CHAPTER 9 DIGITAL OUTPUTS
The system features two digital inputs on
the 22 pins connector.
Each of them can give an output of 1 amp
at 12 volts.
9. Digital outputs

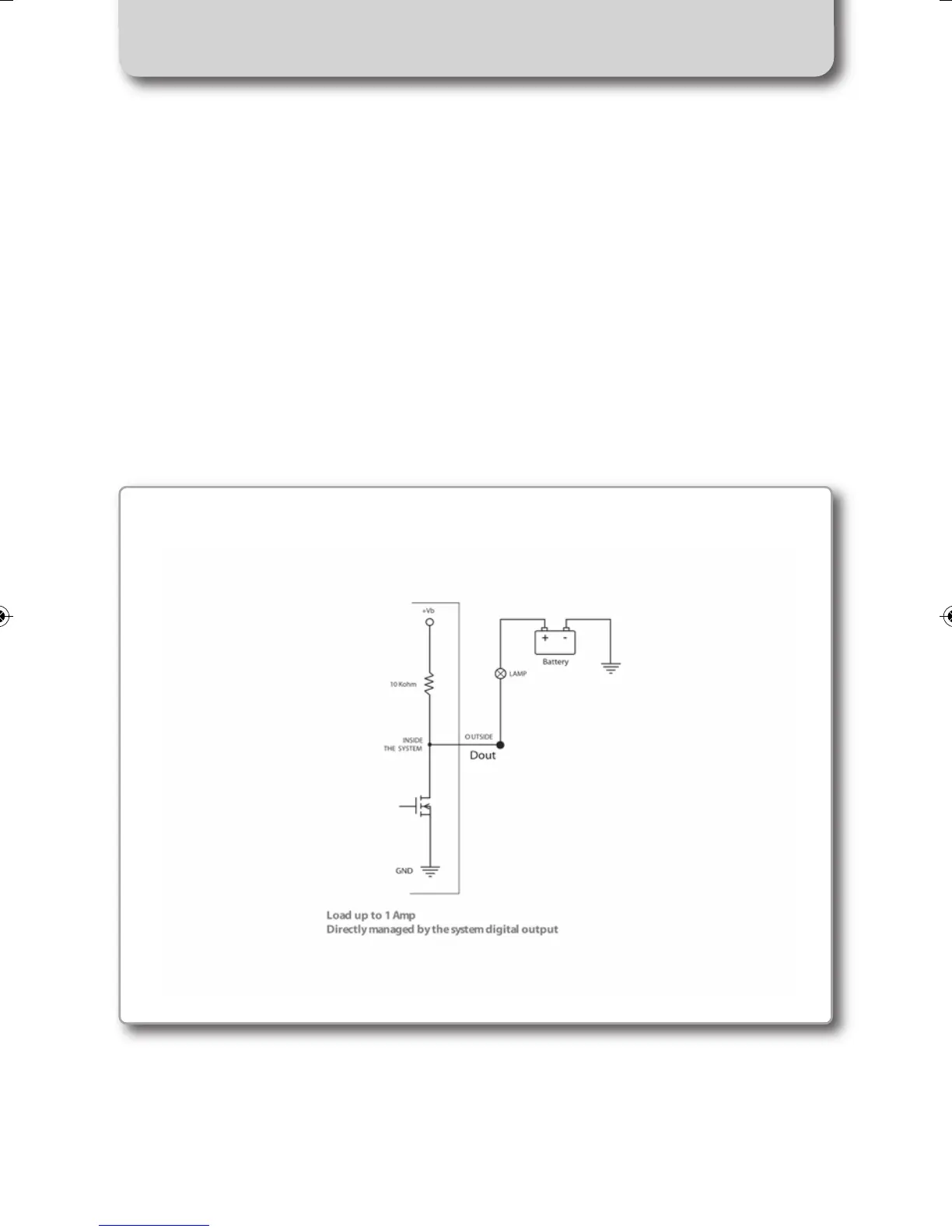

Connecting examples
The digital output (Dout) is a LOW-SIDE
type with internal 10 Kohm weak pull-up
resistor.
Here below are some connecting examples.
MXL2 MANUALE ENG OK 2016.qxp_Layout 1 28/10/16 14:36 Pagina 17
