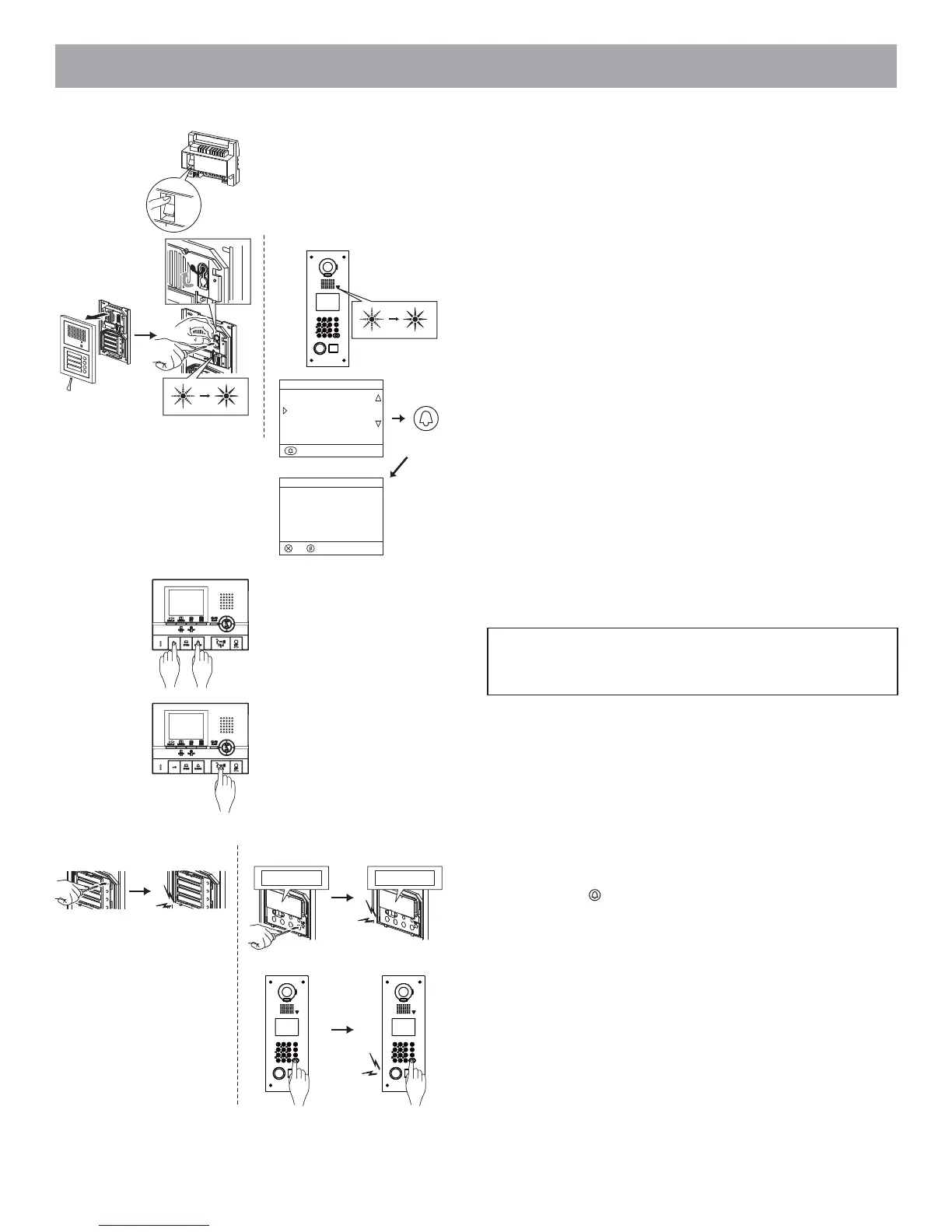

● Performing settings from an entrance station
1 Check that all units are mounted and wired correctly, and then
turn on the power switch of the GT-BC.
2 With the GT-DA/GT-DA-L, loosen the base screw of the frame
and open and remove the front panel.
Remove the rubber cap and use a fine screwdriver to push the program
switch.
With the GT-DMV/GT-DM, enter the program mode and select
"PROGRAMMING" from the menu.
Wait until "CONNECTING..." is displayed.
The in use LED will blink for approximately 6 to 15 seconds.
3 Once the in use LED is lit solid, press and hold down the door
release button while holding down the security guard station
call/light button of the residential station.
A beep will sound approximately 5 seconds later and all of the resi-
dence IDs will be initialized.
4 Check that the in use LED is lit, and press the TALK button of
the first residential station. With the handset type module, lift
the handset.
The corresponding communication channel will be established.
CAUTION: Performing the above operation will delete all link data in the resi-
dential station and return it to the initial settings. Only perform this
operation when performing settings the first time after mounting a
residential station. When changing settings, skip this procedure.
5 GT-SW: Press the relevant call button. (Do not press the button
longer than 1 second.)
GT-NS-V/GT-NS, GT-DMV/GT-DM: Display the assigned room no.
and press the button. (Do not press the button longer than 1 sec-
ond.)
An electronic beep will be emitted once. Link setting can be per-
formed for up to 4 stations. (With registration, the electronic beep will
sound a number of times equal to the number of connected stations.)
GT-DA-L/GT-DA
GT-DMV/GT-DM
2
MENU
:ENTER
CHANGE GREETING
PROGRAMMING
TRANSFER DATA
PROGRAMMING
CONNECTING...
:QUIT :PRESET
