5-2

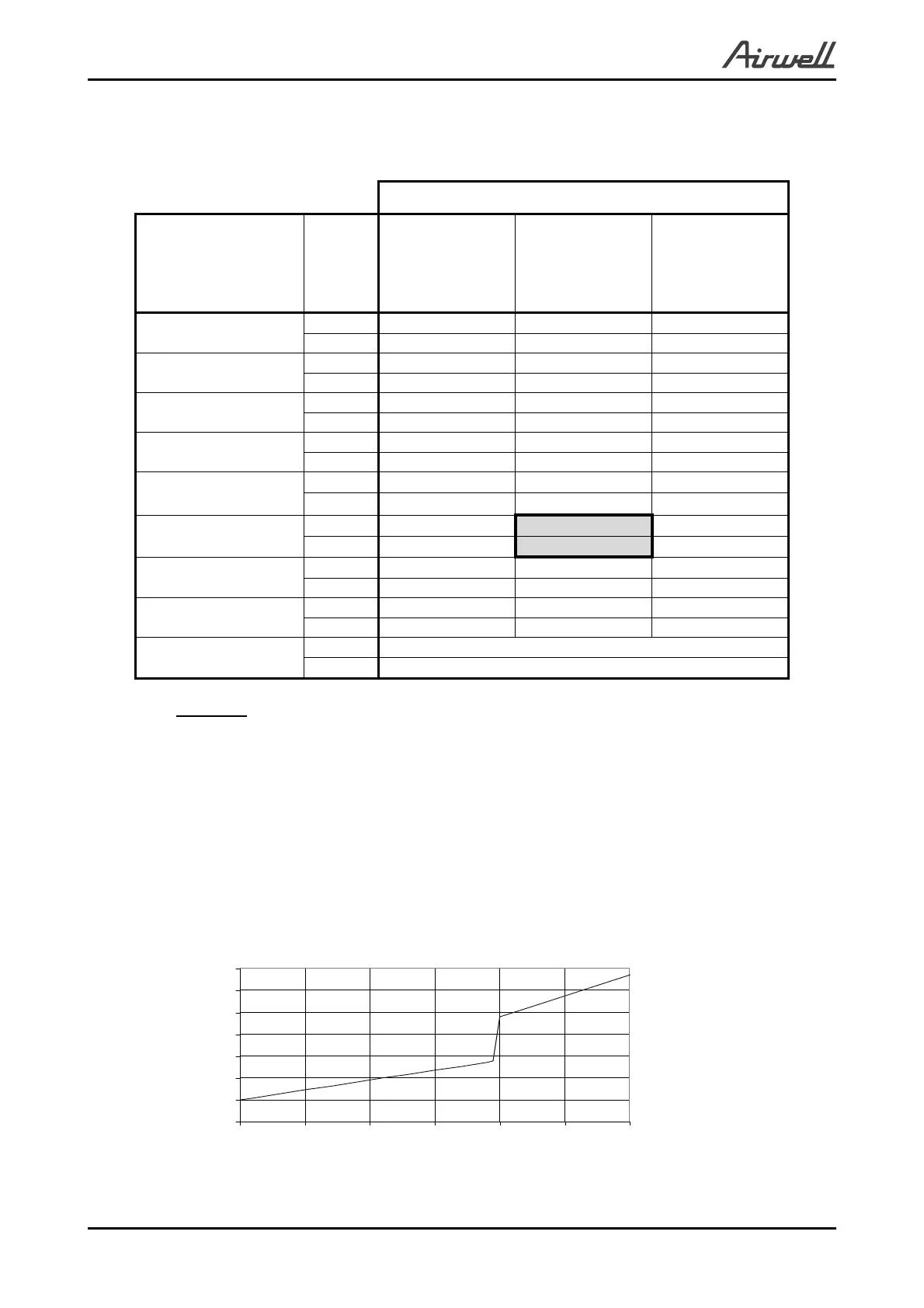

PERFORMANCE DATA
SM DUODCI 1-A.1 GB
5.1.3 Heating Capacity (KW) - Run Mode(Unit A or B)
230[V] : Indoor Fan at High Speed.
ID COIL ENTERING AIR DB TEMPERATURE [
0
C]
OD COIL ENTERING
AIR DB/WB
TEMPERATURE [
0
C]
DATA 15 20 25
-15/-16
TC 1.97 1.84 1.70
PI 0.50 0.55 0.60
-10/-12
TC 2.20 2.06 1.92
PI 0.60 0.65 0.71
-7/-8
TC 2.36 2.23 2.09
PI 0.68 0.73 0.78
-1/-2
TC 2.45 2.31 2.17
PI 0.72 0.77 0.82
2/1
TC 2.50 2.37 2.23
PI 0.75
0.80
0.85
7/6
TC 3.24
3.10
2.96
PI 0.78
0.84
0.89
10/9
TC 3.42
3.28
3.14
PI 0.83 0.88 0.93
15/12
TC 3.60 3.46 3.32
PI 0.88 0.93 0.98
15-24
TC 85 - 105 % of nominal
(Protection Range)
PI 80 - 120 % of nominal
LEGEND
TC – Total Heating Capacity, KW
PI – Power Input, KW
WB – Wet Bulb Temp., (
o
C)
DB – Dry Bulb Temp., (
o
C)
ID – Indoor
OU – Outdoor
5.1.4 Capacity Correction Factors
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
-15 -10 -5 0 5 10 15
Outdoor WB Temperature [deg C]
Capacity Ration
