AJA FS-HDR - Test Gen Screen; Color Screen; ANC Screen

FS-HDR Frame Synchronizer/Converter/HDR-WCG Processor v1.0r1 115 www.aja.com

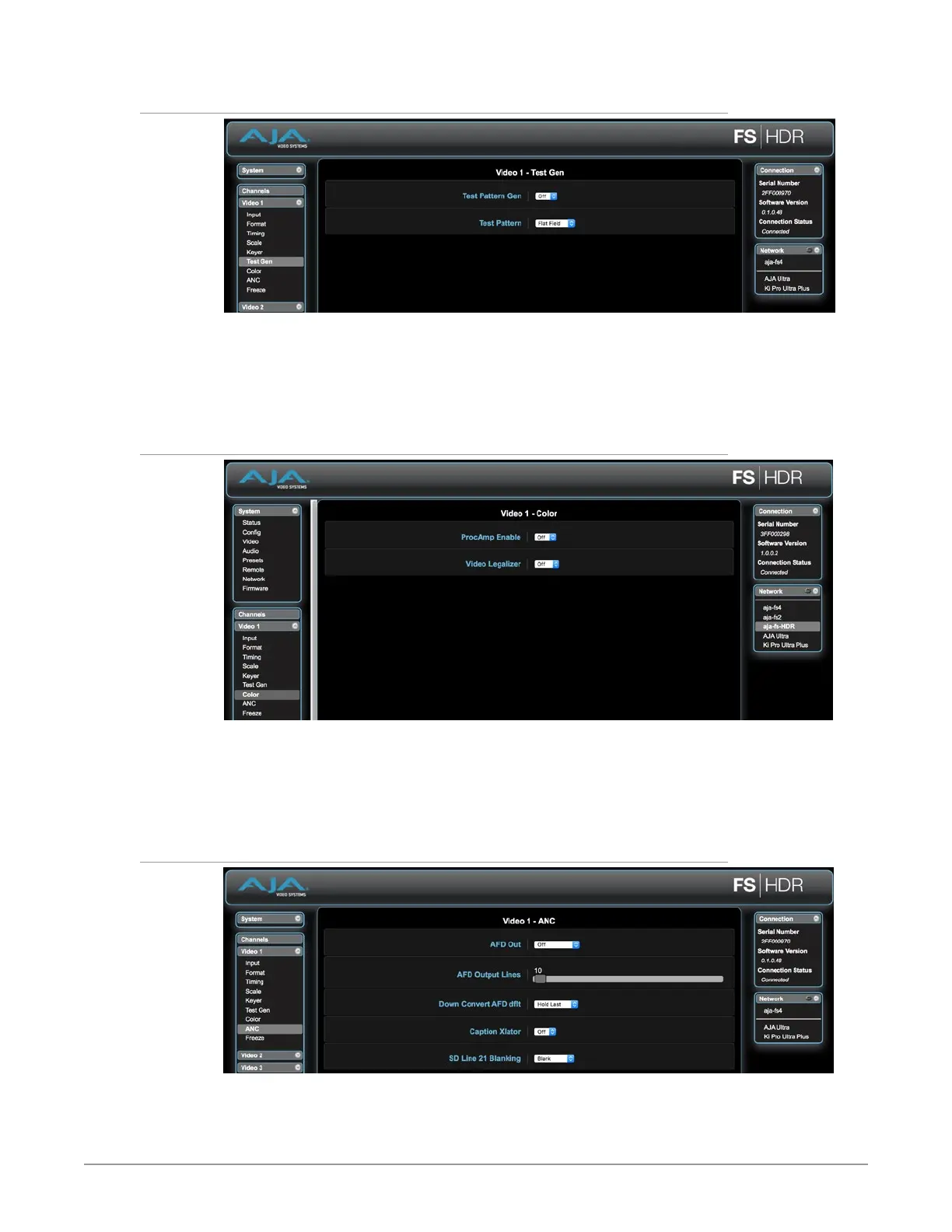

Test Gen Screen
Complete descriptions of the parameters on this screen are accessible using the
following cross references:
• "1 Test Pattern Gen" on page 90
• "2 Test Pattern" on page 90
Color Screen
Complete descriptions of the parameters on this screen are accessible using the
following cross references:
• "1.0 Proc Amp Enable (YUV)" on page 77
• "3.0 Video Legalizer" on page 77
ANC Screen
Complete descriptions of the parameters on this screen are accessible using the
following cross references:
• "1.1 AFD Out" on page 75
