AJA FS-HDR - Multiple Legacy Device SDR to HDR Live Conversion

FS-HDR Frame Synchronizer/Converter/HDR-WCG Processor v1.0r1 46 www.aja.com
2. Press the VIDEO System button
• Select 1 Output Frame Rate, and adjust to 59/29/23.
• Select 2 Genlock Source, and adjust to Reference.
Video Processor Setup
3. Press the VID1 Channel Select button
4. Press the INPUT Video button
• Select 1 Input, and adjust to 1-4 QuadLnk.
• Select 2.1 Dynamic Range&Gamut, and select PQ BT.2020 1000Nits.
5. Press the FORMAT Video button.
• Select 1 Output Format, and adjust to 1080p5994.
• Select 2.1 Dynamic Range&Gamut, and select Hybrid Log Gamma BT.2100.
• Select 3.0 Link Cfg SDI1-4 and adjust to Sngl Lnk LvlA.
6. If you have optional SFP output modules installed, you can select FORMAT
4.0 Link Cfg SDI5-8 and adjust to Sngl Lnk LvlA for an additional copy of that
converted signal.
The down-converted HD signal should now be present on the connected HDR
video monitor.
Multiple Legacy Device SDR To HDR Live Conversion
The following workflow demonstrates simultaneously converting multiple legacy
device SD and HD signals for an HD HDR production. In this example, signals
from two legacy SDR HD cameras, a legacy SD Video Replay system, and a legacy
SD Character Generator are up-converted or transformed to HLG for a live HDR
production. Four Channel mode operation is required.

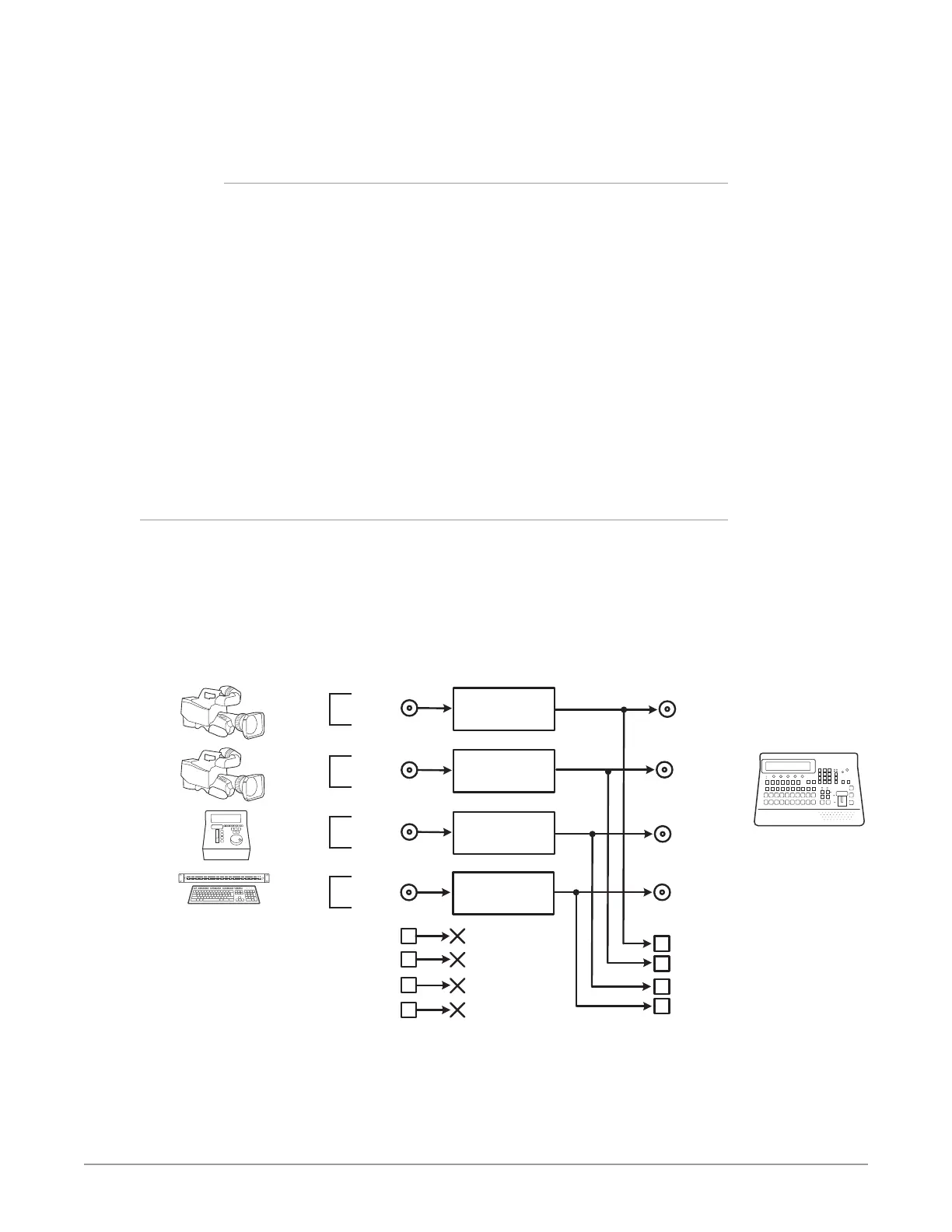

Figure 25. Four Channel Mode Example, Four Conversions
SDI Out 7 SFP
SDI Out 8 SFP
SDI Out 5 SFP
SDI Out 6 SFP
SDI Out 4 BNC
Character Generator
1920x1080p
59.94 HLG
SDI Out 1 BNC
Camera 1
1920x1080p
59.94 HLG
SDI Out 2 BNC
Camera 2
1920x1080p
59.94 HLG
SDI Out 3 BNC
Video Replay
1920x1080p
59.94 HLG
HD/SD
Video Processor with
Colorfront Engine
HD/SD
Video Processor with
Colorfront Engine
SDI In 1 BNC
SDI In 4 BNC
SDI In 5 SFP
SDI In 6 SFP
SDI In 7 SFP
SDI In 8 SFP
Camera 1
1920x1080i
59.94 (SDR)
One copy of each
converted signal
on each SFP output
(requires optional
SFP modules)
Multiple Device Conversion to HDR
Four Channel Mode
HD/SD
Video Processor with
Colorfront Engine
SDI In 2 BNC
Camera 2
1920x1080i
59.94 (SDR)
HD/SD
Video Processor with
Colorfront Engine
SDI In 3 BNC
Video Replay
525i (SDR)
Character
Generator
525i (SDR)
Output Signals to
HDR Video Switcher
