Fiber I/O The FS1-X supports optional AJA Optical Fiber I/O modules as follows:
• Single Input, LC connector
• Single Input SC connector
• Single Output LC connector
•Single Output SC connector
•Dual Input LC connectors
• Dual Output LC connectors
FS1-X's Fiber I/O supports the 3G/HD/SD SDI protocol. Only AJA modules are supported;
use of other manufacturers' modules is not supported and may void the warranty.
Technical Description
The FS1-X features an incredibly flexible architecture, offering a powerful Video Processor
for video conversion and processing, an optional Frame Rate Converter for even greater
conversion capabilities, a second Video Processor, a separate Audio Processor, and
extensive input and output video and audio signal routing.

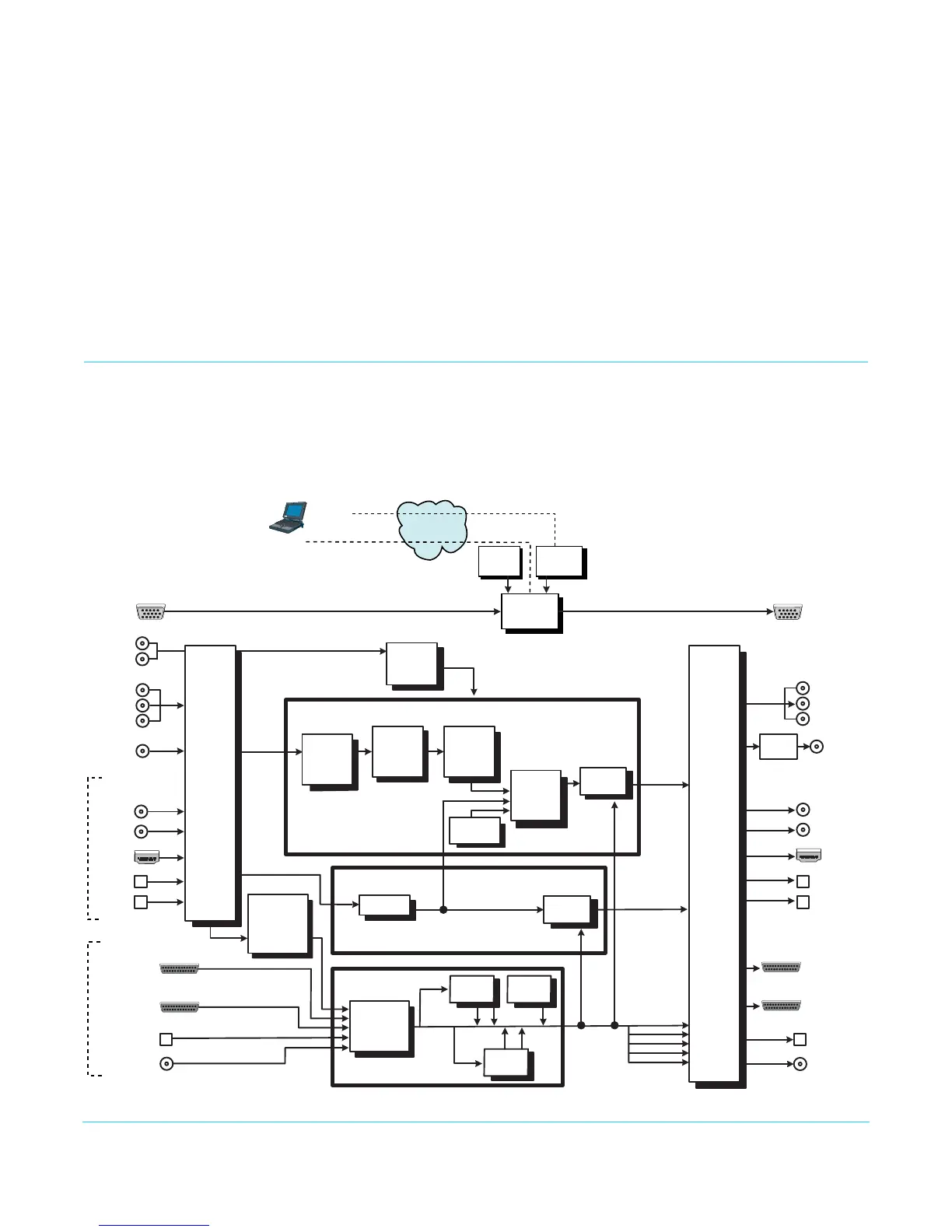

Figure 1. FS1-X Simplified Block Diagram
FS1-X CPU
Inputs
Passive
Reference
Loops
Embedded
Web Server
Panel
Control
LAN or WAN
Ethernet
GPI Inputs
(4)
Optional
Fiber In 1
Optional
Fiber In 2
SDI In 1
MADI
BNC In
SDI In 2
HDMI In
Composite
In
AES/EBU
Digital Audio In
16 Channels
Analog Audio In
8 Channels
(Tascam cable)
GPI Outputs
(4)
Optional
Fiber Out 1
Optional
Fiber Out 2
SDI Out 1
SDI Out 2
HDMI
Out
AES/EBU
Digital Audio Out
16 Channels
Analog Audio Out
8 Channels
(Tascam cable)
Down
Converter
Composite
Out
Video
Converter
and
Framesync
Video Proc
Amp and
Color
Corrector
Remote Web
Browser
Control
SNMP Control
via command line
Genlock
OutputsProcessing
VIDEO PROCESSOR 1
VIDEO PROCESSOR 2
AUDIO PROCESSOR
Video
Sidebar
Keyer
Audio
Embedder
Audio
Embedder
Video
and
Audio
Output
Crosspoint
Matrix
Video
Input
Crosspoint
Matrix
Video
Audio
Video
Video 1
Video 2
MADI
Fiber In
MADI
BNC Out
MADI
Fiber Out
Tone
Generator
Audio Level,
Phase, Delay
Adjustment
Optional
Frame Rate
Converter
Test Signal
Generator
Audio
De-Embedders
SDI 1, 2
HDMI
Fiber 1, 2
Framesync
Video with
Embedded Audio
Component
YCbCr/RGB
In
Component
YCbCr/RGB
Out
Audio
to Video Processor 1
and Video Processor 2
Mix Down
1
L C R
(Ls Rs)
Lr Rr
L C R
(Ls Rs)
Lr Rr
RL
Mix Down
2
RL
