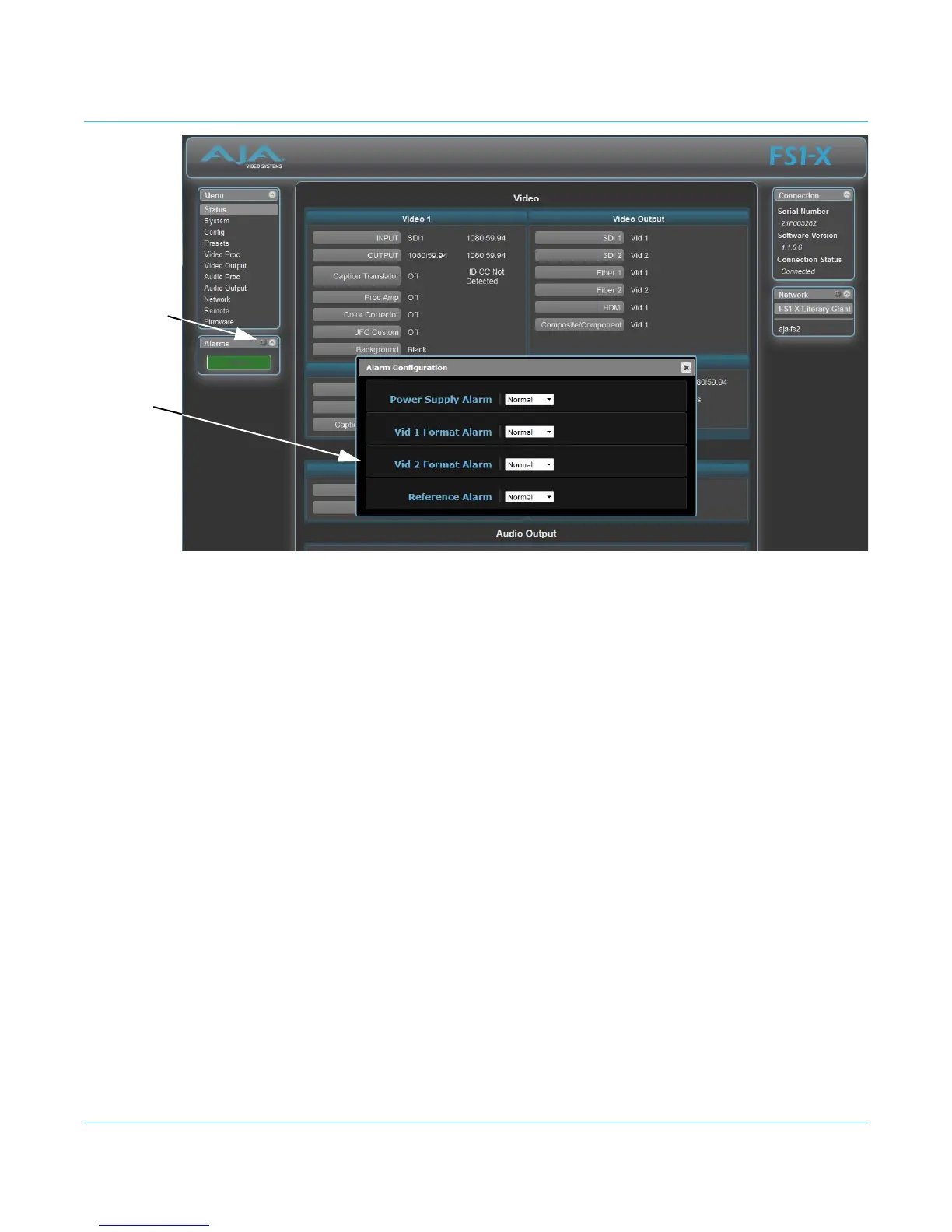

Alarm Configuration Screen
You can pop open the Alarm Configuration display at any time and on any screen by
clicking the gear button in the upper part of the Alarms panel.
To close the window, press the ESC key, or click the X in the upper right corner.
The Alarm Configuration display provides control over these alarm settings:
• Power Supply Alarm (see “5 Power Supply Alarm” on page 55)
• Video 1 and Video 2 Format Alarm (see “6.1 Vid1 Format Alarm” on page 55)
• Reference Alarm (see “7 Reference Alarm” on page 56)
FS1-X Alarms
display button
(gear icon)
Alarm Configuration
popup display
