AKAI DIGITAL DD8 Plus - PIN WIRING - DD8 (and Option Boards); Pre-Read Output; Analog Input;Output Connections; Appendix 3

Page 104 DD8 plus Version 2.20 - September 1998

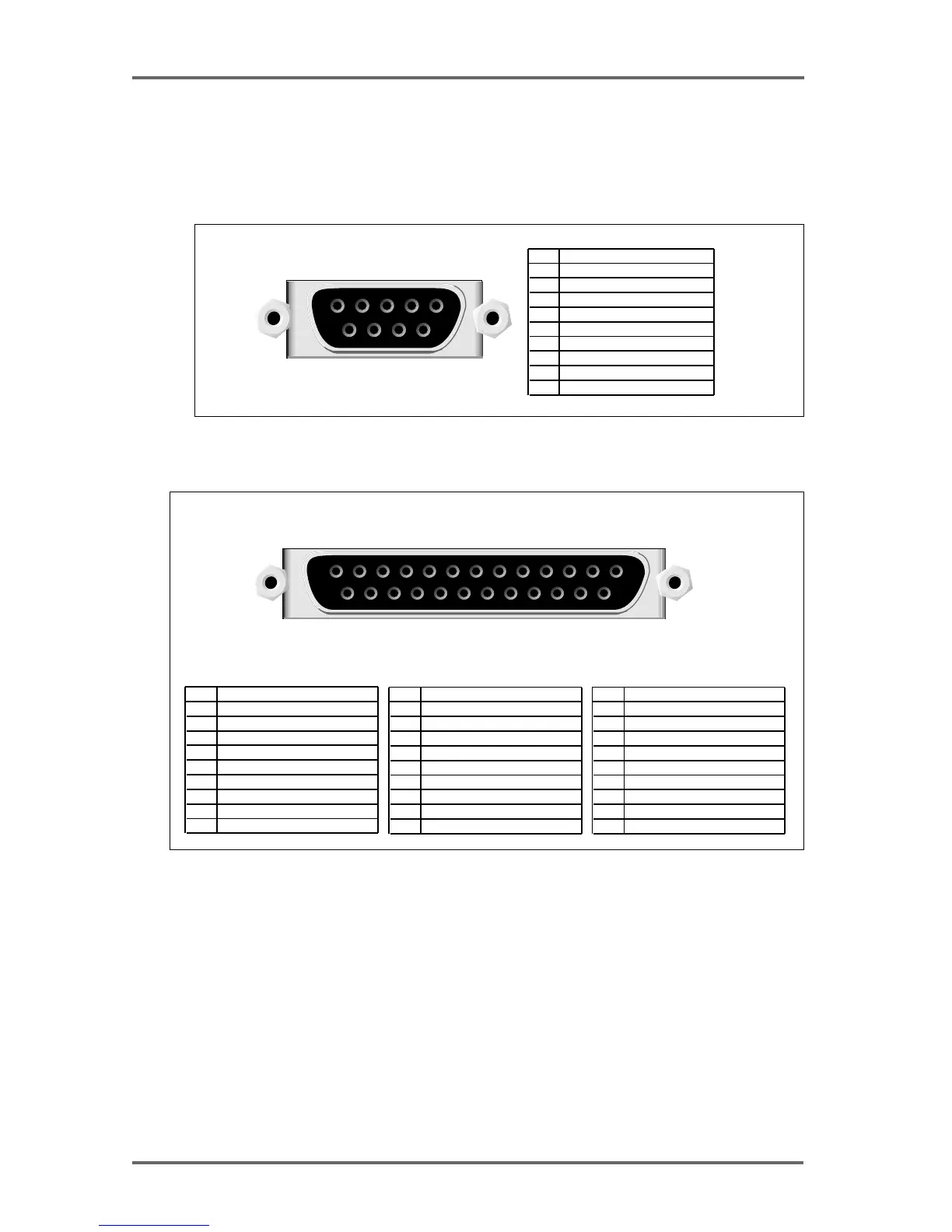

PIN WIRING - DD8 (and option boards)
PRE-READ OUTPUT
PRE-READ OUTPUT
51
9
6
D-Sub 9 Pin Female
PIN SIGNAL
2 Track 2
8 Track 5
7 Track 3
6 Track 1
5 Track 8
4 Track 6
3 Track 4
1 Ground
9 Track 7
ANALOG INPUT/OUTPUT CONNECTIONS
PIN SIGNAL
2 Track 8 (Ground)
8 Track 4 (Ground)
7 Track 4 (Hot)
6 Track 5 (Cold)
5 Track 6 (Ground)
4 Track 6 (Hot)
3 Track 7 (Cold)
1 Track 8 (Hot)
9 Track 3 (Cold)
PIN SIGNAL
11 Track 2 (Ground)
17 Track 6 (Cold)
16 Track 7 (Ground)
15 Track 7 (Hot)
14 Track 8 (Cold)
13 No Connection
12 Track 1 (Cold)
10 Track 2 (Hot)
18 Track 5 (Hot)
PIN SIGNAL
20 Track 4 (Cold)
25 Track 1 (Ground)
24 Track 1 (Hot)
23 Track 2 (Cold)
22 Track 3 (Ground)
21 Track 3 (Hot)
19 Track 5 (Ground)
ANALOG INPUT/OUTPUT
13
1
25
14
D-Sub 25 Pin Female
APPENDIX - 3
