AKAI DIGITAL DD8 Plus - Parallel (Gpio) Connections

Page 107DD8 plus Version 2.20 - September 1998

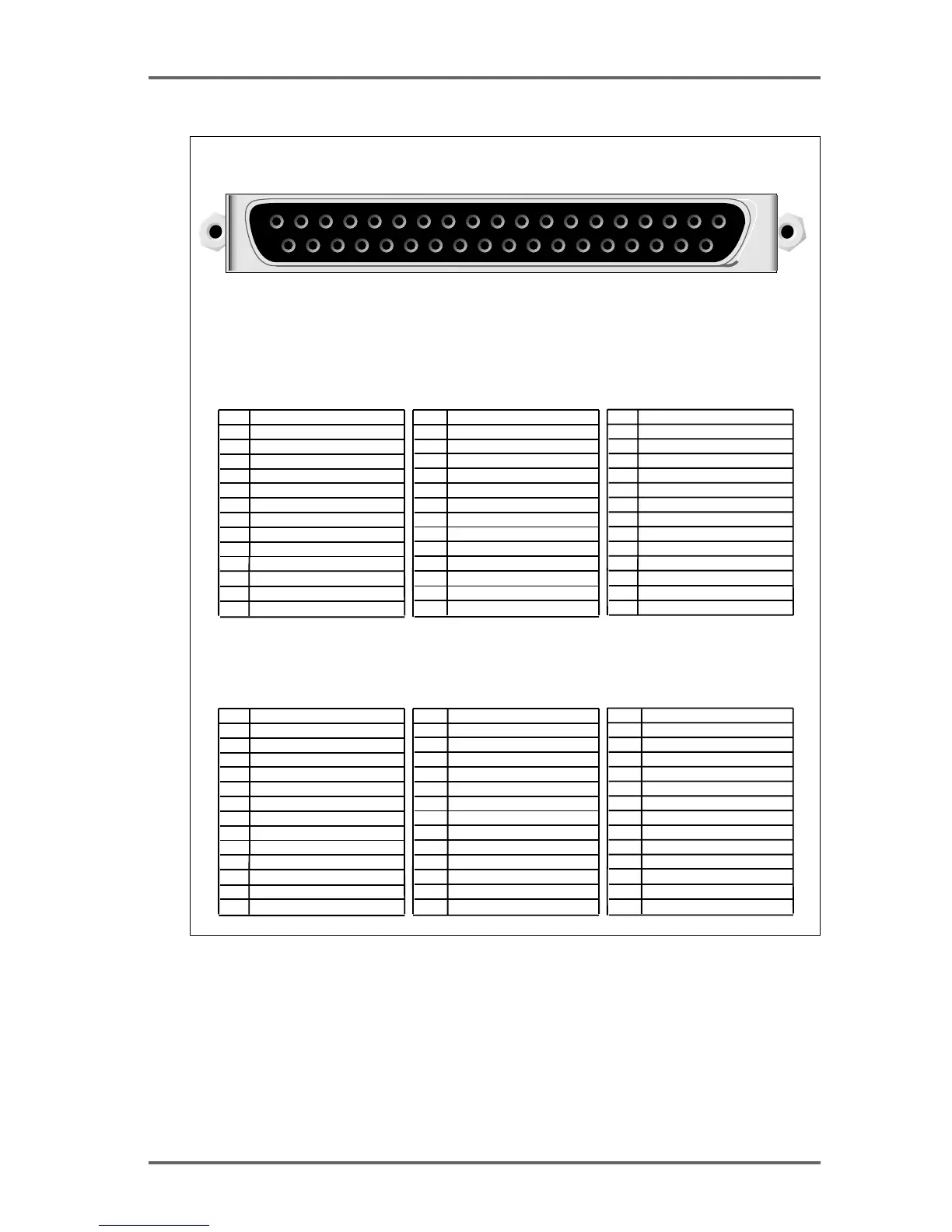

PARALLEL (GPIO) CONNECTIONS
PARALLEL (GPIO) CONNECTIONS
1
19
20
37
D-Sub 37 Pin Female
13 GPI Common
PIN SIGNAL
2 GPI 2 (In)
8 GPI 8 (In)
7 GPI 7 (In)
6 GPI 6 (In)
5 GPI 5 (In)
4 GPI 4 (In)
3 GPI 3 (In)
1 GPI 1 (In)
9 GPI 9 (In)
10 GPI 10 (In)
11 GPI 11 (In)
12 GPI 12 (In)
26 GPO 7 (Out)
PIN SIGNAL
15 GPO 12 (Out)
21 GPO 2 (Out)
20 GPO 1 (Out)
19 GPO Common
18 GPO 10 (Out)
17 GPO 9 (Out)
16 GPO Common
14 GPO 11 (Out)
22 GPO 3 (Out)
23 GPO 4 (Out)
24 GPO 5 (Out)
25 GPO 6 (Out)
PIN SIGNAL
34 GPO Pullup
28 GPO Common
33 Isolated +5v
32 Ext. Sw 1
31 Ext. Sw 0
30 No Connection
29 GPI 13 (In)
27 GPO 8 (Out)
35 GPI 14 (In)
36 GPI 15 (In)
37 GPI 16 (In)
Pin Connections (Default GPIO assignments)
13 Command Common
PIN SIGNAL
2 Rec Cmd Track 2 (In)
8 Rec Cmd Track 8 (In)
7 Rec Cmd Track 7 (In)
6 Rec Cmd Track 6 (In)
5 Rec Cmd Track 5 (In)
4 Rec Cmd Track 4 (In)
3 Rec Cmd Track 3 (In)
1 Rec Cmd Track 1 (In)
9 Play Command (In)
10 Record Command (In)
11 Stop Command (In)
12 Rehearse Cmd (In)
26 Rec Tally Track 7 (Out)
PIN SIGNAL
15 Mag/Multi Tally (Out)
21 Rec Tally Track 2 (Out)
20 Rec Tally Track 1 (Out)
19 Tally Common
18 Play Tally (Out)
17 Record Tally (Out)
16 Tally Common (Out)
14 Rehearse Tally (Out)
22 Rec Tally Track 3 (Out)
23 Rec Tally Track 4 (Out)
24 Rec Tally Track 5 (Out)
25 Rec Tally Track 6 (Out)
PIN SIGNAL
28 Tally Common
34 Tally Pullup
33 Isolated +5v
32 Ext. Switch 1
31 Ext. Switch 0
30 No Connection
29 Spare Command (In)
27 Rec Tally Track 8 (Out)
35 All Track Play Cmd (In)
36 All Rec Ready Cmd (In)
37 All Mute Cmd (In)
Pin Connections
APPENDIX - 3
