Akai AP-206

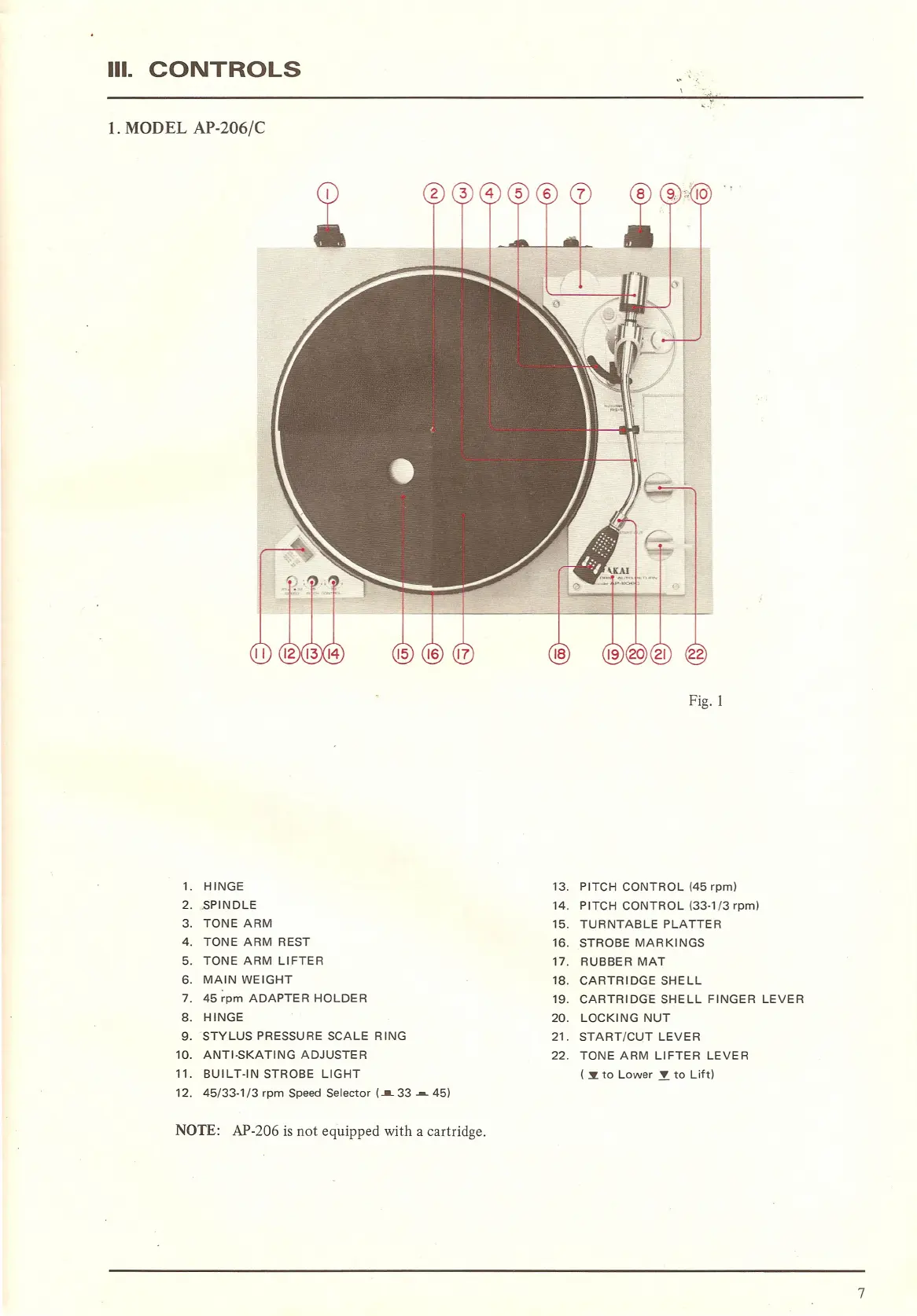

Ill. CONTROLS
1. MODEL AP-206/C
Fig. 1
1. HINGE
2.. SPINDLE
3. TONE ARM
4. TONE ARM REST
5. TONE ARM lIFTER
6. MAIN WEIGHT
7. 45 rpm ADAPTER HOLDER
8. HINGE
9. STYLUS PRESSURE SCALE RING
10. ANTI·SKATING ADJUSTER
11. BUILT·INSTROBE LIGHT
12. 45/33·1/3 rpm Speed Selector (.•. 33 .-.45)
13. PITCH CONTROL (45 rpm)
14. PITCH CONTROL (33·1/3 rpm)
15. TURNTABLE PLATTER
16. STROBE MARKINGS
17. RUBBER MAT
18. CARTRIDGE SHELL
19. CARTRIDGE SHELL FINGER LEVER
20. LOCKING NUT
21. START/CUT LEVER
22. TONE ARM lIFTER LEVER
( .Y to Lower ~ to Lift)
NOTE: AP-206 is not equipped with a cartridge.
7
