Akuvox R27 series User Manual

8

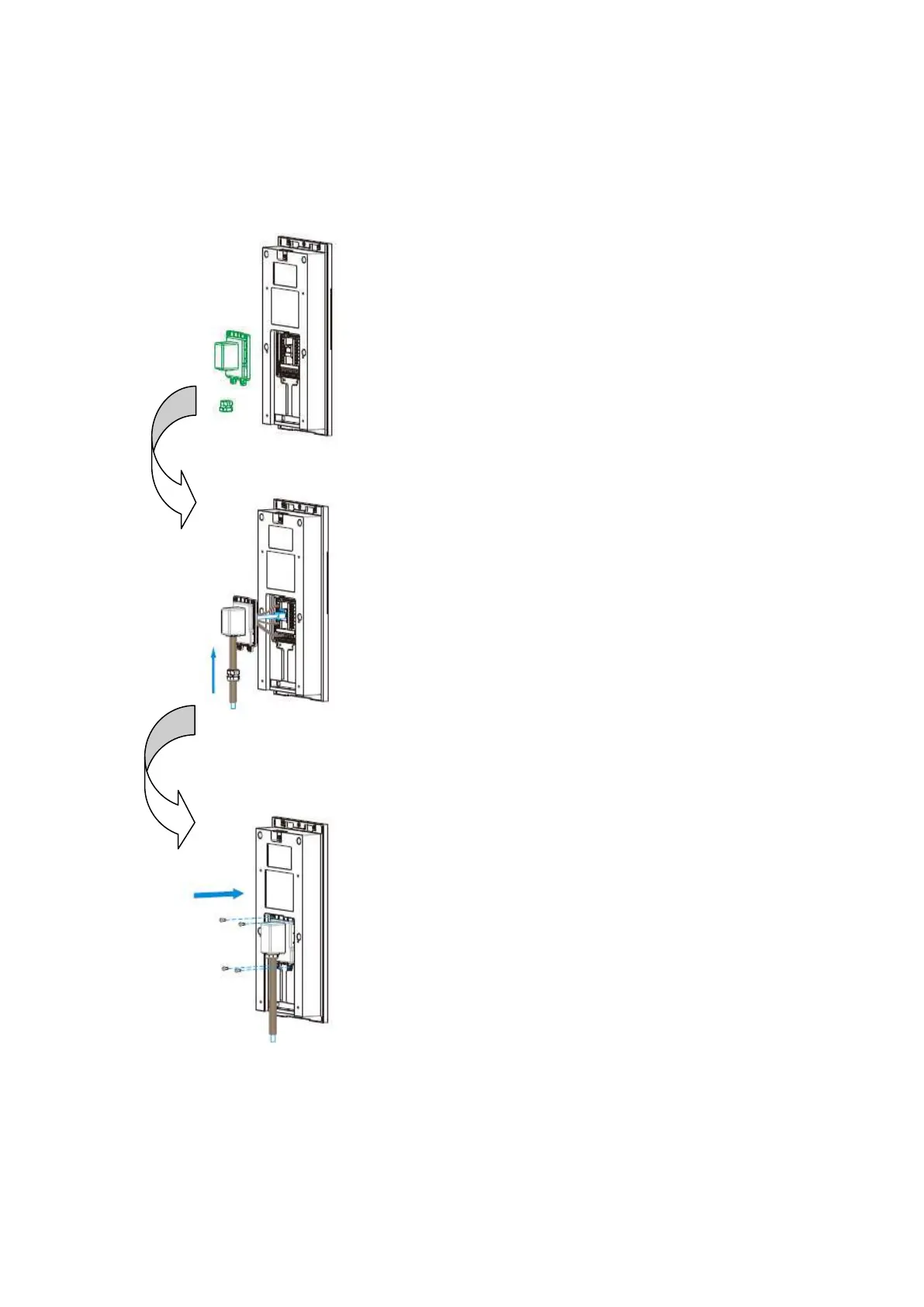

Back cover installation:
Take out the back
cover ,cable buckle and
sealing ring
Make cables go through all the
components of the bottom hole of the
back cover , connect with the contacts in
the main board. Then put the cable buckle
and sealing ring into the back cover.
Use 4 M3x5 screws to fix the back cover
