Akuvox R27 series User Manual

7

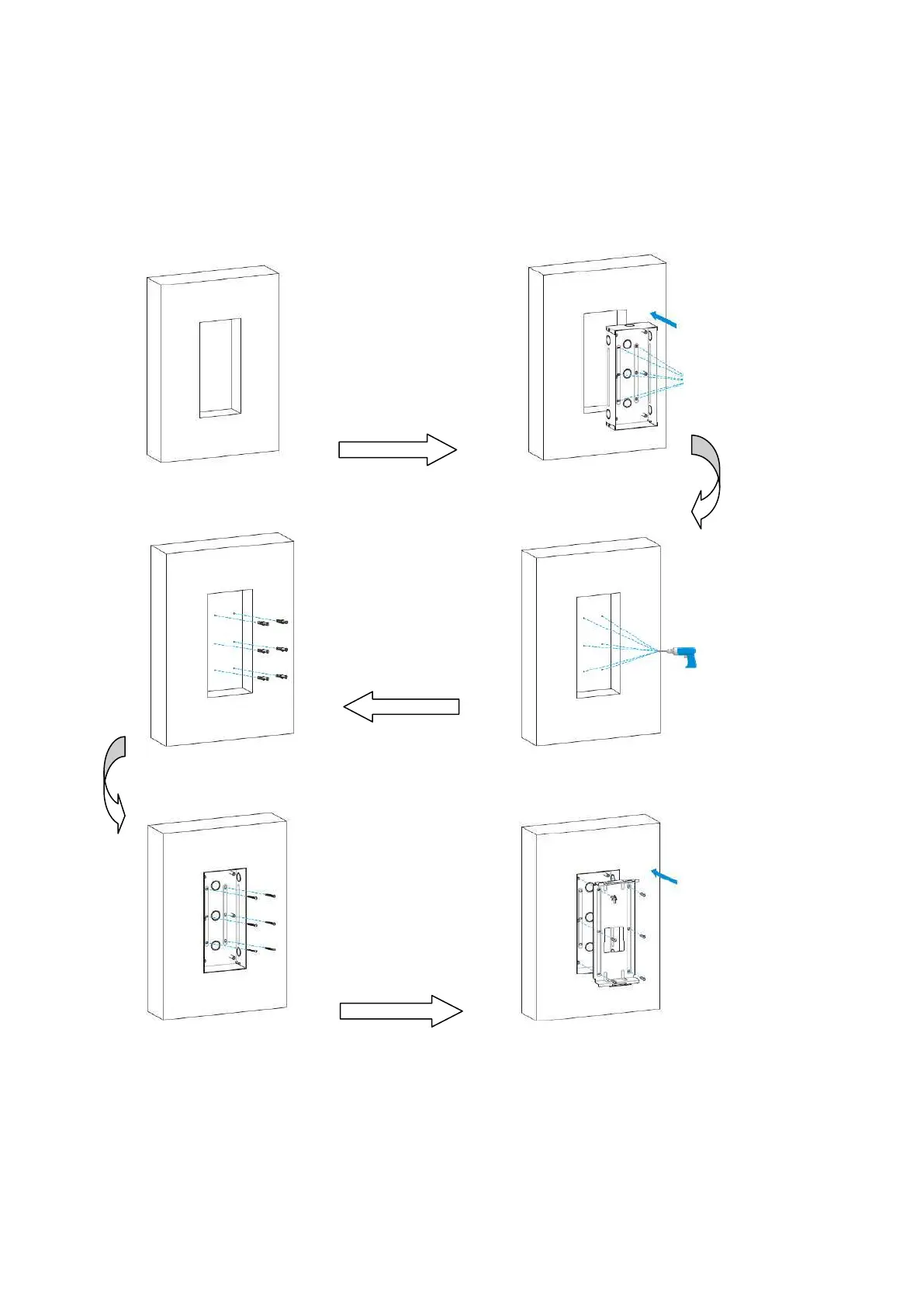

1.4. Installation
Dig out a square
hole(height*width*depth
=269.5*122.4*60.5mm)
Note: user need to make
the hole a little bigger
that can accommodate
all cables
Place the embedded box into
the hole. Use the pen to make
the cable location on the
embedded box.
Take down the
embedded box, use
5mm hand drill to make
the hole of cable
location you marked
before.
Use the pen to make
the cable location on
the embedded box.
Place the embedded box
into the square hole. Make
all cables go through the
hole of cable location. Use
6 ST4X20 screws to fix the
embedded box.
Note: the embedded box
can not over the edge of
the square hole.
Use 6 M4X10 screws to fix
the stand on the embedded
box.

Akuvox R27 series Specifications

General

RS485	Yes
Wiegand	Yes
Ingress Protection	IP65
Camera	2MP
Audio	Built-in microphone and speaker
Power Supply	PoE or 12V DC
Communication Protocol	SIP, RTSP
Ethernet	10/100 Mbps
Video Compression	H.264
Audio Compression	G.711, G.722
Operating Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
