1.2. Connector Introduction

Ethernet (POE): Ethernet (POE) connector which can provide both

power and network connection.

12V/GND: External power supply terminal if POE is not available.

WG_D0/1: Wiegand terminal for wiegand access control.

RS485A/B: RS485 terminal for automation system control (e.g.

Elevator control).

DOORA/B/C: Trigger signal input terminal (e.g. Press indoor

button to open relay).

RelayA/B/C: NO/NC Relay control terminal.

Note: The general door phone interface diagram is only for

reference.

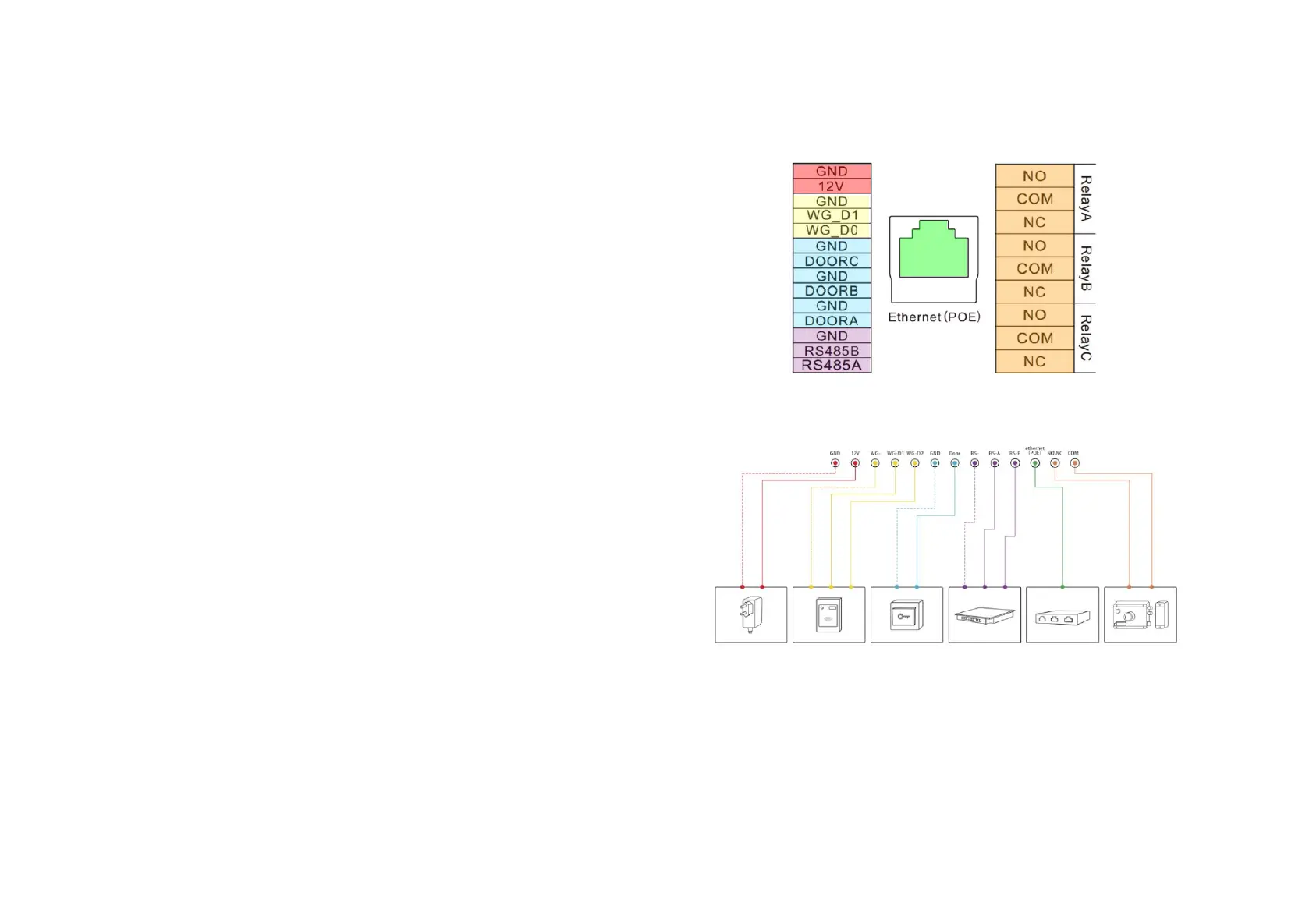

Figure 1.2-1 Connection introduction

Figure 1.2-2 General interface
