Akuvox R29 Series Admin Guide

43
3.8.6. Unlock via Exit Button
R29 series supports 3 input triggers Input A/B/C (DOORA/B/C).
Login to the website and go to the path Intercom - Input to
configure.
Input Service: To enable or disable input trigger service.
Trigger Option: To choose open circuit trigger or closed circuit
trigger. “Low” means that connection between door terminal and
GND is closed, while “High” means the connection is opened.
Door Status: To show the status of input signal.

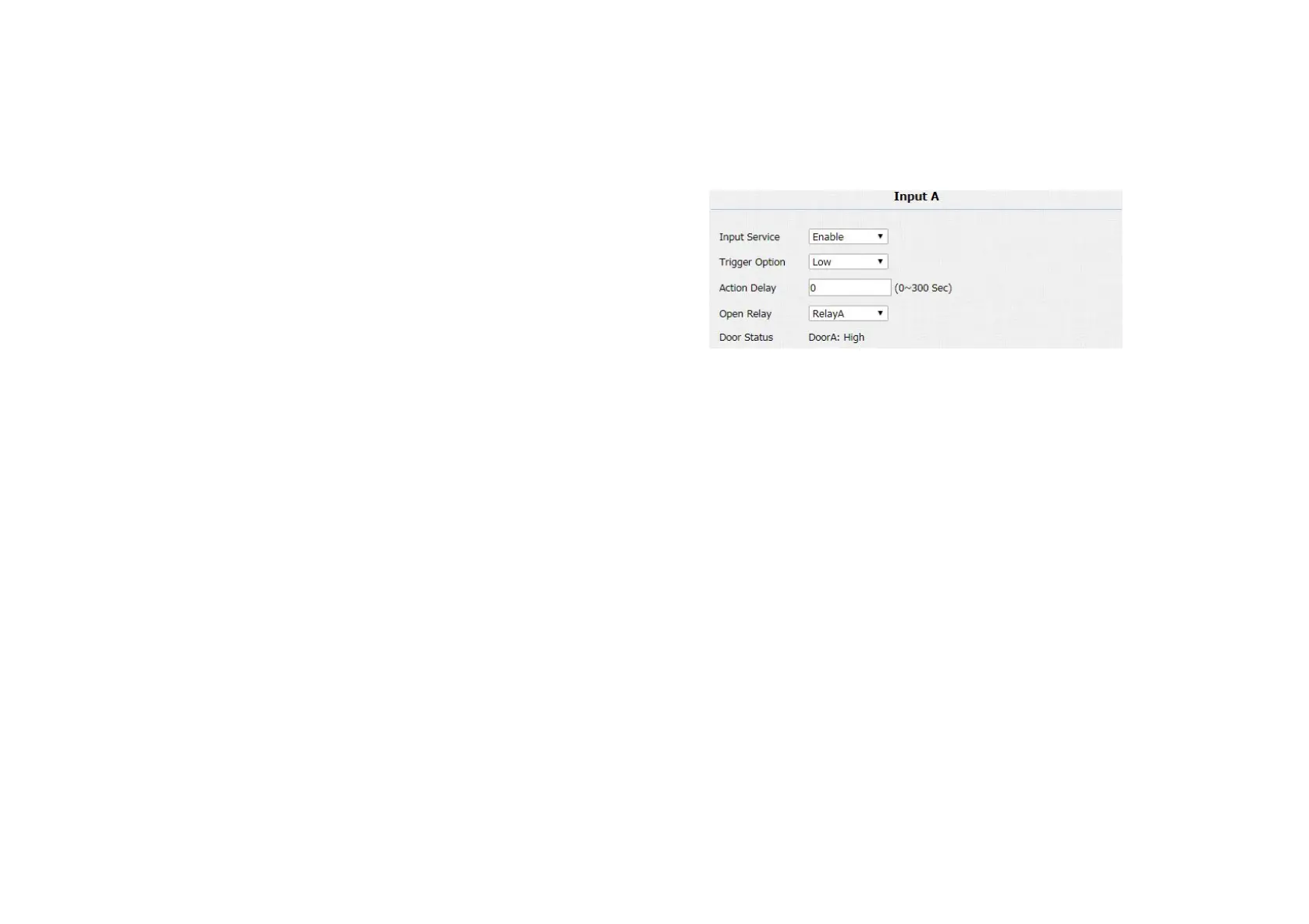

Figure 3.8.6 Input

Akuvox R29 Series Specifications

General

Power	PoE or 12V DC
Operating System	Android
RS485	Yes
Wiegand	Yes
Installation	Wall-mounted
Tamper-proof	Yes
Processor	Quad-Core
RAM	2GB
Display	7-Inch LCD
Camera	2MP
Network	Ethernet
Integration	SIP, ONVIF
Light compensation	Yes
Ethernet	10/100M
PoE	802.3af
Operating Humidity	10% to 90% (non-condensing)
Storage	8GB
Protocols	SIP, ONVIF, RTSP
