57
4.3.2. Wiegand
Login to the website and go to the path Intercom - Advanced -
Wiegand to configure.
Wiegand Type: Support Wiegand 26,34,58. The different number
means different bits.
Wiegand Mode: Input or output. Typically, when you select input,
we generally connect the wiegand input device, such as the
wiegand card reader. Or R29 series can be used as output, It is
generally used to connect the third-party Access Control, then R29
series change the card information as wiegand signal, then transfer
to the access control module.
Wiegand Input/Output Order: To make the data from wiegand
devices to be normal order or reversed order.
Wiegand Output CRC: To be compatible with the other three party
wiegand access control which do not use the standard wiegand
order, CRC can correct the order format.

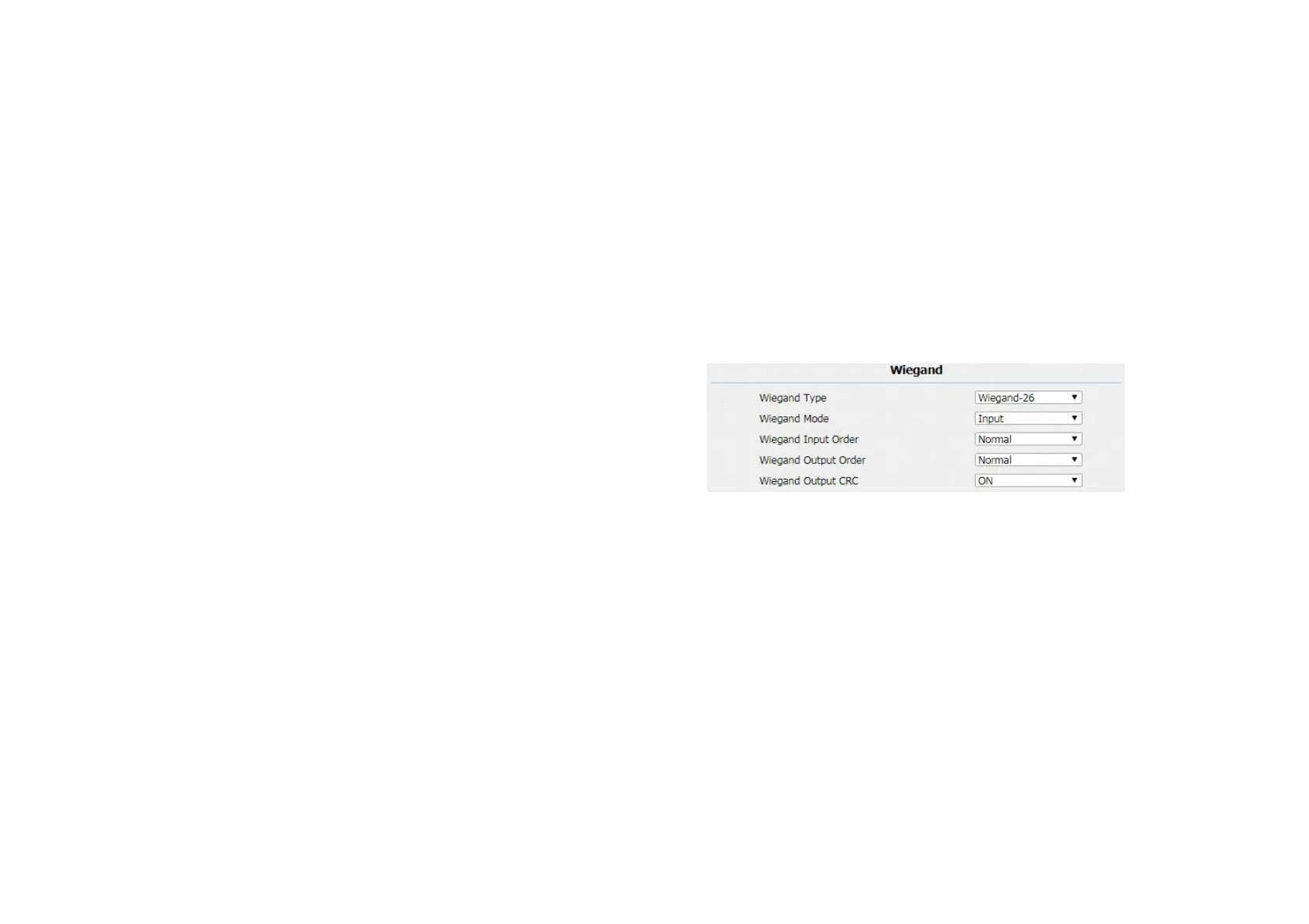

Figure 4.3.2 Wiegand
