46
4. Advanced Features
4.1. Phone Configuration
4.1.1. IR LED
The setting is for night vision, when the surrounding of R29 series
is very dark, infrared LED will turn on and R29 series will turn to
night mode to let the users see video clearly from the R29S/F.
In the phone interface, go to LED or go to the path Intercom -
Advanced - LED on web GUI, to configure the IR LED function.
Led Type: It can supports three modes - OFF, ON, AUTO. If setup
the LED type as auto, click Threshold button to sense the
intensity of the current environment.
Threshold: Click the Threshold key, it will automatic show the
current intensity or user can setup the value manually. Once the
environment intensity is darker than the predefined threshold value,
LED will be up.

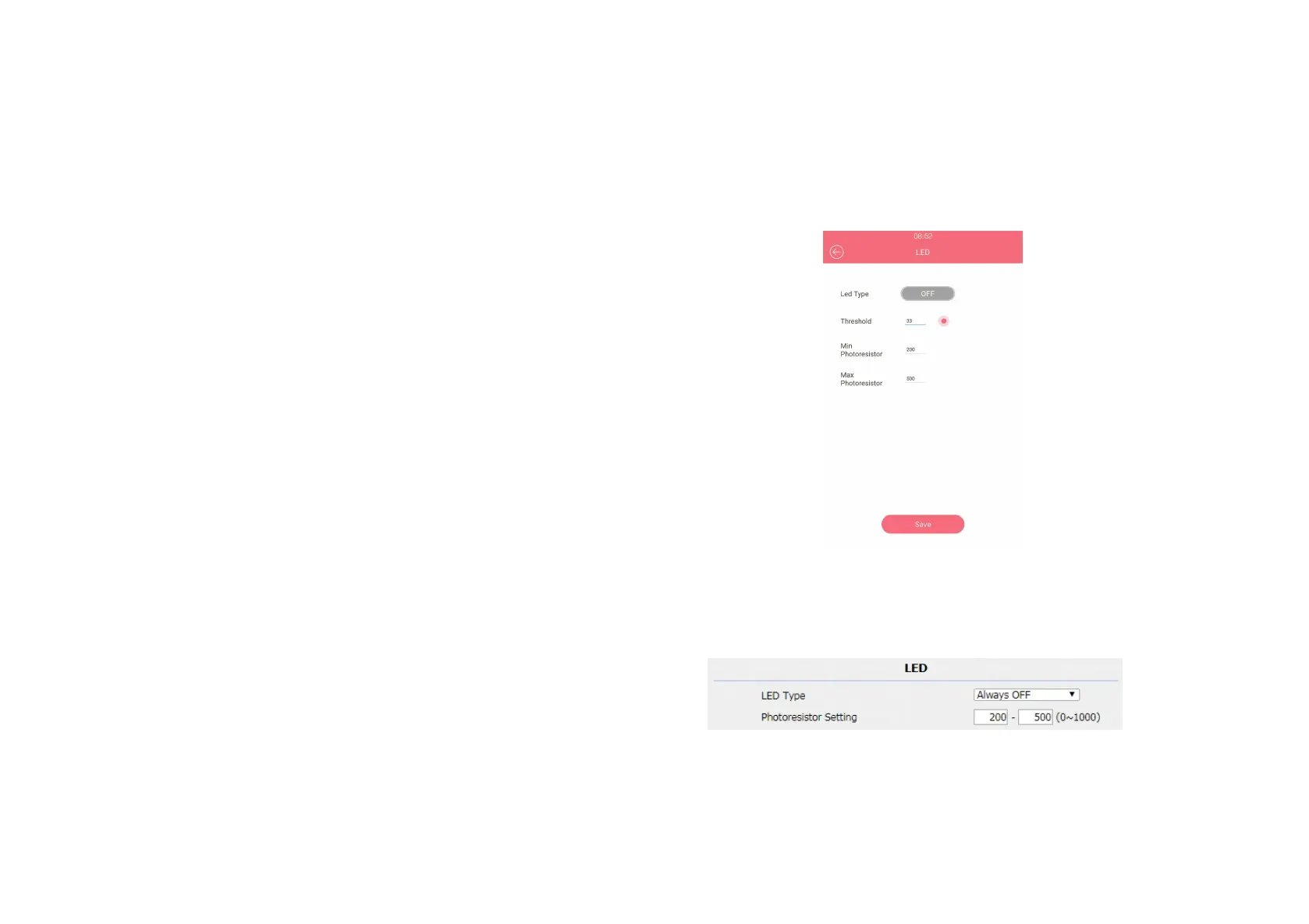

Figure 4.1.1-1 LED
Figure 4.1.1-2 LED

Table of Contents

Other manuals for Akuvox R29 Series

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Akuvox R29 Series and is the answer not in the manual?

Akuvox R29 Series Specifications

General IconGeneral
PowerPoE or 12V DC
Operating SystemAndroid
RS485Yes
WiegandYes
InstallationWall-mounted
Tamper-proofYes
ProcessorQuad-Core
RAM2GB
Display7-Inch LCD
Camera2MP
NetworkEthernet
IntegrationSIP, ONVIF
Light compensationYes
Ethernet10/100M
PoE802.3af
Operating Humidity10% to 90% (non-condensing)
Storage8GB
ProtocolsSIP, ONVIF, RTSP
