 Video Codec

R29 series supports H264 standard, which provides better video

quality at substantially lower bit rates than previous standards.

Codec Resolution: R29 series supports four resolutions: QCIF,

CIF, VGA, 4CIF and 720P.

Codec Bitrate: To configure bit rates of video stream.

Codec Payload: To configure RTP audio video profile

4.2.7. DTMF

DTMF to configure RTP audio video profile for DTMF and its

payload type.

Type: Support Inband, Info, RFC2833 or their combination.

How To Notify DTMF: Only available when DTMF type is Info.

DTMF Payload: To configure payload type for DTMF.

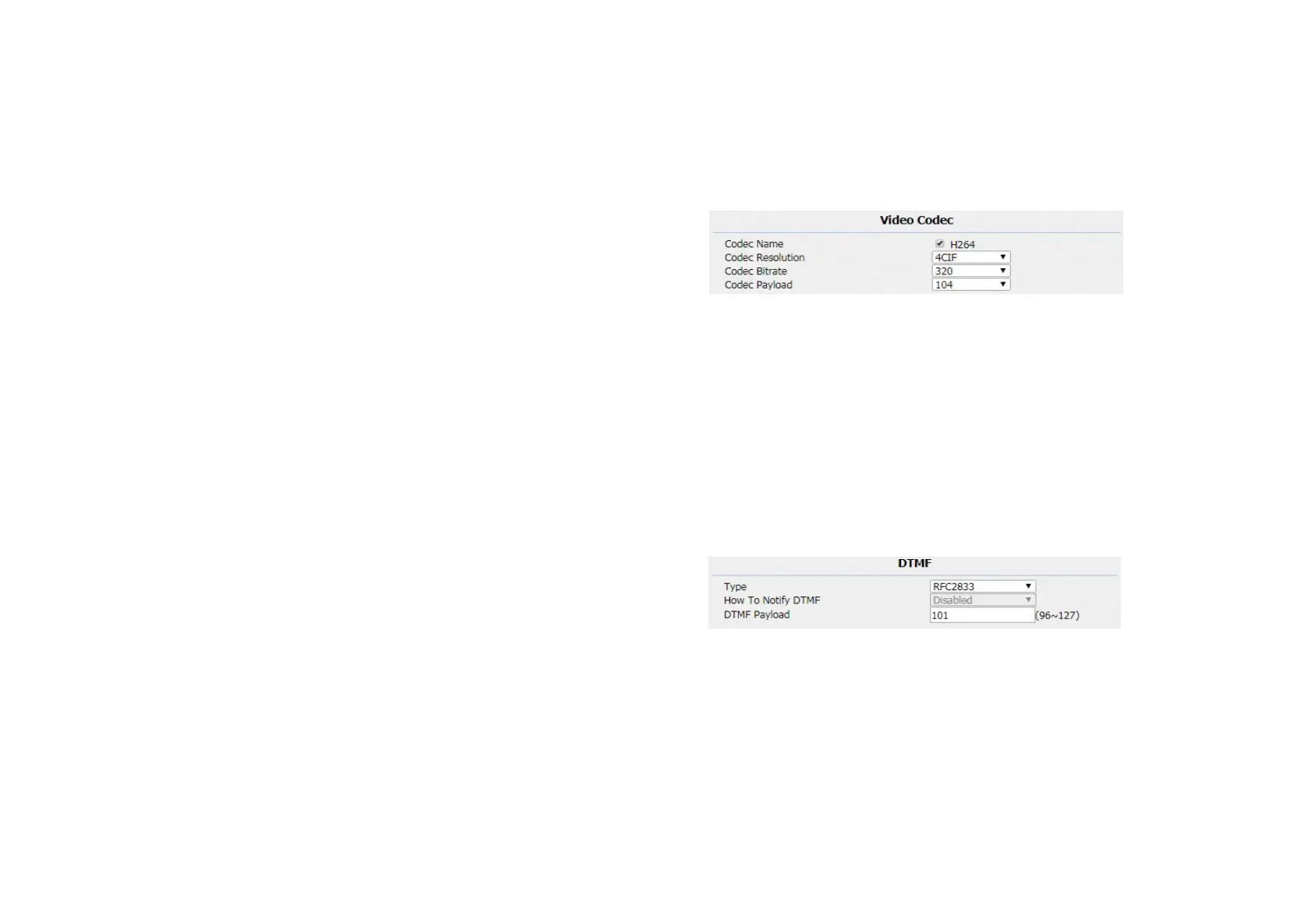

Figure 4.2.6-3 Video codec

Figure 4.2.7 DTMF
