ALH
Maintenance

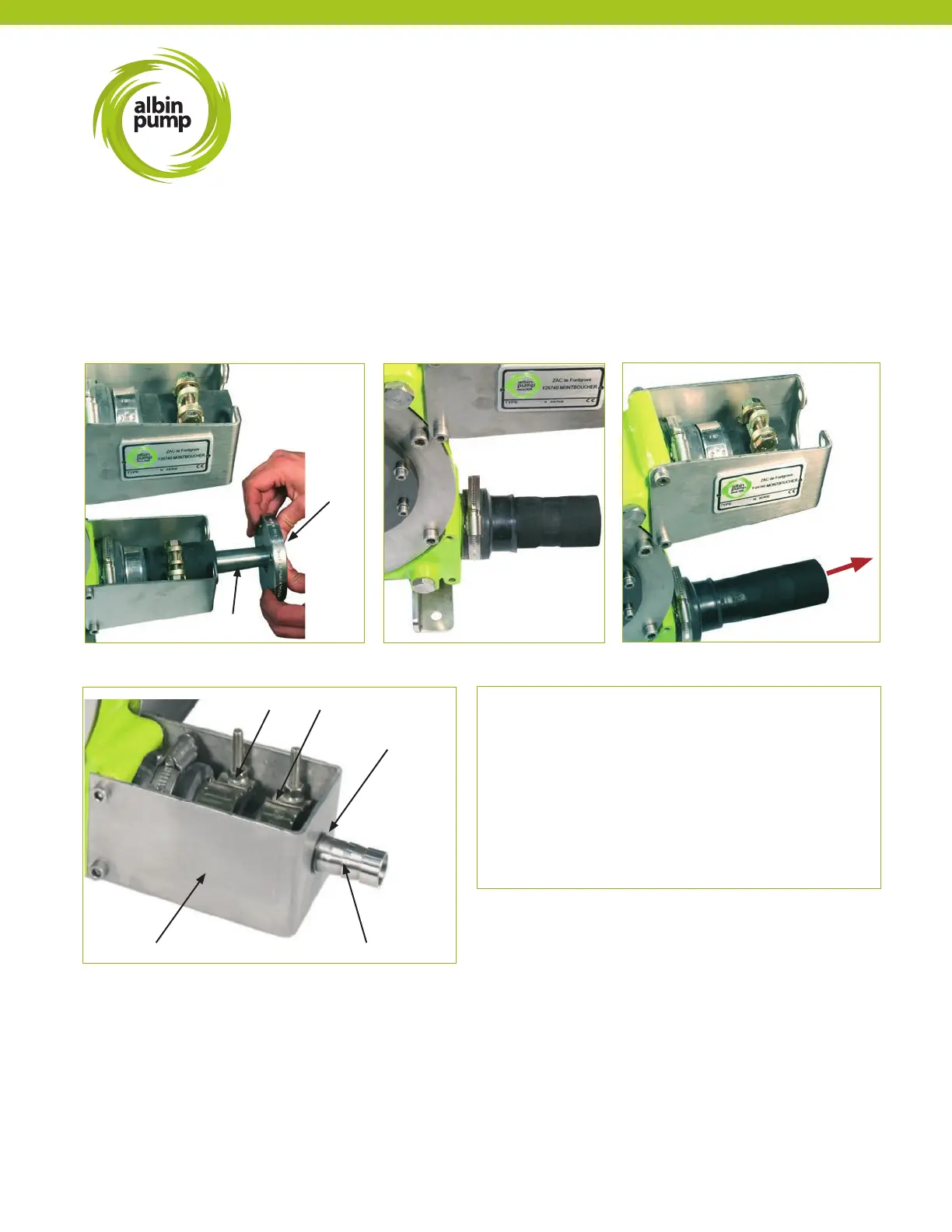

4 - At the discharge end, loosen clamps (REF 8 and 9). Extract the insert (REF 12) and remove the ange (REF 47) as well
as the brackets (REF 18) (photograph 7). Remove clamps (REF 8 and 9) (photograph 7).
5 - Jog run the motor to deliver the hose from the pump casing at the outlet side.
WARNING! The hose can come out of the pump casing very fast and cause harm.
Check that nobody is in front of the pump´s orices while removing the hose.
REF 47
REF 12
PHOTO 4
PHOTO 5 PHOTO 6
FOR MODELS ALH05, ALH10, ALH15
and ALH20:
At the pump outlet, loosen clamps (REF 8) and (REF 9).
Remove circlips (REF 24) and dismantle bracket REF
18. Extract insert (REF 12). Remove clamps (REF 8) and
(REF 9). Carefully perform these actions to avoid damag-
ing the ribbed ttings.
REF 8 REF 9
REF 24
REF 12REF 18
PHOTO 7
