Description

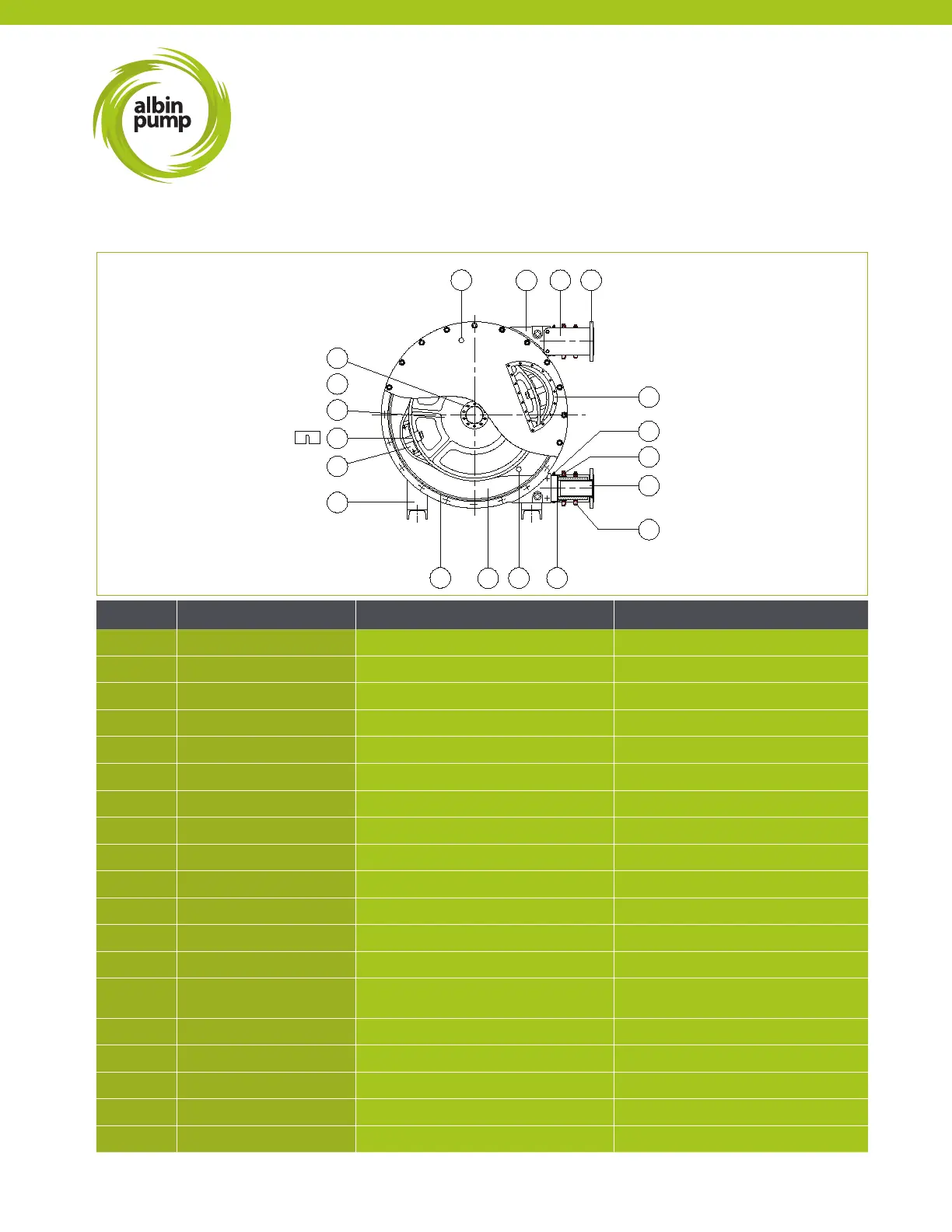

3.3.2 - PUMPS ALH25 TO ALH65
18
47
15
7
8
12
9
6
14
16
21
10
4
20
19
1
2
3
5
Part No DESIGNATION ALH25 - 32 - 40 ALHX40 - ALH50 - 65 - ALHX65
1 CASING DUCTILE CAST IRON DUCTILE CAST IRON
2 COVER ELECTROPLATED STEEL STEEL
3 WHEEL DUCTILE CAST IRON DUCTILE CAST IRON
4 SHIM GALVANIZED STEEL GALVANIZED STEEL
5 SHOE CAST IRON CAST IRON
6 SLEEVE EPDM EPDM
7 CLAMP ON CASING STAINLESS STEEL STAINLESS STEEL
8 CLAMP SLEEVE / HOSE STAINLESS STEEL STAINLESS STEEL
9 CLAMP ON HOSE STAINLESS STEEL BICHROMATE STEEL
10 SEAL COVER NITRILE NITRILE
12 INSERT STAINLESS STEEL / PPH / PVDF STAINLESS STEEL / PPH / PVDF
14 LUBRICANT GLYCERIN BLEND GLYCERIN BLEND
15 SIGHT GLASS SEAL POLYCARBONATE POLYCARBONATE
16 HOSE
NR / NBR / EPDM / NBR FOOD / VITON
® /
HYPALON ® / NR-FOOD
NR / NBR / EPDM / NBR FOOD / VITON ® /
HYPALON ® / NR-FOOD
18 BRACKET ELECTROPLATED STEEL ELECTROPLATED STEEL
19 HUB STEEL STEEL
21 FRAME STEEL STEEL
46 SIGHT GLASS SEAL NITRILE NITRILE
47 INLET/OUTLET FLANGE STAINLESS STEEL STAINLESS STEEL
